Takex VS-1000E Instruction Manual

Thank you very much for purchasing this product, please read this instruction manual to ensure correct operation.
Please Note : This sensor is designed to detect vaping/smoking and initiate an alarm; it is not a fire alarm equipment such as fire/smoke detectors.
TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God (including inductive surge by lightning),
abuse, misuse, abnormal usage, faulty installation or improper maintenance.
1

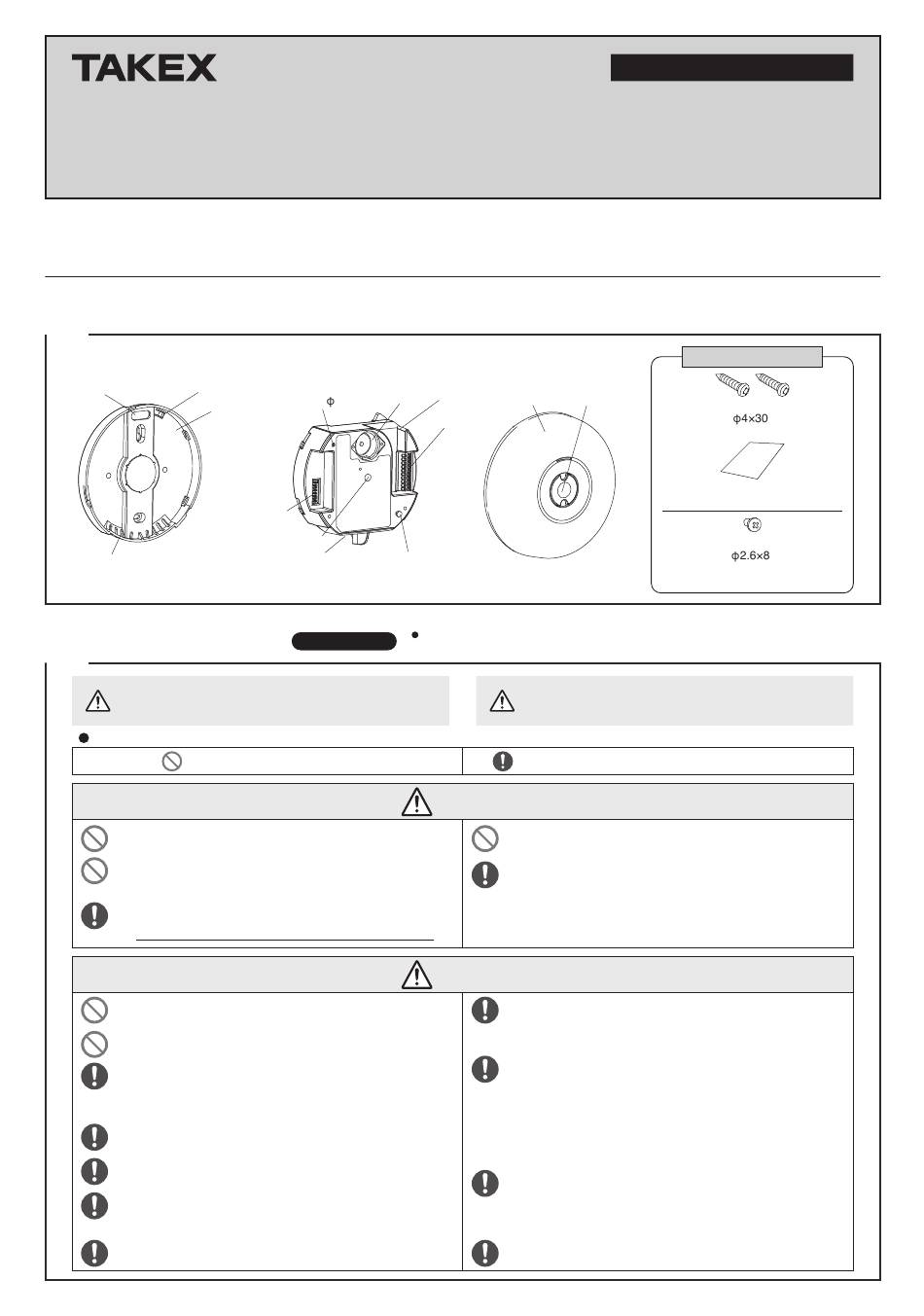

PARTS DESCRIPTION
Wiring hole Main unit lock
[Base]
Mode selector
Operation LED: Red
Detection part
2
PRECAUTIONS
This indicates the possibility of severe injury,
Warning
and even death, if ignored or a user handles
the unit incorrectly.
These precautions are categorized throughout the manual using the following symbols.
A prohibited action, you must not do.
Do not disassemble or modify this device. This may cause a fire,
electrical shock, or malfunction of the device.
Do not connect devices that exceed the indicated capacity to the
output contact of the unit. Failure to follow this may result in fire,
electric shock, and/or malfunction.
This product is a detector which outputs alarm caused by
vaping/smoking by monitoring the particle concentrations in the
air, NOT Fire Alarm equipment such as Fire/Smoke detectors.
Do not apply impact to the unit. It may cause performance
degradation.
Do not perform overhead wiring to avoid fire/electric shock.
Do not install the unit near any device which generates a strong
magnetic field. Also, the magnetism or magnetic field which this
sensor emits will give some influence to the devices nearby.
Check the situation prior to operation.
Make sure to perform a sufficient operation check on the whole
system before operation.
Make sure to seal unused holes such as wiring hole or knockout
with caulking to prevent from water ingress.
This unit is for indoor use. Do not use the unit in places subject to
water and/or high humidity. Failure to follow this may result in
malfunction if water gets into the unit.
Detection requires time for particle from the vape to reach the
sensor.
VAPE SENSOR
VS-1000E
Cover locking
Sounder [Main unit]
screw ( 2.6 x 8)
Terminals
Detection part Tamper switch
This manual describes precautions by classifying them based on degrees of danger
Be sure to observe
and damage that would be generated when using the unit incorrectly.
Warning
Caution
Instruction Manual
[Cover] Light guide
This indicates the possibility of minor injury and/or
damage to properties, or of a notification delay in your
Caution
system due to false operations and/or non-detection,
if ignored or a user handles the unit incorrectly.
An action you must do, and information you should keep in mind.
Do not touch terminals with wet hands. Failure to follow this may
result in electric shock.
If the following events occur, turn off the power of the unit
immediately, and ask the place of purchase for repair. Failure to
follow this may result in fire, electric shock, and/or malfunction.
• Smoke, abnormal odor, and/or sound are found
• Liquid such as water and/or foreign material has entered the unit
• The unit has deformed and/or damaged parts
Detection performance is greatly affected by mounting position,
installation environment and the way of vaping/smoking. Please
follow "3 INSTALLATION " and "6 OPERATION CHECK " for
appropriate operation.
Avoid acting below to prevent deteriorating the detection
performance or getting malfunction.
• Use in environment including high concentration of volatile
chemicals (ethanol, isopropanol, methanol, acetone, toluene,
etc.) or ozone
• Use in environment including strong acidic or alkaline chemicals
(HCI, H2SO4, HNO3, NH3, etc.)
• Spray onto the sensor directly
This product cannot distinguish the smoke of vape/cigarette with
vapor/smoke caused by other source.
*Followings may cause false alarms;
Steam, mist, yellow sand, dust, exhaust gas, or smoke from fuel
combustion or cooking
Dust on detection part may cause unstable operation or
malfunction. Please do cleaning in regular basis.
①
ACCESSORIES
Tapping screw
(2pcs)
Instruction manual
(this book)
Cover locking screw
(1pc)
*Included in the main unit
