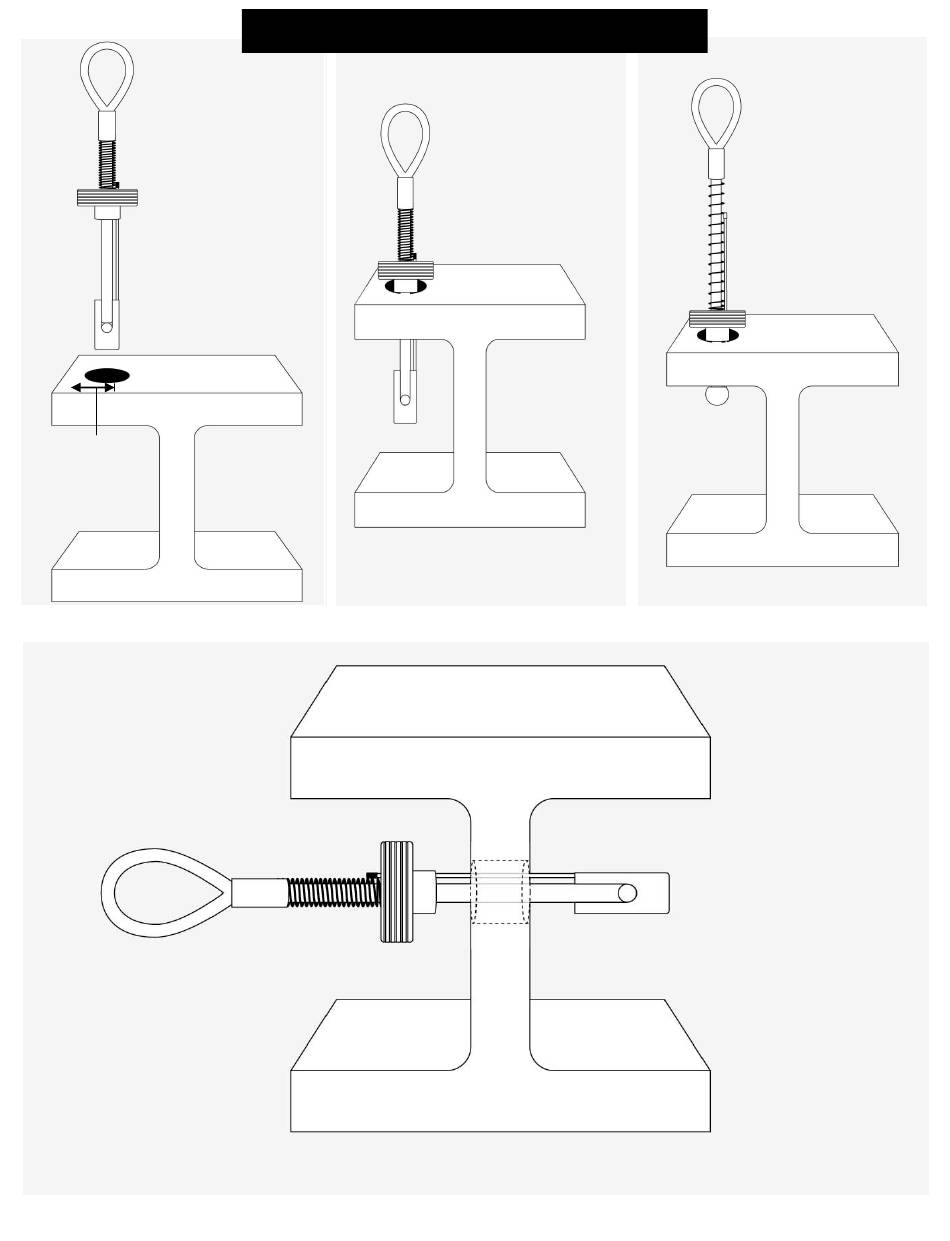

Unit in insertion position.
The center of the
hole must be
drilled at least
1-1/2" from any
edge.
Placement in Steel
Push the unit downward until the
Spring fully compresses. Pushing on
Activator Cap will force the Toggle Bar
into open position.
Only when the unit is activated in the
open position is it safe for load bearing.
See page 5 for
removal techniques.
7
