88 5050 16

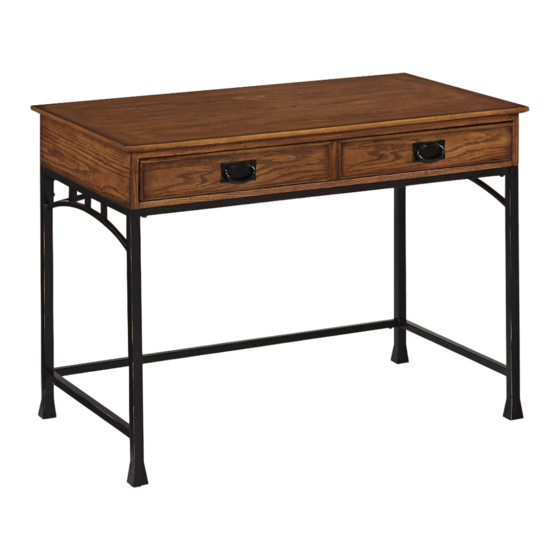

Modern Craftsman
Student Desk
Important NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top Unit
1 Pc.
D.
Front Rail
1 Pc.
E.
Middle Rail
1 Pc.
F.
Back Stretcher
1 Pc.
G.
Stretcher
1 Pc.
Hardware List
Hex Wrench
1 Pc.
Small Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver
M6x16
Tapered Head Cap Bolt
4 Pcs.(+1 extra)
M6x16
Head Cap Bolt
8 Pcs.(+1 extra)
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
B.
Side Frame
1 Pc.
H.
Drawer Front
1 Pc.
Flat Washer
8 Pcs.(+1 extra)
Spring Washer
8 Pcs.(+1 extra)
Tools recommended for assembly : Leve
C.
Side Frame
1 Pc.
M3x10
Tapered Wood Screw
6 Pcs.(+1 extra)
M4x12
Wood Screw
10 Pcs.(+1 extra)
l
