Home Styles 88 5053 95 Assembly Instructions

Home Styles 88 5053 95 Assembly Instructions

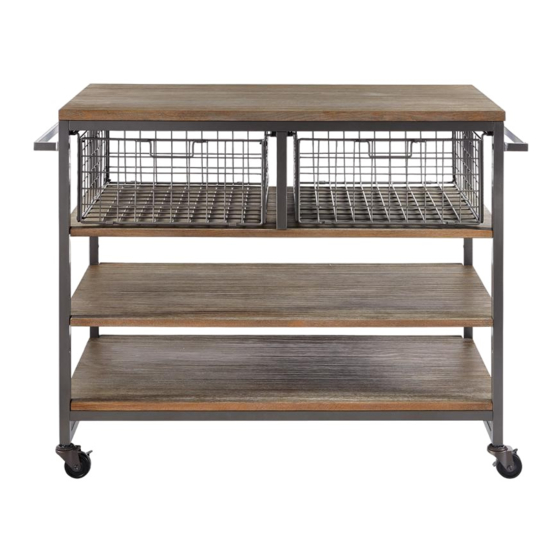

Kitchen cart

Advertisement

Quick Links

88 5053 95
Kitchen Cart
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.
Part List
A.
Top
1 Pc.
D.
Top Frame
1 Pc.
E.
Fixed Shelf
1 Pc.
H.
Shelf
1 Pc.
Hardware List
Caster
two lock
two non-lock
4 pcs.
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
Hex Wrench
Key Wrench
1 pc.
1 pc.
Small
Hex Wrench
1 pc.
B.
Side Frame
1 Pc.
F.
Stretcher
2 Pcs.
I.
Base
1 Pc.
Spring Washer
12 pcs. (+1 extra )
M x 6 38
Head Cap Bolt
(long)
12 pcs. (+1 extra )
K.
Basket
2 pcs.
(Please refer to the last page of these
instructions for drawer assembly steps.)
Flat Washer
12 pcs. (+1 extra )
M x 6 16
Head Cap Bolt
22 pcs. (+1 extra )
C.
Side Frame
1 Pc.
G.
Divider
1 Pc.
J.
Side Bar
2 Pcs.
Adjustable Pin
4 pcs. (+1 extra )
M x 6 13
Head Cap Bolt
(For Basket)
16 pcs. (+1 extra )

Advertisement

loading
Need help?

Need help?

Do you have a question about the 88 5053 95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Styles 88 5053 95

  • Page 1 Head Cap Bolt two non-lock Hex Wrench (long) Head Cap Bolt (For Basket) 4 pcs. 1 pc. 12 pcs. (+1 extra ) 22 pcs. (+1 extra ) 16 pcs. (+1 extra ) Home Styles Consumer Assistance : www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/5 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten all the Head Cap Bolts until each part is properly assembled. * Use a soft cloth between these parts and the floor.
  • Page 3 Assembly Instructions 3/5 STEP 3 Head Cap Bolt Attach Fixed Shelf (E) Head Cap Bolt (long) to unit with Head Cap Bolts. Slide Divider (G) into position and attach to unit with Head Cap Bolts (long). Head Cap Bolt (long) Locking Caster Head Cap Bolt Figure 2...
  • Page 4 Assembly Instructions 4/5 STEP 5 Turn the unit over to its’ upright position. Insert Adjustable Pins into unit at the desired level. Place Shelf (H) into position. Adjustable Pin Flat Washer Spring Washer Head Cap Bolt (long) STEP 6 Attach Side Bars (J) to unit with Head Cap Bolts (long), Spring Washers and Flat Washers.
  • Page 5 Assembly Instructions 5/5 Basket (K) STEP 1 Attach Basket Fronts (K3) to Basket Bottom (K1) with clips. (See Figure 1) Figure 1 Figure 2 STEP 2 Head Cap Bolt for Basket Attach Basket Sides (K2) to unit with clips and Head Cap Bolts for Basket. (See Figure 2) Part List Basket Bottom...
