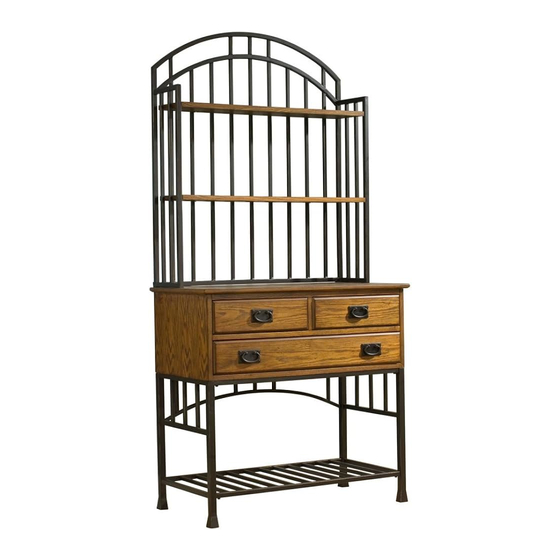

Oak Hill Hutch
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Back Frame
1 pc.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
Head Cap Bolt
4 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
B.
Side Frame
1 pc.
D.
Shelf
2 pcs.
Wood Screw (long)
Wood Screw (short)
4 pcs. (+1 extra)
8 pcs. (+1 extra)
C.
Side Frame
1 pc
Steel Plate Connecter
2 pcs.(+1 extra)
