88 5050 171

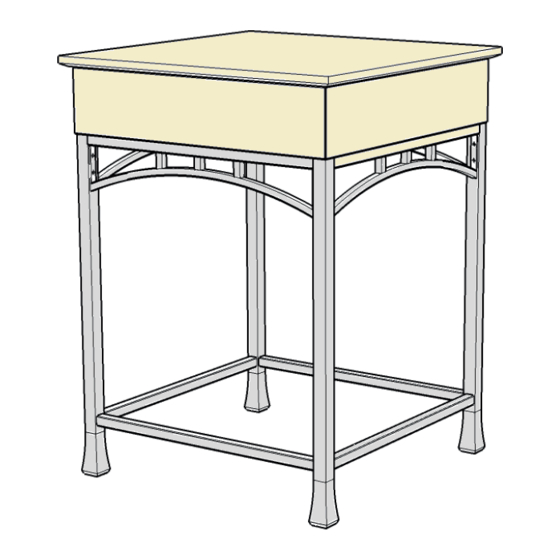

Modern Craftsman
Corner Table
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Cabinet
1 pc.
C.
Side Frame
1 pc.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
Head Cap Bolt
12 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
D.
Side Frame
1 pc.
Wood Screw
8 pcs. (+1 extra)
Tools recommended for assembly :Level
B.
Stretcher
2 pcs.
E.
Stretcher
2 pcs.
Spring Washer
12 pcs. (+1 extra )
Flat Washer
12 pcs. (+1 extra )
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles Modern Craftsman 885050171
Summary of Contents for Home Styles Modern Craftsman 885050171
- Page 1 1 pc. Small Hex Wrench Wood Screw Flat Washer 8 pcs. (+1 extra) 12 pcs. (+1 extra ) 1 pc. Tools required for assembly : Phillips screwdriver Tools recommended for assembly :Level Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 2 Assembly Instructions 2/2 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the floor.
