88 5055 942

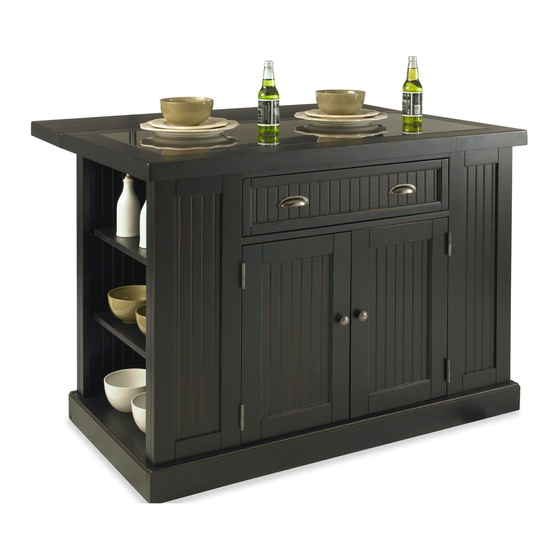

Kitchen Island
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.
Part List
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
I.
Back Stretcher
2 pcs.
K.
Back Panel
2 pcs.
Q.
R.
Plinth
Leg Support
2 pcs.
1 pc.
Hardware List
Small
Hex Wrench
Hex Wrench
1 pc.
1 pc.
M3.5x25
M6x30
Wood Screw (long)
Head Cap Bolt
for Drawer Side Part
26 pcs. (+1 extra)
8 pcs. (+1 extra)
For assembly also need carton 88 5055 941
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
E.
D.
Side Panel
Side Panel
1 pc.
1 pc.
L.
Shelf
4 pcs.
J.
Stretcher
1 pc.
M.
Shelf
1 pc.
Adjustable Pin
20 pcs. (+1 extra)
M3.5x16
Wood Screw (short)
for Drawer Base Part
6 pcs. (+1 extra)
F.
G.
Side Panel
Side Panel
1 pc.
1 pc.
N.
O.
Back Support
Back Support
1 pc.
1 pc.
P.
Base
1 pc.
Cam Lock
Pull Handle
16 pcs.(+2 extra)
2 pcs.
M4x16
Wood Screw
Cam Lock Screw
for Hinge
16 pcs.(+1 extra)
27 pcs. (+2 extra)
Tools recommended for assembly : Level
H1.
Front Rail
1 pc.
H2.
Front Rail
1 pc.
S.
Plinth
2 pcs.
T.
Door
Door
1 pc.
1 pc.
V.
Drawer
1 pc.
Knob
2 pcs.
Machine Screw
6 pcs.
U.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5055 942
Summary of Contents for Home Styles 88 5055 942
- Page 1 27 pcs. (+2 extra) 26 pcs. (+1 extra) 8 pcs. (+1 extra) For assembly also need carton 88 5055 941 Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance : www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the floor.
- Page 3 Assembly Instructions 3/6 STEP 2 Attach Side Panel (B) to Base (P) with Head Cap Bolts. Attach Side Panels (D) and (E) to Base (P) with Head Cap Bolts. Head Cap Bolt Cam Lock STEP 3 Attach Front Rail (H1) and Front Rail (H2) to unit with Cam Locks.
- Page 4 Assembly Instructions 4/6 Cam Lock STEP 4 Attach Side Panel (C) to unit with Head Cap Bolts. Attach Side Panels (F) and (G) to unit with Head Cap Bolts and Cam Locks. Head Cap Bolt Head Cap Bolt STEP 5 Attach Plinths (Q) to unit with Head Cap Bolts.
- Page 5 Assembly Instructions 5/6 Wood Screw STEP 6 Attach Back Supports (N) and (O) to unit with Wood Screws into pre-drilled holes. Cam Lock Figure 1 Figure 2 STEP 7 Attach Top (A) to unit with Cam Locks. Adjustable Pin Attach Doors (T) and (U) to unit by sliding the door lift hinges into the side panels lift hinges. (See Figure 1) Attach Knobs to Doors (T) and (U) with Machine Screws.
- Page 6 Assembly Instructions 6/6 Drawer STEP 1 Attach V1 to V2 and V3, using Phillips screwdriver and long wood screws (4X), (Figure 1) tighten halfway. Attach V1 to V2 and V4 using MAKE SURE ROLLER long wood screws (4X), IS ON THE BACK tighten halfway.
