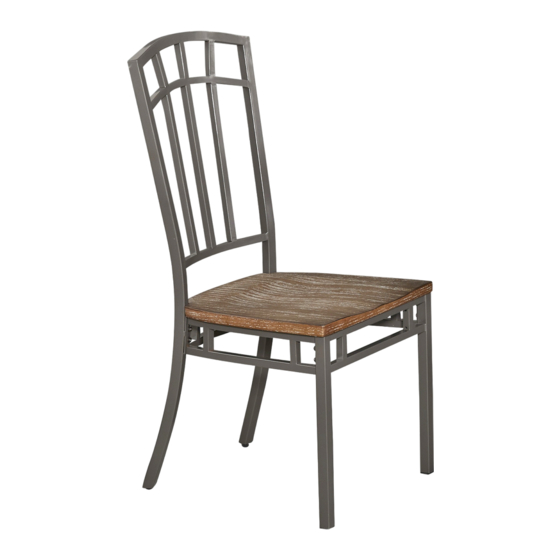

Chair
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.
Part List
B.
Side Frame
1 pc.
D.
Front Frame
1 pc.
Hardware List
Hex Wrench
1 pc.
Tools required for assembly : Level
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
C.
Side Frame
1 pc.
M6x16
Small Hex Wrench
Head Cap Bolt
1 pc.
8 pcs. (+1 extra)
A.
Seat
1 pc.
Spring Washer
8 pcs. (+1 extra)
E.
Back Frame
1 pc.
M4x16
Flat Washer
Wood Screw
8 pcs. (+1 extra)
4 pcs. (+1 extra)
