88 5050 06

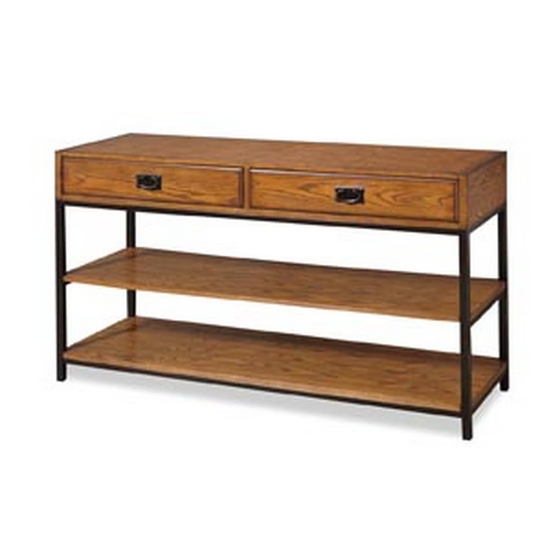

Modern Craftsman
Media Console
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Cabinet
1 pc.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
D.
Side Frame
2 pcs.
Head Cap Bolt
24 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
B.
Stretcher
4 pcs.
C.
Stretcher
1 pc.
E.
Shelf
2 pcs.
Spring Washer
24 pcs. (+1 extra )
Flat Washer
24 pcs. (+1 extra )
Tools recommended for assembly : Level
Wood Screw
27 pcs.(+1 extra)
Advertisement
Table of Contents
Related Manuals for Home Styles Modern Craftsman Media Console 88 5050 06
Summary of Contents for Home Styles Modern Craftsman Media Console 88 5050 06
- Page 1 Flat Washer Wood Screw 24 pcs. (+1 extra) 24 pcs. (+1 extra ) 27 pcs.(+1 extra) 1 pc. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 2 Assembly Instructions 2/4 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the floor.
- Page 3 Assembly Instructions 3/4 STEP 3 Slide Shelf (E) into position. Attach with Head Cap Bolts, Spring Washers and Flat Washers into the pre-drilled holes. Attach with 10X Wood Screws. Wood Screw STEP 4 Remove the drawers, then place Cabinet (A) upside down on a soft cloth.
- Page 4 Assembly Instructions 4/4 STEP 6 Remove the Pull Handles that are installed on the inside of the drawers and re-install them on the outside of the drawer. STEP 7 Turn the unit over to its’ upright position. Slide the drawers into position. To level the unit, adjust the adjustable levelers on the bottom of unit.
