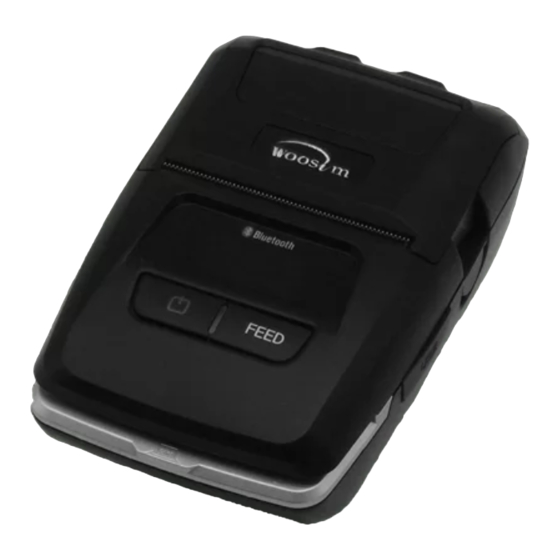

- Page 1 WSP-L240 MODEL (2inch Mobile Printer) Rev. 1.0 All specifications are subjected to change without notice http://www.woosim.com...
- Page 2 Copyright ⓒ2020 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc. Trademark a registered trademark of Woosim Systems Inc.
- Page 3 WSP-L240 Rev. 1.0 Introduction The WSP-L240 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of WSP-L240 printer are as follows: Pocket size (80 x 121.3 x 47.4mm) ...
- Page 4 WSP-L240 Rev. 1.0 Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ●...
-
Page 5: Table Of Contents
WSP-L240 Rev. 1.0 CONTENTS 1. Outline..................................6 1.1. Model classifications............................6 1.2 Product Part Number System ......................... 7 1.3. Specifications..............................8 2. Setting up the printer.............................. 9 2.1. Printer & Accessories ............................9 2.2. Printer Features .............................. 10 2.3. -
Page 6: Outline
WSP-L240 Rev. 1.0 WSP-L240 Model Interface C1 : USB/Bluetooth (Standard) Power None : USB 5V http://www.woosim.com... -
Page 7: Product Part Number System
WSP-L240 Rev. 1.0 Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA Wireless LAN RS-485 None Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. -
Page 8: Specifications
WSP-L240 Rev. 1.0 Item Specifications Print method Direct thermal line printing - Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16 Character size - KOR : 24X24(16X24) / CHN, JPN : 24X24 - Font A : 32cpl / Font B : 42cpl / Font C : 48cpl... -
Page 9: Setting Up The Printer
WSP-L240 Rev. 1.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery Pack Thermal roll paper WSP-L240 ▼ OPTIONAL USB cable <Type C> Belt clip http://www.woosim.com... -
Page 10: Printer Features
WSP-L240 Rev. 1.0 ▶ Part Name http://www.woosim.com... -
Page 11: Dimensions
WSP-L240 Rev. 1.0 http://www.woosim.com... -
Page 12: Replacing Paper Roll
WSP-L240 Rev. 1.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. -
Page 13: Power Supply
WSP-L240 Rev. 1.0 The following specification is requested for Power supply. Battery Charger : USB 5V Avoid using power supply which its power capacity of power current is extremely high. Warning : ● Before installing or removing the battery pack, ensure the printer is OFF. -
Page 14: Recharging The Battery Pack
WSP-L240 Rev. 1.0 For recharging the battery pack, install the battery pack in the printer. Insert the USB connector of the printer. (Use cable of USB C type.) NOTE : ● While charging the printer, turn off the printer power. -
Page 15: Set Operation Mode
WSP-L240 Rev. 1.0 In keeping on pressing the Feed and Power button simultaneously until after the OLED Backlight(Blue) blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer Table 2) FEED button : changing Printer MODE status. - Page 16 WSP-L240 Rev. 1.0 [Example] The defaults of the printer are : USB / Density Low / Mark No Use / Sensor High / PWDN 5 min slp If a user wants to modify the defaults with Bluetooth / Density High / Mark Use / Sensor Low / PWDN No Use ...
-
Page 17: Memory Switch Table
WSP-L240 Rev. 1.0 Mode Option Etc. Mode Option Etc. No use Communi- USB(Pro) 1min Sleep cation Bluetooth 2min Sleep Port (Pro) 3min Sleep Bluetooth (iAP) 4min Sleep Bluetooth Power 5min Sleep Down Density Medium 1min Off High 2min Off No use... -
Page 18: Interface
WSP-L240 Rev. 1.0 The WSP-L240 printer has a USB interface and is connected by means of a USB “C” type socket. In the following table, the signals present on the USB C type socket are listed: Pin No. Name Function... -
Page 19: Bluetooth
WSP-L240 Rev. 1.0 Category Specification Bluetooth Spec. Classic(V3.0) and BLE(V4.1) / Class2 (10m) Frequency band 2400~2483 MHz Protocol L2CAP, RFCOMM, SDP Profile GATT, GAP, SDAP, SPP ▶ Check the direction of the magnetic stripe and read the card. ▶ Holding the card as shown above, please pass at a steady speed. -
Page 20: Using The Printer
WSP-L240 Rev. 1.0 BUTTON - FEED Button Use to feed paper continuously. - POWER Button : ① When of 5 or more seconds presses and power comes to on or off. ② After pressing the POWER and the FEED button simultaneously, if the ERROR lamp 5 turn signals POWER button is converted with MODE functions. -
Page 21: The Self Test
5. Self-test will be finished automatically and turned to the standby status. ※ In case printer does not work properly, please contact Woosim customer service center. Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a screw driver. -
Page 22: Consumable Parts
WSP-L240 Rev. 1.0 Type : Thermal Paper Paper width : 58mm Paper thickness : 60±5㎛ Outer diameter : Ø40mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended. -
Page 23: Revision History
WSP-L240 Rev. 1.0 Date Version Comments Feb. 03. 2020 Initialize http://www.woosim.com...
