- Page 1 WSP-i250 MODEL (2inch Industrial Printer) Rev. 1.0 WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice http://www.woosim.com...
- Page 2 WSP-i250 2inch Industrial printer operator’s manual. Copyright ⓒ2011 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.

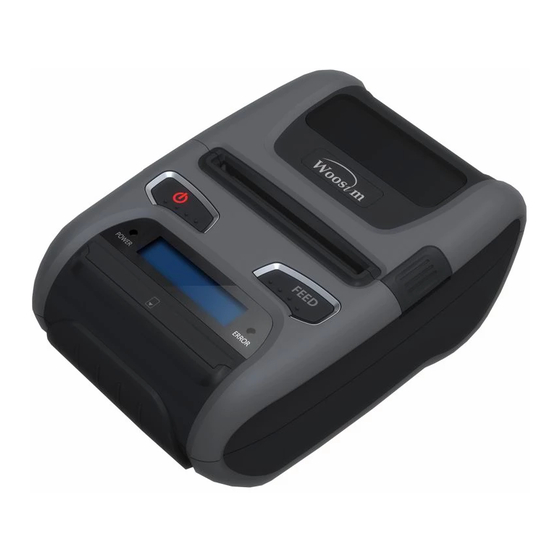

- Page 3 WSP-i250 Rev. 1.0 ¦ Introduction The WSP-i250 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc. The general features of WSP-i250 printer are as follows: Compact size (92.12×140.56×59.75mm) Light weight (406.5g) for true mobility [standard]...
-
Page 4: Operating Precautions
WSP-i250 Rev. 1.0 ¦ Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas. - Page 5 WSP-i250 Rev. 1.0 ¦ Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 6: Table Of Contents
WSP-i250 Rev. 1.0 CONTENTS 1. Outline............................8 1.1. Model classifications......................8 1.2 Product Part Number System ..................8 1.3. Specifications........................9 2. Setting up the printer......................11 2.1. Printer & Accessories ..................... 11 2.2. Printer Features ....................... 12 2.3. Dimensions ........................13 2.4. - Page 7 WSP-i250 Rev. 1.0 5.1. Control panel........................27 5.2. The self test ........................28 5.3. Using the Accessory ....................... 28 5.3.1. Using the Shoulder strap ..................28 5.3.2. Using the Belt clip ....................29 6. Consumable Parts........................30 6.1. Recommended paper..................... 30 6.2.
-
Page 8: Outline
WSP-i250 Rev. 1.0 WSP-i250 Model Interface A1 : UART/Bluetooth (Standard) Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA Wireless LAN RS-485 None Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1... -
Page 9: Specifications
WSP-i250 Rev. 1.0 Item Specifications Print method Direct thermal line printing Characters per line 42cpl (MAX) Character size Eng: 9*24dots, 12*24dots Kor: 16*24dots, [24*24dots] Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Optional Characters Tukish, Greek, Japanese, Persian, Latin9 and Others upon request. - Page 10 WSP-i250 Rev. 1.0 Item Specifications Smart Card Module ISO 7816 Compliant (EMV level 1 Certified) / [option] T=0, T=1 support / 1 SAM (Security Application Module) 128×32 Dots FSTN (Blue LED Backlight Battery Rechargeable 7.4V DC, 1400mAh/1800mAh/2200mAh (Li-ion) Battery duration...
-
Page 11: Setting Up The Printer
WSP-i250 Rev. 1.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Communication cable Battery charger adaptor WSP-i250 Battery Pack Thermal roll paper Belt clip ▼ OPTIONAL... -
Page 12: Printer Features
WSP-i250 Rev. 1.0 ▶ Part Name http://www.woosim.com... -
Page 13: Dimensions
WSP-i250 Rev. 1.0 http://www.woosim.com... -
Page 14: Replacing Paper Roll
WSP-i250 Rev. 1.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. -
Page 15: Power Supply
WSP-i250 Rev. 1.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A high. Avoid using power supply which its power capacity of power current is extremely NOTE : ● Before installing or removing the battery pack, ensure the printer is OFF. -
Page 16: Recharging The Battery Pack
WSP-i250 Rev. 1.0 For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger to the charge connector of the printer. NOTE : ● While charging the printer, turn off the printer power. ● Do not remove the battery during charging. -
Page 17: Set Operation Mode
WSP-i250 Rev. 1.0 In keeping on pressing the Feed and Power button simultaneously until after the ERROR lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode. (refer Table 2) l FEED button : changing Printer MODE status. -
Page 18: Gap/Hole Sensor Setting
WSP-i250 Rev. 1.0 When you press FEED button once. ® You will see present DENSITY mode in the LCD. (Density low) ® Press POWER Button twice. And then the density has set to Density high. When you press FEED button once. - Page 19 WSP-i250 Rev. 1.0 OPTION MODE Bluetooth WLAN UART(RS-232C) UART(RS-232C) Protocol UART Protocol UART Communication (RS-232C) (RS-232C) Port WLAN Bluetooth Protocol Bluetooth Protocol WLAN 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit...
-
Page 20: Confirmation Of The Wireless-Lan Information
WSP-i250 Rev. 1.0 MODE OPTION Medium1 Sensor Medium2 High Auto No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 2 > MAC address which is set to the printer can be printed out in pressing the Power... -
Page 21: Interface
WSP-i250 Rev. 1.0 The WSP-i250 printer has a UART(RS-232C or TTL) or USB interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed: ①... - Page 22 WSP-i250 Rev. 1.0 ② USB Pin No. Name Function DATA “-” DATA “+” Ground NOTE : ● When data receiving, when it removes the Communication cable, it loses a data. http://www.woosim.com...
-
Page 23: Bluetooth
WSP-i250 Rev. 1.0 Category Specification Bluetooth Spec. Bluetooth Ver2.1 + EDR / Class2 (10m) Frequency Range 2.4GHz ISM BAND Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed. Parity bit No parity Fixed. Stop bit 1 Stop bit Fixed. -
Page 24: Card Reading & Smart Card Insert
WSP-i250 Rev. 1.0 & & Insert the Smart Card into slot with micro chip facing down. Please take notice that Magnetic Stripe Card should be swapped in direction of arrow. Card can be read in both http://www.woosim.com... -
Page 25: Smart Card Module
WSP-i250 Rev. 1.0 Contact Smart Card Reader Module for ISO/IEC-7816 Support Asynchronous Protocol T=0,T=1 Smart Card Connection Short Circuit Current Limitation 6KV ESD Protection on whole Smart Card Interface Connector : Friction Type with Smart Card presence detection 1 SAM (Security Application Module) EMV Level 1 Certified http://www.woosim.com... -
Page 26: Communication Protocol Sequence
WSP-i250 Rev. 1.0 Host Command Module Execution Response 500ms timeout Host Command Command Command Module Command is Executio Host Command Command Error Module CheckSumEr Executio http://www.woosim.com... -
Page 27: Using The Printer
WSP-i250 Rev. 1.0 u BUTTON - FEED Button : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - POWER Button: ① When of 5 or more seconds presses and power comes to on or off. -
Page 28: The Self Test
WSP-i250 Rev. 1.0 The self test procedure will check most of the printer functions. For self test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly. -
Page 29: Using The Belt Clip
WSP-i250 Rev. 1.0 Following the instruction of the arrow, please put the belt clip in the hole and turn and fix the screw to the right by using a thing like a coin. Afterward, you can use it like the picture below. -
Page 30: Consumable Parts
WSP-i250 Rev. 1.0 Type : Thermal Paper Paper width : 58mm Paper thickness : 60±5 ㎛ Outer diameter : Ø50mm or less Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has Near end mark printing on its near end is recommended. -
Page 31: Revision History
WSP-i250 Rev. 1.0 Date Version Comments Mar. 08. 2011 Initialize http://www.woosim.com...
