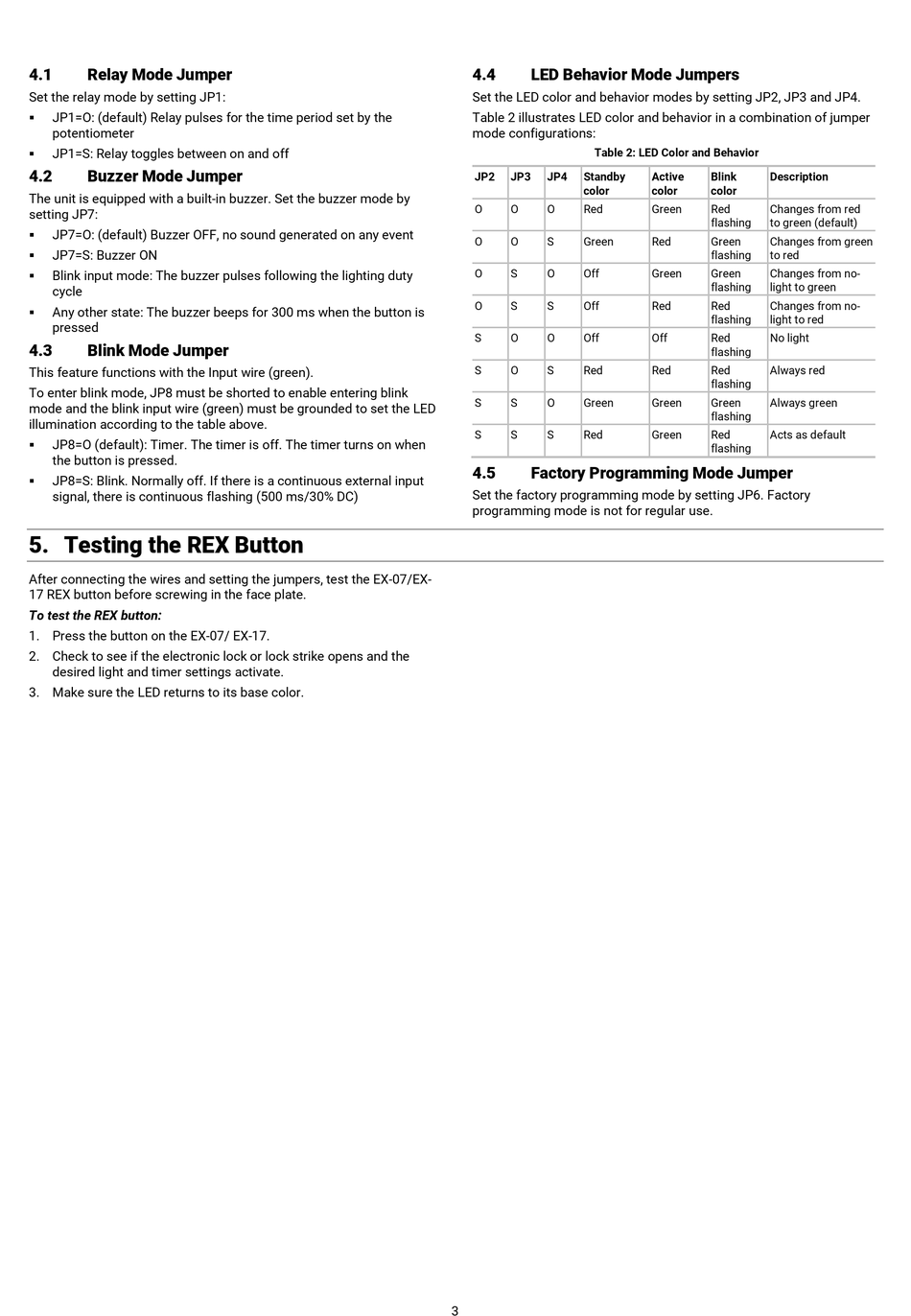

Rosslare EX-07 Installation Manual page 3

4.1 Relay Mode Jumper
Set the relay mode by setting JP1:
JP1=O: (default) Relay pulses for the time period set by the

potentiometer
JP1=S: Relay toggles between on and off

4.2 Buzzer Mode Jumper
The unit is equipped with a built-in buzzer. Set the buzzer mode by
setting JP7:
JP7=O: (default) Buzzer OFF, no sound generated on any event

JP7=S: Buzzer ON

Blink input mode: The buzzer pulses following the lighting duty

cycle
Any other state: The buzzer beeps for 300 ms when the button is

pressed
4.3 Blink Mode Jumper
This feature functions with the Input wire (green).
To enter blink mode, JP8 must be shorted to enable entering blink
mode and the blink input wire (green) must be grounded to set the LED
illumination according to the table above.
JP8=O (default): Timer. The timer is off. The timer turns on when

the button is pressed.
JP8=S: Blink. Normally off. If there is a continuous external input

signal, there is continuous flashing (500 ms/30% DC)
5. Testing the REX Button
After connecting the wires and setting the jumpers, test the EX-07/EX-
17 REX button before screwing in the face plate.
To test the REX button:
1. Press the button on the EX-07/ EX-17.
2. Check to see if the electronic lock or lock strike opens and the
desired light and timer settings activate.
3. Make sure the LED returns to its base color.
4.4 LED Behavior Mode Jumpers
Set the LED color and behavior modes by setting JP2, JP3 and JP4.
Table 2 illustrates LED color and behavior in a combination of jumper
mode configurations:
Table 2: LED Color and Behavior
JP2 JP3 JP4 Standby
color
O O O Red
O O S Green
O S O Off
O S S Off
S O O Off
S O S Red
S S O Green
S S S Red
4.5 Factory Programming Mode Jumper
Set the factory programming mode by setting JP6. Factory
programming mode is not for regular use.
3
Active Blink Description
color color
Green Red Changes from red
flashing to green (default)
Red Green Changes from green
flashing to red
Green Green Changes from no-
flashing light to green
Red Red Changes from no-
flashing light to red
Off Red No light
flashing
Red Red Always red
flashing
Green Green Always green
flashing
Green Red Acts as default
flashing
