Arrange For Help; Inspect For Visible Shipping Damage; Figure 3-4. System Dimensions (4500C) - Hologic QDR 4500 Technical Manual

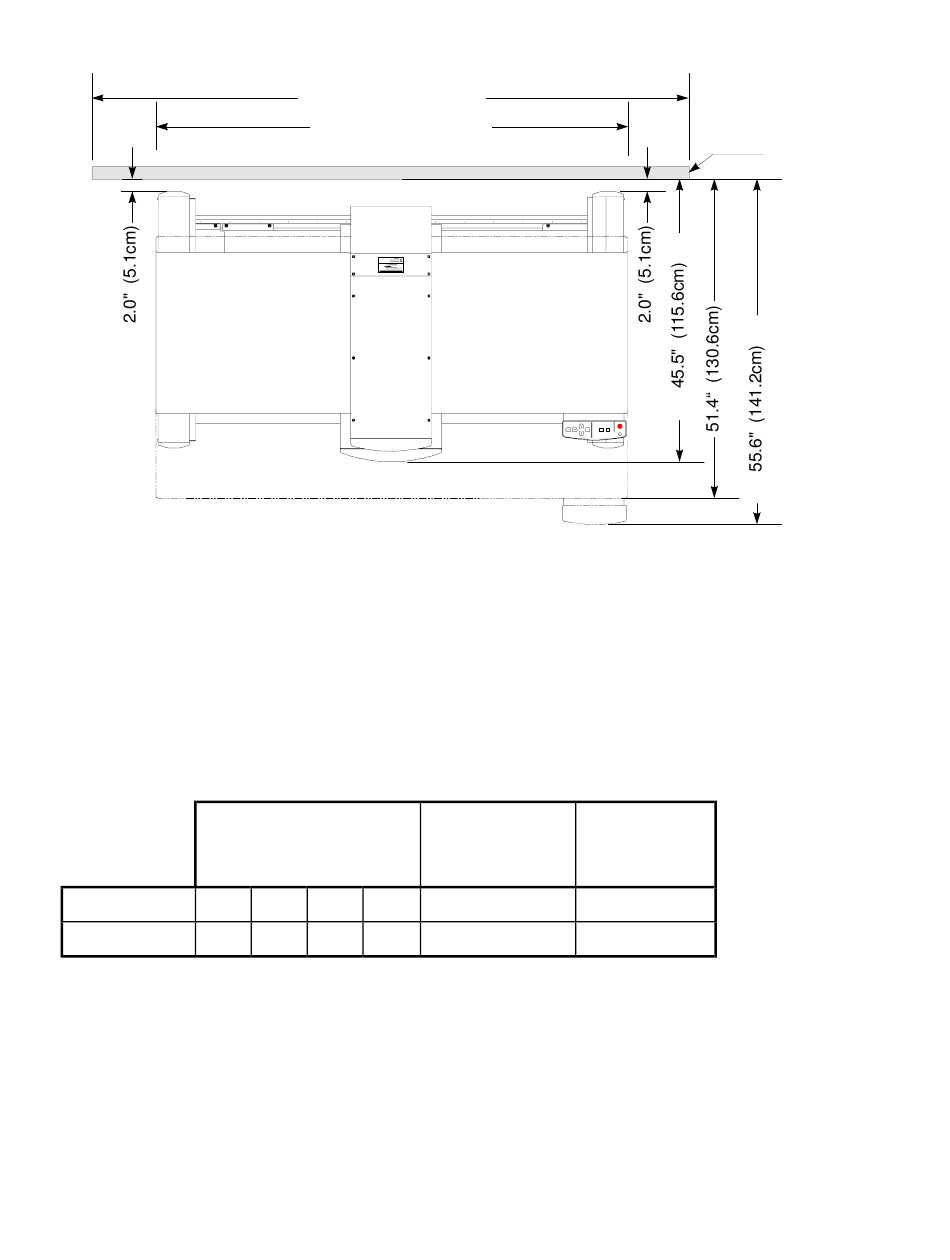

Figure 3-4. System Dimensions (4500C)

The Operator's Console may be up to 50ft (15.24m) away from the Scanner, but since leakage
and scatter radiation levels are extremely low, it can be safely located in the same room with the
QDR 4500 itself.

ARRANGE FOR HELP

Moving the unit to its final location requires at least two able-bodied people to direct the
machine, hold doors and lift heavy parts. The following table gives some representative weights.
QDR 4500 Model
A
Weight (lb) 800
(kg) 365

INSPECT FOR VISIBLE SHIPPING DAMAGE

Inspect the exteriors of all crates and boxes for shipping damage, and bring any damage
discovered to the attention of the customer's Shipping/Receiving department before proceeding.
3-4
®
QDR 4500 Technical Manual
96.0" (243.8cm)
76.0" (193.0cm
SL W C
700 700 660
320 320 300
Computer,
Printer, Power
Monitor Console
100 100
45
Wall
45
