Room And Doorway Size; Figure 3-1. Room Layout (4500A) - Hologic QDR 4500 Technical Manual

ROOM AND DOORWAY SIZE

Use the following table to prepare for the move. Also see Figure 3-1 through Figure 3-4 for more
details.
Model Minimum Room Size
SL, C 2.44m (8.0ft) x 2.44m(8.0ft)
A, W 2.44m (8.0ft) x 3.05m (10.0ft)
19.8" (50.2cm)
35.0" (88.9cm)
3-2
®
QDR 4500 Technical Manual
79.6" (201.9cm)
51.0" (129.6cm)
CHAIR

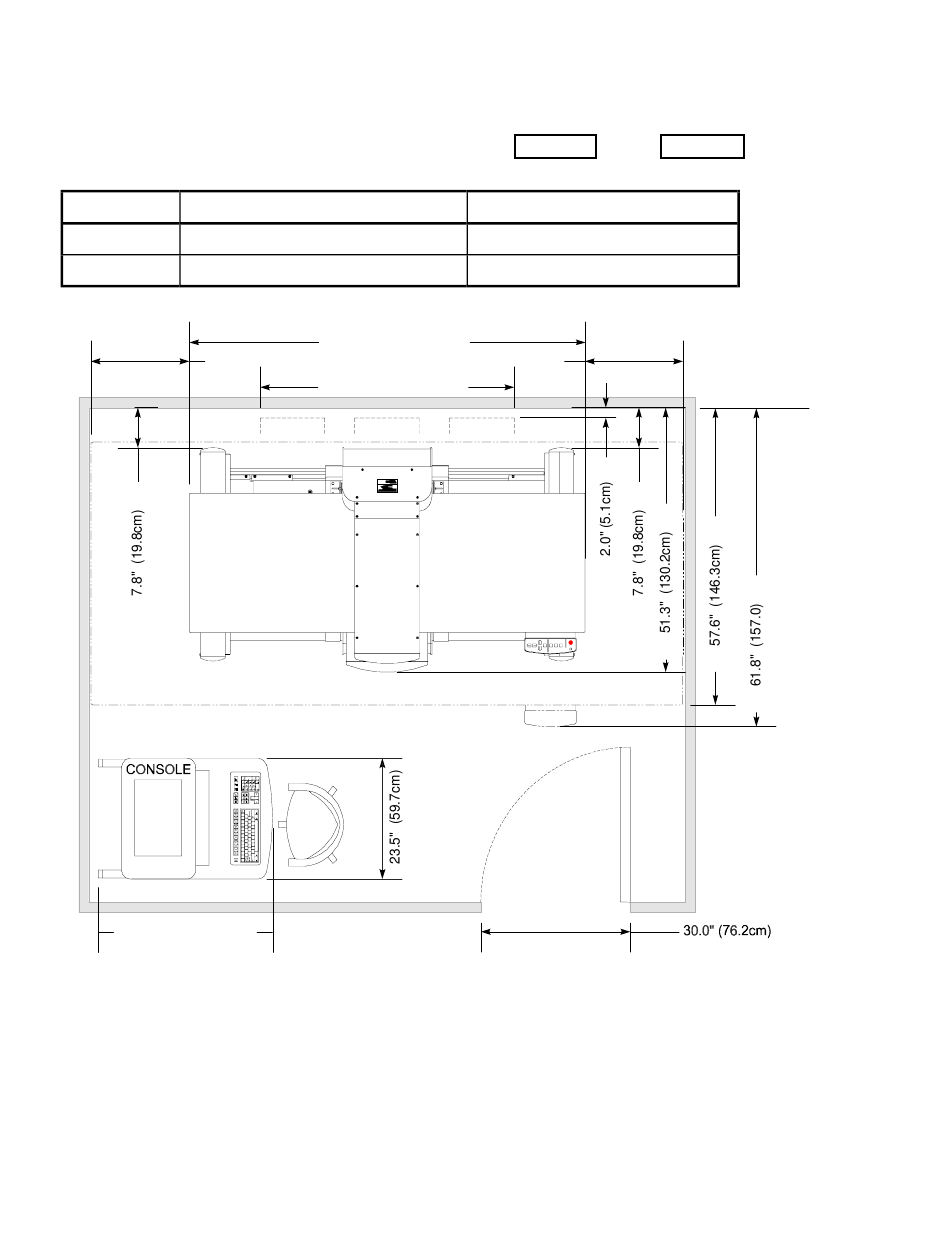

Figure 3-1. Room Layout (4500A)

Minimum Doorway Width
0.77m (30.0in)
0.77m (30.0in)
19.8" (50.2cm)
