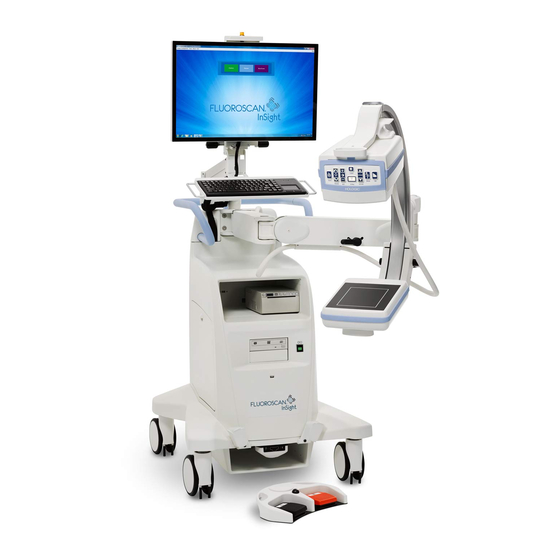

InSight
®
FD Mini C-arm
User Guide
MAN-04858 Revision 006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLUOROSCAN InSight FD Mini C-arm and is the answer not in the manual?

Questions and answers

Related Manuals for Hologic FLUOROSCAN InSight FD Mini C-arm

Summary of Contents for Hologic FLUOROSCAN InSight FD Mini C-arm

  • Page 1 InSight ® FD Mini C-arm User Guide MAN-04858 Revision 006...
  • Page 3 InSight ® Mini C-arm User Guide Part Number: MAN-04858 Revision 006 July 2021...
  • Page 4 © 2019-2021 Hologic, Inc. This manual was originally written in English. Hologic, Fluoroscan, InSight, MegaView and associated logos are trademarks and/or registered trademarks of Hologic, Inc. and/or its subsidiaries in the U.S. and/or other countries. Any other product and company names mentioned herein are the trademarks of their respective owners.

  • Page 5: Table Of Contents

    InSight FD Mini C-arm User Guide Table of Contents 1 Indications for Use........................1 2 Radiation Safety ........................2 2.1 General ..............................2 2.2 Radiation Dose and Dose Rate ......................2 2.3 X-ray Shielding ..........................3 3 Regulations for X-ray Equipment ..................3 3.1 United States Federal and State Regulations.................
  • Page 6 InSight FD Mini C-arm User Guide 12 Configuring the Application ....................23 12.1 System Configuration User Interface ..................23 12.2 System ............................. 23 12.3 DICOM Send Options........................26 12.3.1 DICOM Print Options ......................28 12.4 Worklist Configuration......................... 30 12.4.1 Users ............................32 12.5 Physician Preferences........................
  • Page 7 InSight FD Mini C-arm User Guide List of Figures Figure 1: InSight FD Mini C-arm ....................1 Figure 2: System Main Label .......................5 Figure 3: X-ray System Warning....................5 Figure 4: Electric Shock Warning....................6 Figure 5: Field of View .........................6 Figure 6: Wireless Footswitch ....................17 Figure 7: Transport Position Knob ...................19 Figure 8: Rear Casters.........................20 Figure 9: Adjusting the C-arm....................21...
  • Page 8 InSight FD Mini C-arm User Guide Figure 31: Study for Review ......................55 Figure 32: Review Images Screen .....................57 Figure 33: Patient Details ......................60 Figure 34: VISTA Details......................60 Figure 35: Enhanced Displayed Image Screen................61 Figure 36: Tools Menu........................62 Figure 37: Image Export from Review Screen ................64 Figure 38: Export Images ......................64 Figure 39: Tool Menu Export.....................65 Figure 40: Export Images from Tool Menu ................65...
  • Page 9 InSight FD Mini C-arm User Guide List of Tables Table 1 Symbols ..........................6 Table 2 Safety Hazards ........................8 Table 3 X-ray Head Control Panel ...................14 Table 4 Keyboard Controls .......................15 Table 5 Footswitch Pedal Functions ..................17 Table 6 Conditioning Schedule ....................22 Table 7 System Configuration User Interface ................23 Table 8 System Page ........................25 Table 9 DICOM Send Options Page ..................26...
  • Page 10 InSight FD Mini C-arm User Guide Table 31 Configure Image Area Menu ..................50 Table 32 Image Acquisition Screen, Button Functions ............51 Table 33 Tool Set ........................52 Table 34 Select Reference Images Window, Section Descriptions ........54 Table 35 Select Reference Images Window, Button Functions ..........55 Table 36 Select Study for Review Window, Section/Field Descriptions ......56 Table 37 Select Study for Review Window, Button Functions ..........56 Table 38 Review Screen, Button Functions ................57...

  • Page 11: Indications For Use

    InSight FD Mini C-arm User Guide Indications for Use 1 Indications for Use The InSight™ FD System is a Mini C-arm Fluoroscopic Imaging System designed to provide physicians with general fluoroscopic visualization of a patient, including, but not limited to surgical orthopedic and podiatry use, critical and emergency care procedures, and light anatomy imaging situations.

  • Page 12: Radiation Safety

    X-rays in the primary beam. However, as the dose rate is much less, scatter is usually expressed in mR/hour (1 mR = 0.01 mGy). Dose and scatter data for the InSight FD system is available from Hologic upon request. MAN-04858 Revision 006...

  • Page 13: X-Ray Shielding

    InSight FD Mini C-arm User Guide Regulations for X-ray Equipment 2.3 X-ray Shielding The scattered radiation from the InSight FD system is low compared to many other radiological devices, and the requirement to wear protective lead aprons and/or attenuating gloves is governed by applicable facility policy.

  • Page 14: Canadian Regulations

    This instrument is supplied with hardware and software accessories that are needed for safe and reliable operation. Additional accessories may be used to perform optional procedures. Do not use any accessories with this instrument other than those approved by Hologic. MAN-04858 Revision 006...

  • Page 15: Insight Fd System Labels

    InSight FD Mini C-arm User Guide InSight FD System Labels 6 InSight FD System Labels 6.1 System Main Label The System Main Label is on the back of the base cabinet. Figure 2 System Main Label 6.2 X-ray System Warning Label The X-ray System Warning Label is on the front of the base cabinet below the Computer On/Standby switch.

  • Page 16: Electric Shock Warning Label

    InSight FD Mini C-arm User Guide Symbols 6.3 Electric Shock Warning Label The Electric Shock Warning Label is located near the fasteners for panels covering high voltage components. Figure 4 Electric Shock Warning 6.4 Field of View Field of View is represented by raised rectangles on the underside of the High Voltage Power Supply.
  • Page 17 InSight FD Mini C-arm User Guide Symbols Table 1 Symbols (Continued) WEEE dispose of electrical/ Computer On/Standby switch electronic equipment properly Rear wheels free to move in all Rear wheels move forward and directions back only Rear wheels locked Manufacturer name and location Manufacturing date Name and address of...

  • Page 18: Safety Hazards

    InSight FD Mini C-arm User Guide Safety Hazards 8 Safety Hazards The following table itemizes various safety hazards. Each hazard is cross referenced with the respective cause and proper course of action. Table 2 Safety Hazards Safety Hazard Cause Course of Action This system produces Radiation Safety Although operating this...
  • Page 19 Do not make any changes to Never remove the Modifications to the X-ray tube. Contact a housing around the X-ray Tube Hologic Representative to X-ray tube or make any replace the X-ray tube. changes to the X-ray tube. When the product leaves the...
  • Page 20 InSight FD Mini C-arm User Guide Safety Hazards Table 2 Safety Hazards Safety Hazard Cause Course of Action Electrical Fire Fire from any source. If there is a fire in the area, and it is safe to do so, turn the system off and unplug the power cord from the wall outlet.
  • Page 21 InSight FD Mini C-arm User Guide Safety Hazards Table 2 Safety Hazards Safety Hazard Cause Course of Action Collision Hazard If improperly moved or if the Use caution when wheel brakes are not used moving the system on correctly, the system could roll an incline.
  • Page 22 InSight FD Mini C-arm User Guide Safety Hazards Table 2 Safety Hazards Safety Hazard Cause Course of Action Device Safety Do not connect any devices to Injury could result if the system other than those unapproved devices described in this manual. are connected to the Internally connected devices system.

  • Page 23: System Components

    InSight FD Mini C-arm User Guide System Components 9 System Components X-ray ON light C-arm retainer Touch screen monitor Image printer shelf Keyboard with integrated pointing CD/DVD RW recorder device X-ray head Computer On/Standby switch Collimation switch USB port (behind the CMOS detector) Flex-arm Footswitch shelf C-arm...

  • Page 24: Controls And Indicators

    InSight FD Mini C-arm User Guide Controls and Indicators 10 Controls and Indicators 10.1 X-ray Head Control Panel Table 3 X-ray Head Control Panel Symbol Label Function Save Saves selected images or cine loop to the record of the patient. If the number of stored images or minutes of cine loop exceeds the storage limit, a message displays.

  • Page 25: Keyboard Controls

    InSight FD Mini C-arm User Guide Controls and Indicators Table 3 X-ray Head Control Panel Symbol Label Function kV/mA Increases or decreases technique factors based on selected mode (Table 13 Worklist Configuration, Section Descriptions on Page 30). Pressing both the up and down power buttons at the same time returns the system to Auto Power mode.
  • Page 26 InSight FD Mini C-arm User Guide Controls and Indicators Table 4 Keyboard Controls (Continued) Icon Function Key Function Increases kV/mA if simultaneous is on or increases kV if simultaneous is off. Pressing this key puts the system into manual mode. Shift-F6 Increases mA if simultaneous is off.

  • Page 27: Insight Fd System Footswitch Functions

    InSight FD Mini C-arm User Guide InSight FD System Footswitch Functions 10.3 InSight FD System Footswitch Functions The footswitch can be used for quick access to several software functions. Figure 6 Wireless Footswitch Table 5 Footswitch Pedal Functions Icon Pedal Function Save / Tag Save or Tag images...

  • Page 28: Acquire An X-Ray Image

    InSight FD Mini C-arm User Guide InSight FD System Footswitch Functions Note The receiver must be turned ON in order to use the footswitch functions. Specific footswitch functions must be enabled in the Physician’s Preferences window options: • Tag References from Footswitch •...

  • Page 29: Using The System

    InSight FD Mini C-arm User Guide Using the System 11 Using the System Note InSight FD operators should read the Radiation Safety section before operating the system. 11.1 Moving the System Warning: Before moving the system, the flex-arm and C-arm must be in the locked storage position to prevent tipping.

  • Page 30: Adjusting The C-Arm

    InSight FD Mini C-arm User Guide Using the System Figure 8 Rear Casters Rear Wheels Locked Rear Wheels Move Forward Rear Wheels Free to Move and Back Only in All Directions 11.2 Adjusting the C-arm Turn the flex-arm lock counterclockwise to loosen; then adjust the flex-arm height.

  • Page 31: Sterile C-Arm Drape

    InSight FD Mini C-arm User Guide Using the System Figure 9 Adjusting the C-arm 11.3 Sterile C-arm Drape Before using the InSight FD Mini C-arm in the operating room, fit the C-arm with a sterile drape. Small labels on the drape indicate how to fit the drape to the X-ray head and to the CMOS detector.

  • Page 32: Powering Up The System

    InSight FD Mini C-arm User Guide Using the System 11.4 Powering Up the System Warning: The InSight FD system operates on standard 115 Volt, 60 Hz AC power for United States, Japanese and Canadian models, 230 Volt, 60 Hz AC, and 240 volt, 50 Hz AC power for other export models. •...

  • Page 33: Configuring The Application

    InSight FD Mini C-arm User Guide Configuring the Application 12 Configuring the Application 12.1 System Configuration User Interface System configuration user interface consists of a multiple-page tab-selected window. Each tab displays a page of configuration data. Four buttons display at the bottom of the window that are independent of the selected page: Table 7 System Configuration User Interface...

  • Page 34: Figure 12 System

    InSight FD Mini C-arm User Guide Configuring the Application Figure 12 System MAN-04858 Revision 006...

  • Page 35: Table 8 System Page

    InSight FD Mini C-arm User Guide Configuring the Application Table 8 System Page Section/Field Description InSight FD Software InSight FD system serial number. dropdown list to display installed software and version. Serial Number Software Status Displays the following current settings: Date of Last System Date application settings and configuration data were Recover...

  • Page 36: Dicom Send Options

    InSight FD Mini C-arm User Guide Configuring the Application 12.3 DICOM Send Options Available from System Configuration Menu (Figure 11) on the Main Screen. Figure 13 DICOM Send Options Table 9 DICOM Send Options Page Section/Field Description Configure DICOM Selection list of DICOM Send destinations configured on the Send Destinations system and six function buttons.

  • Page 37: Table 10 Dicom Send Options Page, Button Functions

    InSight FD Mini C-arm User Guide Configuring the Application Table 9 DICOM Send Options Page Section/Field Description Use as Storage When checked, indicates the destination is committed to storing Commitment information sent to it. Provider During a normal shut down, if any DICOM Commit queue entries are greater than 7 days old, a message box appears indicating: DICOM Storage Commitment Queue contains entries older than 7 days.

  • Page 38: Dicom Print Options

    InSight FD Mini C-arm User Guide Configuring the Application 12.3.1 DICOM Print Options Available from System Configuration Menu (Figure 11) on the Main Screen. Figure 14 DICOM Print Options Table 11 DICOM Print Options Page, Section/Field Descriptions Section/Field Description Configure DICOM Selection list of DICOM Print destinations configured on the Print Destinations system and six function buttons.

  • Page 39: Table 12 Dicom Print Options Page, Button Functions

    InSight FD Mini C-arm User Guide Configuring the Application Table 11 DICOM Print Options Page, Section/Field Descriptions Section/Field Description Print Parameters Number of Copies Enter number of copies to print. Image Display Format Select (row and column) from dropdown list. Orientation Select image layout (Portrait or Landscape).

  • Page 40: Worklist Configuration

    InSight FD Mini C-arm User Guide Configuring the Application 12.4 Worklist Configuration Available from System Configuration Menu (Figure 11) on the Main Screen. Figure 15 Worklist Configuration Table 13 Worklist Configuration, Section Descriptions Section/Field Description Worklist Identifies the system to access for the Worklist by providing entry Provider fields for the provider's AE Title, Host Name or IP Address, and Port.

  • Page 41: Table 14 Worklist Configuration, Button Functions

    InSight FD Mini C-arm User Guide Configuring the Application Table 13 Worklist Configuration, Section Descriptions Section/Field Description Query Provides entry fields to identify: Parameters • Requesting system (AE Title) • Type of worklist being requested (Modality) • Range of days to query •...

  • Page 42: Users

    InSight FD Mini C-arm User Guide Configuring the Application 12.4.1 Users Available from System Configuration Menu (Figure 11) on the Main Screen. Figure 16 Users Table 15 Users Page, Section/Field Descriptions Section/Field Description All Users Displays selection list of registered system users. When checked, the Active column check box allows user to log into the system.

  • Page 43: Physician Preferences

    InSight FD Mini C-arm User Guide Configuring the Application Table 16 Users Page, Button Functions Button Function Adds new users to the system. Edit Edits selected user information. Delete Deletes the selected user from the system. Updates the user list. Cancel Ignores all edits and removes the Add/Edit User section.

  • Page 44: Table 17 Physician Preferences, Section/Field Descriptions

    InSight FD Mini C-arm User Guide Configuring the Application Table 17 Physician Preferences, Section/Field Descriptions Section/Field Description Set System Select system defaults to be used for visiting physician. Defaults or Select physician defaults to set defaults for a selected physician. Physician Defaults Select Physician...

  • Page 45: Physician Preferences - Image Acquisition

    InSight FD Mini C-arm User Guide Configuring the Application 12.6 Physician Preferences — Image Acquisition Displays the current default preference settings for the system or the selected physician. Settings can be customized by an administrator. Figure 18 Physician Preferences — Image Acquisition MAN-04858 Revision 006...

  • Page 46: Table 19 Physician Preferences, Image Acquisition Tab, Section/Field Descriptions

    InSight FD Mini C-arm User Guide Configuring the Application Table 19 Physician Preferences, Image Acquisition Tab, Section/Field Descriptions Section/Field Description Snapshot Fluoro Enables/disables Snapshot image acquisition mode. Continuous Enables/disables Continuous image acquisition mode. Fluoro Continuous When checked and acquiring images in Continuous mode, X-rays mode instant off remain on until X-ray button or pedal is released.

  • Page 47: Physician Preferences - Image Processing

    InSight FD Mini C-arm User Guide Configuring the Application 12.7 Physician Preferences — Image Processing Displays the current default preference settings for the system or the selected physician. Settings can be customized by an administrator. Figure 19 Physician Preferences — Image Processing MAN-04858 Revision 006...

  • Page 48: Table 20 Physician Preferences, Image Processing Tab, Section/Field Descriptions

    InSight FD Mini C-arm User Guide Configuring the Application Table 20 Physician Preferences, Image Processing Tab, Section/Field Descriptions Section/Field Description Noise Select noise suppression for Image Acquisition screen (Ultra, Auto, Suppression High, Medium, or Low). Disable during cine record - When checked, disables noise suppression when cine recording.

  • Page 49: Physician Preferences - Image Management

    InSight FD Mini C-arm User Guide Configuring the Application 12.8 Physician Preferences — Image Management Displays the current default preference settings for the system or the selected physician. Settings can be customized by an administrator. Figure 20 Physician Preferences — Image Management Table 21 Physician Preferences, Image Management Tab, Section/Field Descriptions...

  • Page 50: Administrative Settings Page

    InSight FD Mini C-arm User Guide Configuring the Application 12.9 Administrative Settings Page Available from System Configuration Menu on the Main Screen. Table 22 Administrative Settings, Section Descriptions Section/Field Description Log Files Selection list of all log files. Set Level of Administrators can set System Error log level of detail to Error Detail Only or Error and Operations.

  • Page 51: Using The Insight Fd Application

    InSight FD Mini C-arm User Guide Using the InSight FD Application 13 Using the InSight FD Application You can select buttons, menus, menu functions, icons, and position the insertion cursor in fields by • Positioning the cursor on the respective item and clicking the left mouse button, or •...
  • Page 52 InSight FD Mini C-arm User Guide Using the InSight FD Application Table 24 Main Screen Options Close the Application screen (unavailable) Help - Displays help for using the screen. Starts an image acquisition session (Section 13.2 Image Acquisition Session Page 47) Starts an image review session (Section 13.3.2 Review Screen on Page 57)

  • Page 53: Figure 22 System Configuration Pull-Down Menu

    InSight FD Mini C-arm User Guide Using the InSight FD Application Figure 22 System Configuration Pull-down Menu Figure 23 System Configuration Menu MAN-04858 Revision 006...

  • Page 54: Table 25 System Configuration Menu

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 25 System Configuration Menu Function Description System Administrators can enter organization name, select default Attributes physician's name to be used by the application, select default language, enter DICOM application information and check if warning message should display when deleting images.

  • Page 55: Figure 24 Tools Pull-Down Menu

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 25 System Configuration Menu (Continued) Function Description Administrative Administrators can change the System/Error log level of detail, Settings turn audit mode on or off, enable or disable the touch screen, view the date of the last system configuration backup, and turn on or off the feature to shut down the system upon application shutdown.
  • Page 56 InSight FD Mini C-arm User Guide Using the InSight FD Application Table 26 Tools Menu (Continued) Function Description Import Import selected images into the system from removable media. Section 13.6 Import Images Window on Page 68 Export Export selected images from the system to removable media (Table 40).

  • Page 57: Image Acquisition Session

    InSight FD Mini C-arm User Guide Using the InSight FD Application 13.2 Image Acquisition Session 13.2.1 Select or Enter Patient Window Available from Main Screen by clicking Perform, from the Image Acquisition screen by clicking Update Patient, and from the Review screen during an image acquisition session by clicking Update Patient.

  • Page 58: Image Acquisition Screen

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 28 Select or Enter Patient Window, Button Functions Button Function Clear All Clears Patient Information fields Perform Displays the Image Acquisition screen Review Displays the Review screen End Session Terminates the entry of Patient Information and leaves the Select or Enter Patient screen Apply Changes...

  • Page 59: Figure 27 Image Effects Menu

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 29 Image Acquisition Screen Displays AKR and cumulative air kerma while the X-ray tube is active. Air kerma is calculated at the entrance to the CMOS detector. Displays current power settings. Image Area.

  • Page 60: Figure 28 Configure Image Area Menu

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 30 Image Effects Menu (Continued) Function Description Save Current Enabled if the selected physician is registered on the system. Enhancements as Saves the current image effect settings as the selected physician’s Defaults preference settings.

  • Page 61: Figure 29 Image Acquisition Screen Buttons

    InSight FD Mini C-arm User Guide Using the InSight FD Application Figure 29 Image Acquisition Screen Buttons Table 32 Image Acquisition Screen, Button Functions Button Function Acquisition Mode Cycles through: Selection Continuous – Displays continuous images when X-rays are actuated. Snapshot –...

  • Page 62: Table 33 Tool Set

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 32 Image Acquisition Screen, Button Functions (Continued) Button Function Image Tools Shows or hides the tool set in the Filmstrip/Tools area. Format Toggle Selects current image size and number of thumbnail images that display in the filmstrip area.
  • Page 63 InSight FD Mini C-arm User Guide Using the InSight FD Application Table 33 Tool Set (Continued) Button Function Annotations Contains function buttons and a field that allows the user to add markers or text to the image or remove selected markers or text from the image.

  • Page 64: Select Reference Images Window

    InSight FD Mini C-arm User Guide Using the InSight FD Application 13.2.3 Select Reference Images Window Available from the Image Acquisition screen by selecting Select Reference Images from the Configure Image Area Menu. Figure 30 Reference Images Window Table 34 Select Reference Images Window, Section Descriptions Section Description...

  • Page 65: Review Images Session

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 35 Select Reference Images Window, Button Functions Button Function Select All/ Selects or deselects all images in the image selection list. Deselect All Returns all selected images to the Image Acquisition screen’s filmstrip unless View Study Images Only is checked in the Configure Image Area Menu.

  • Page 66: Table 36 Select Study For Review Window, Section/Field Descriptions

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 36 Select Study for Review Window, Section/Field Descriptions Section/Field Description Search For Search criteria entry fields. To use Start Study and/or End Study Dates as a search criteria, the check box must be checked.

  • Page 67: Review Screen

    InSight FD Mini C-arm User Guide Using the InSight FD Application 13.3.2 Review Screen Available from the Select Study for Review window, and from the Image Acquisition screen by clicking Review. Figure 32 Review Images Screen Table 38 Review Screen, Button Functions Button Function Display Mode...
  • Page 68 InSight FD Mini C-arm User Guide Using the InSight FD Application Table 38 Review Screen, Button Functions (Continued) Button Function Full View Displays the selected image in the Enhanced Displayed Image screen (Section 13.3.3 Enhanced Displayed Image Screen on Page 60) Save Saves selected images or cine loop to the patient’s record.
  • Page 69 InSight FD Mini C-arm User Guide Using the InSight FD Application Table 38 Review Screen, Button Functions (Continued) Button Function Perform Visible only in an acquisition session. Returns to the image acquisition screen. End Session Terminates the current session. MAN-04858 Revision 006...

  • Page 70: Enhanced Displayed Image Screen

    InSight FD Mini C-arm User Guide Using the InSight FD Application Figure 33 Patient Details Figure 34 VISTA Details 13.3.3 Enhanced Displayed Image Screen Available from the Review Images screen by selecting one image and clicking Full View, or by double clicking an image. MAN-04858 Revision 006...

  • Page 71: Figure 35 Enhanced Displayed Image Screen

    InSight FD Mini C-arm User Guide Using the InSight FD Application Figure 35 Enhanced Displayed Image Screen The tool set is identical to the tool set described in Table 33 Table 39 Detailed Image Viewing Screen, Button Functions Button Function <<...

  • Page 72: Maintaining Patient Study Records

    InSight FD Mini C-arm User Guide Using the InSight FD Application 13.4 Maintaining Patient Study Records 13.4.1 Update Patient Study Information Window Available to administrators from the Tools Menu on the Main Screen. Figure 36 Tools Menu Table 40 Update Patient/Study Information Window, Section Descriptions Section Description Select Patient...

  • Page 73: Export Images

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 41 Update Patient/Study Information Window, Button Functions Button Function Update Updates the patient information on all images in the selected study. Note The Auto-Accession number is associated with a specific patient.

  • Page 74: Figure 37 Image Export From Review Screen

    InSight FD Mini C-arm User Guide Using the InSight FD Application Figure 37 Image Export from Review Screen Figure 38 Export Images MAN-04858 Revision 006...

  • Page 75: Export From Review Images Screen

    InSight FD Mini C-arm User Guide Using the InSight FD Application 13.5.2 Export from Review Images Screen From the Tools Menu (Figure 39), select Export. Figure 39 Tool Menu Export Click Export to open the Export Images Window. In the Export Images window (Figure 40), select the studies from which files will be exported.

  • Page 76: Table 42 Export Window, Section Descriptions

    InSight FD Mini C-arm User Guide Using the InSight FD Application c. File Type d. De-identify patient information e. Annotations Click Export. Table 42 Export Window, Section Descriptions Section Description Export Images to Selection list of removable media devices currently available to the system.

  • Page 77: Table 43 Export Window, Button Functions

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 43 Export Window, Button Functions Button Function Patient Details Enabled when only one image is selected. Displays patient information. Select All/ Selects or deselects all images in the image selection list. Deselect All Export Exports the selected images to the selected media device in the...

  • Page 78: Import Images Window

    InSight FD Mini C-arm User Guide Using the InSight FD Application 13.6 Import Images Window Available from Tools Menu (Figure 41) on the Main Screen. Figure 41 Tools Menu Figure 42 Import Images Window MAN-04858 Revision 006...

  • Page 79: Table 44 Import Window, Section Descriptions

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 44 Import Window, Section Descriptions Section Description Import Images Selection list of removable media devices currently available to the from system. Other Locations allows the user to browse for a folder on the system or network.

  • Page 80: Delete Images Window

    InSight FD Mini C-arm User Guide Using the InSight FD Application 13.7 Delete Images Window Available to administrators from the Tools Menu on the Main Screen. Figure 43 Delete Images MAN-04858 Revision 006...

  • Page 81: Figure 44 Patient Selected

    InSight FD Mini C-arm User Guide Using the InSight FD Application Figure 44 Patient Selected Figure 45 Image Selected for Deletion MAN-04858 Revision 006...

  • Page 82: Table 46 Delete Images Window, Section Descriptions

    InSight FD Mini C-arm User Guide Using the InSight FD Application Table 46 Delete Images Window, Section Descriptions Section Description Select Patient Selection list of all patient/study records on the system and a Study search criteria section (Find). The selection list can be sorted on any column by clicking in the respective column label.

  • Page 83: View Dicom Queue Window

    InSight FD Mini C-arm User Guide Using the InSight FD Application 13.8 View DICOM Queue Window Available from the Tools Menu and from the Review Images screen. Figure 46 View DICOM Queue Table 48 Queue Window, Section Description and Button Functions Section/Button Description/Function DICOM Queue...

  • Page 84: System Maintenance

    InSight FD Mini C-arm User Guide System Maintenance 14 System Maintenance 14.1 System Backup Any user can backup system configuration and calibration data to a selected removable media device by selecting System Backup from the Tools Menu on the Main Screen. 14.2 System Recover Administrators can restore system configuration and calibration data from a selected removable media device by selecting System Recover from...

  • Page 85: Preventive Maintenance

    Cavicide, Isopropyl Alcohol, Medicide Oxidizing Hydrogen Peroxide 3% Solution, Lifegard Series Quaternary Ammonium Roccal-D, Bacto-Sep, Parvosol Soap and Water 14.4 Preventive Maintenance Hologic recommends that preventative maintenance be performed by authorized service personnel at least once per year. MAN-04858 Revision 006...
  • Page 86 InSight FD Mini C-arm User Guide System Maintenance MAN-04858 Revision 006...
  • Page 88 Hologic, Inc. 36 Apple Ridge Road Danbury, CT 06810 USA 1-800-447-1856 Imex Medical Group do Brasil Brazilian contact Rua das Embaúbas, 601 Fazenda Santo Antônio São José/SC 88104-561 Brasil +55 48 3251 8800 www.imexmedicalgroup.com.br Hologic BV Da Vincilaan 5 1930 Zaventem...
