Operator's Console Frus; Figure 5-16. Power Control Panel Frus - Hologic QDR 4500 Technical Manual

Instrument
Power Switch
Key
X-Ray On
LED
Power
Controller
Board
Remote X-Ray
Indicator CB
Receptacle
5. Remove 4 Phillips screws and slide the board out.
6. Reverse the steps to install the new Power Controller Board.

OPERATOR'S CONSOLE FRUS

The Operator's Console FRUs, computer, keyboard, monitor and printer, are located on the
computer stand (see Figure 5-17). If replacement is necessary, the keyboard, monitor or printer
are replaced as an entire unit. Refer to the computer service manual for computer servicing
information.
5-30

QDR 4500 Technical Manual

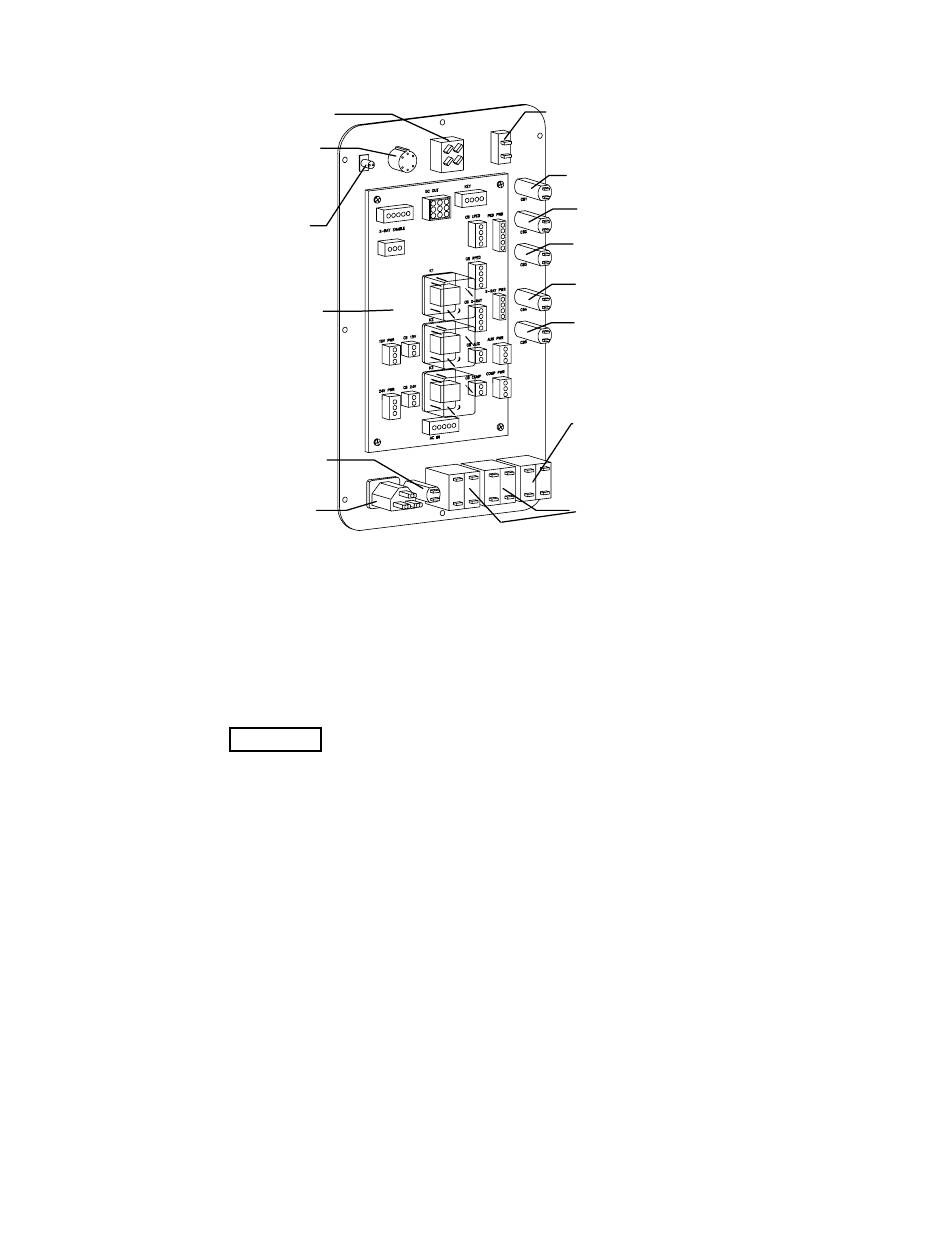

Figure 5-16. Power Control Panel FRUs

Computer Power
Switch
Computer CB
28V P/S CB
15V P/S CB
24V CB
28V CB
X-Ray
Supply CB
Pedestal CB
