Kramer KT-107 Quick Start Manual
Hide thumbs Also See for KT-107:

Advertisement

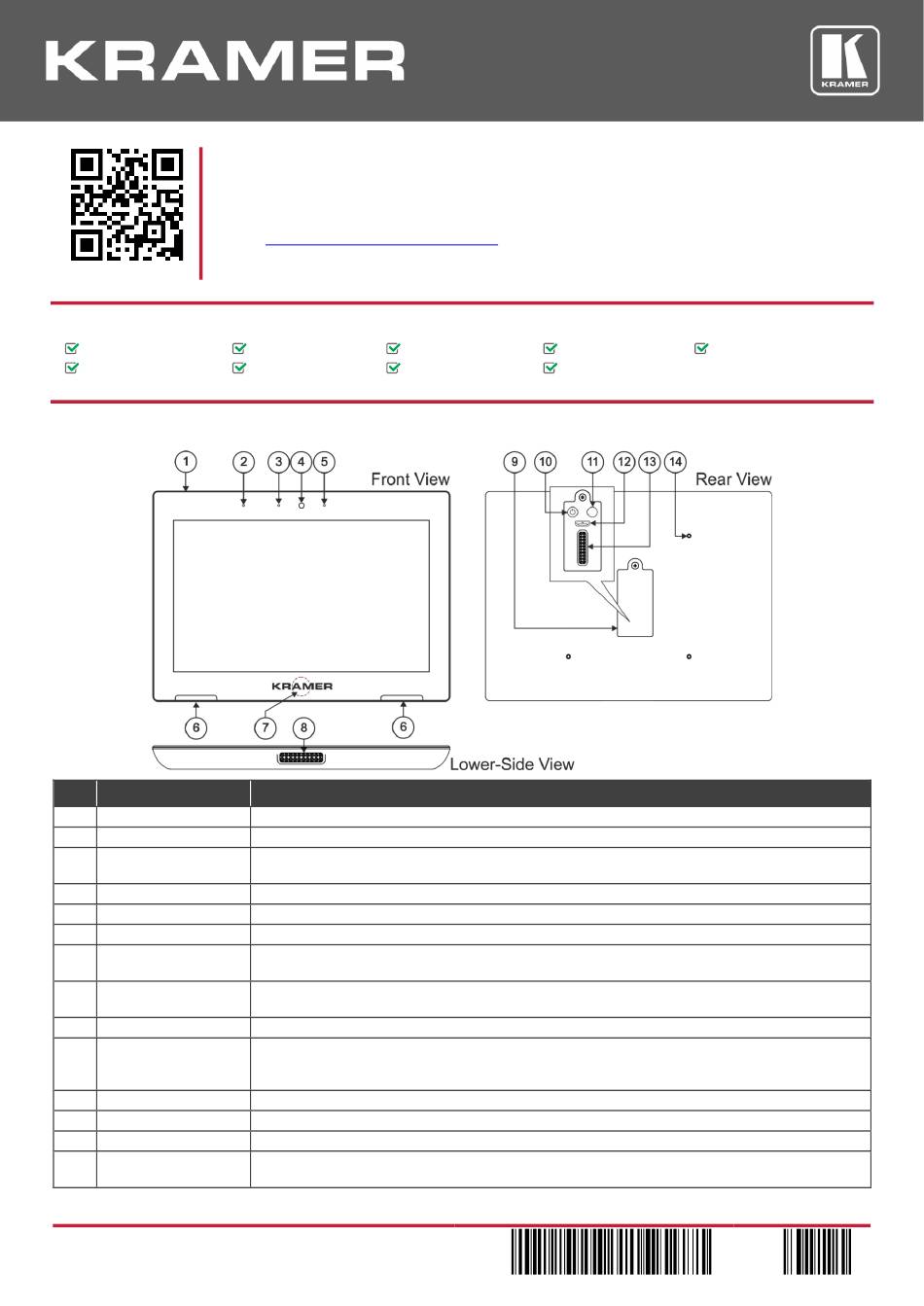

Scan for full manual
Step 1: Check what's in the box

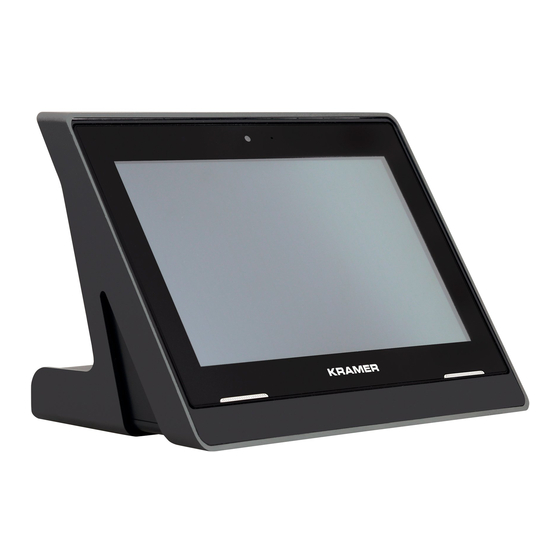

KT-107 Touch Panel
AC/DC adapter
Step 2: Get to know your KT-107
#
Feature
1
Hidden Reset Button
2
Light Sensor
3
Activity RGB LED
4
Camera
5
Microphone
6
Speakers
7
Control Button
8
Tabletop Mount
Connector
9
Cover
10
Power Button
11
Volume-up Button
12
Micro USB Port
13
Flat Cable Connector
14
Connecting Holes
KT-107 Quick Start
KT-107 Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/KT-107
upgrades are available.
Tabletop mount
Installation screws
Function
Located on top-side. Insert a pin and hold for a few seconds to reset KT-107.
Automatically adjusts the screen brightness according to the room lighting conditions.
Lights green when powered, flashes green when charging the battery, lights red when camera
on.
For remote room viewing or video conferencing.
For audio communication, recording or conferencing.
To output the sound.
Press and hold (for 2 seconds) to open the pop-up menu which lets you power down the unit,
reboot it or return to the home page. The Control button is password protected (default: Kramer).
For connecting to the tabletop mount.
Covers the wall mount connections and power button.
Press to power on the KT-107. When powered, press briefly to open the pop-up menu and power
down the device, reboot it or return to the home page. Press and hold to power down the device
immediately. This button is also used for firmware upgrade.
Used for firmware upgrade. Use also to increase
For connecting to an adjacent on-wall USB device and for firmware upgrade.
For connecting to the on-wall mount unit.
For connecting to the tabletop mount or the panel mount plate.
To prevent potential damage to the
KT-107
for the first time.
to download the latest user manual and check if firmware
On-wall mount unit
1 Quick start guide
Panel mount plate
1 right-angle OTG USB cable
KT-107
Touch
Panel, use only Kramer supplied screws and mounts.
P/N: 2 9 0 0 - 3 0 1 5 5 9 QS
1 C-USB/Micro B cable
speaker volume.
Rev: 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KT-107 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kramer KT-107

  • Page 1 Covers the wall mount connections and power button. Power Button Press to power on the KT-107. When powered, press briefly to open the pop-up menu and power down the device, reboot it or return to the home page. Press and hold to power down the device immediately.
  • Page 2 (Secure Mount): Measure the exact location on the surface of the table where you want to install the KT-107. Drill a hole in the table and optionally cut the cable pass-through opening according to the cut-out dimensions defined in the user manual.
  • Page 3 3. Follow the instructions in the Password Set window. To configure the Boot Start App 1. From the home page, tap Settings > Control. 2. Tap Select Boot Start App and select either Kramer Control or None. If you select the Kramer Control app, it opens on startup.
  • Page 4 For KT-107 model: FCC-ID-R8S-KT-107 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
