Scan for full manual

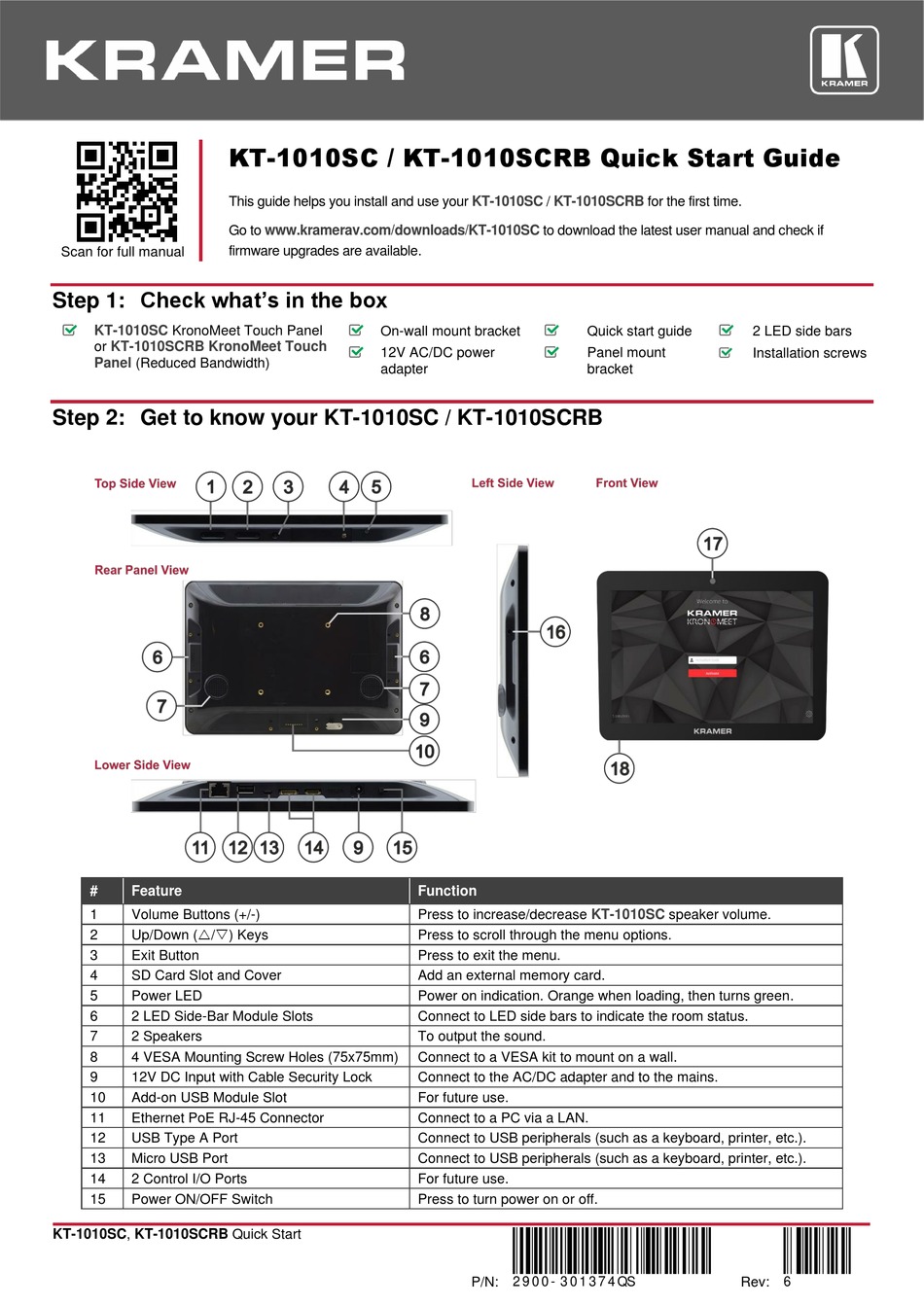

Step 1: Check what's in the box
KT-1010SC
KronoMeet Touch Panel
or
KT-1010SCRB KronoMeet Touch
Panel
(Reduced Bandwidth)

Step 2: Get to know your KT-1010SC / KT-1010SCRB

#
Feature
1
Volume Buttons (+/-)
2
Up/Down (/) Keys
3
Exit Button
4
SD Card Slot and Cover
5
Power LED
6
2 LED Side-Bar Module Slots
7
2 Speakers
8
4 VESA Mounting Screw Holes (75x75mm)
9
12V DC Input with Cable Security Lock
10
Add-on USB Module Slot
11
Ethernet PoE RJ-45 Connector
12
USB Type A Port
13
Micro USB Port
14
2 Control I/O Ports
15
Power ON/OFF Switch
KT-1010SC, KT-1010SCRB Quick Start
KT-1010SC / KT-1010SCRB Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/KT-1010SC
firmware upgrades are available.
On-wall mount bracket
12V AC/DC power
adapter
KT-1010SC
/
KT-1010SCRB
to download the latest user manual and check if
Quick start guide
Panel mount
bracket
Function
Press to increase/decrease
KT-1010SC
Press to scroll through the menu options.
Press to exit the menu.
Add an external memory card.
Power on indication. Orange when loading, then turns green.
Connect to LED side bars to indicate the room status.
To output the sound.
Connect to a VESA kit to mount on a wall.
Connect to the AC/DC adapter and to the mains.
For future use.
Connect to a PC via a LAN.
Connect to USB peripherals (such as a keyboard, printer, etc.).
Connect to USB peripherals (such as a keyboard, printer, etc.).
For future use.
Press to turn power on or off.
P/N: 2 9 0 0 - 3 0 1 3 7 4 QS
for the first time.
2 LED side bars
Installation screws
speaker volume.
Rev: 6
