Kramer KT-107S Quick Start Manual

KT-107S Quick Start Guide
This guide helps you install and use your KT-107S for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
KT-107S Touch Panel
AC/DC adapter

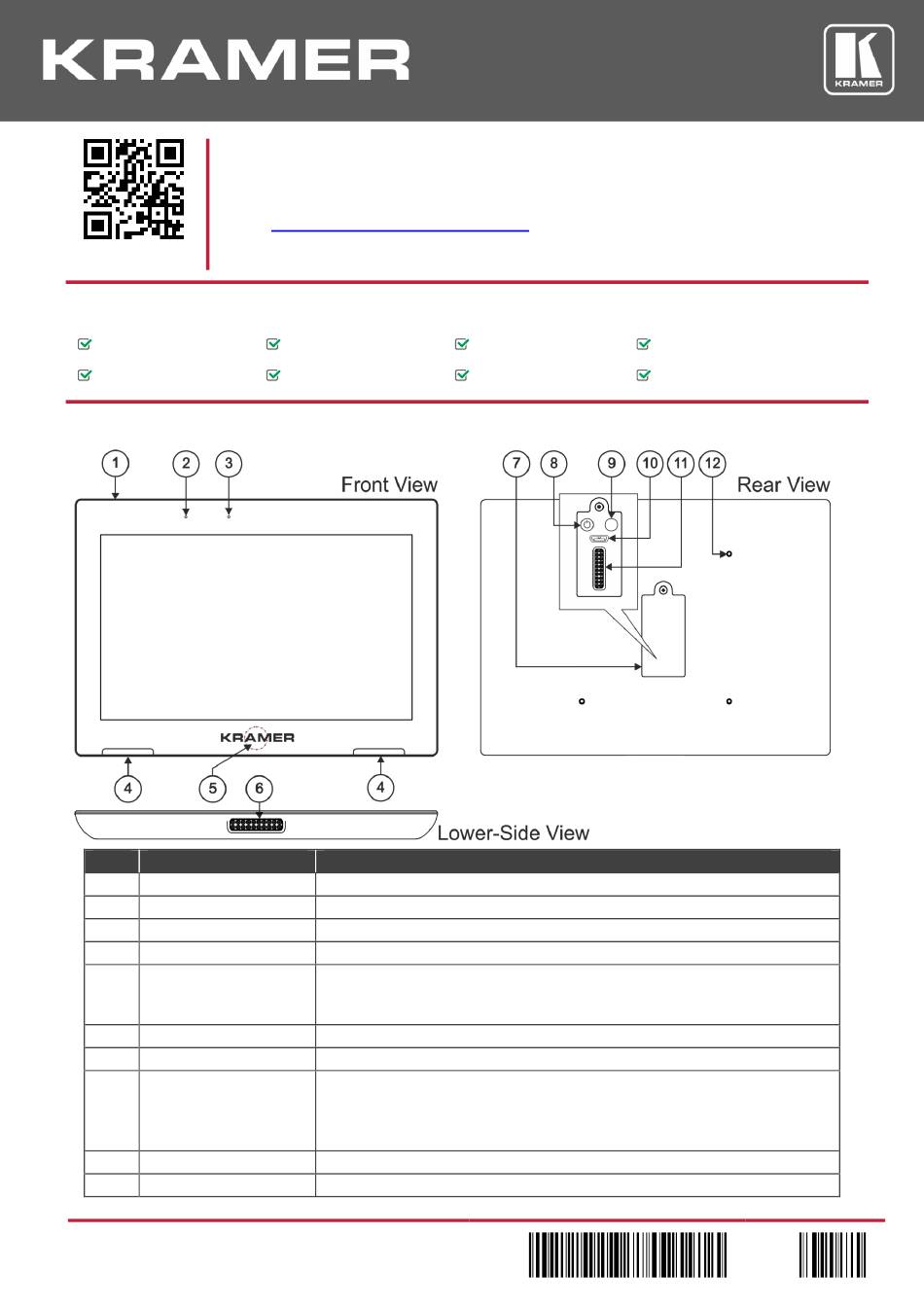

Step 2: Get to know your KT-107S

# Feature
1 Hidden Reset Button
2 Light Sensor
3 Activity RGB LED
4 Speakers
5 Control Button
6 Tabletop Mount Connector
7 Cover
8 Power Button
9 Volume-up Button
10 Micro USB Port
KT-107S Quick Start (P/N: 2900-300780QS REV 2)
www.kramerav.com/downloads/KT-107S
Tabletop mount
Installation screws
Function
Located on top-side. Insert a pin and hold for a few seconds to reset KT-107S
Automatically adjusts the screen brightness according to the room lighting conditions
Lights green when powered, flashes green when charging the battery
To output the sound
Touch the Kramer logo area briefly to set the screen to sleep mode or turn it back on.
Press and hold (for 1 to 2 seconds) to open the pop-up menu which lets you power
down the unit, reboot it or return to the Home-page.
For connecting to the tabletop mount
Covers the wall mount connections and power button
Press to power on the KT-107S. When powered, press briefly to open the pop-up
menu and power down the device, reboot it or return to the Home-page.
Press and hold to power down the device immediately. This button is also used for
firmware upgrade
Used for firmware upgrade. Press to increase KT-107S speaker volume
For connecting to an adjacent on-wall USB device and for firmware upgrade
to download the latest user manual and check if firmware
On-wall mount unit
Panel mount plate
P/N:
2 9 0 0 - 3 0 0 7 8 0 QS
1 Quick start guide
1 Right-angle OTG USB cable
Rev: 2
