TROUBLE SHOOTING
1. Only black-and-white display
- Check the Saturation, Brightness and Contrast for proper setting.
- Verify that the monitor color is not in Mono or a single color setting.
2. Power on but no image
- Ensure that the cables are properly connected.
- Press MODE to ensure that the proper input signal is selected.
- Use the included power adapter. Incorrect power input may cause
damage to equipment.
3. No Sound
- Ensure that the cables are properly connected.
- Check the AUDIO input to ensure there is an audio signal present.

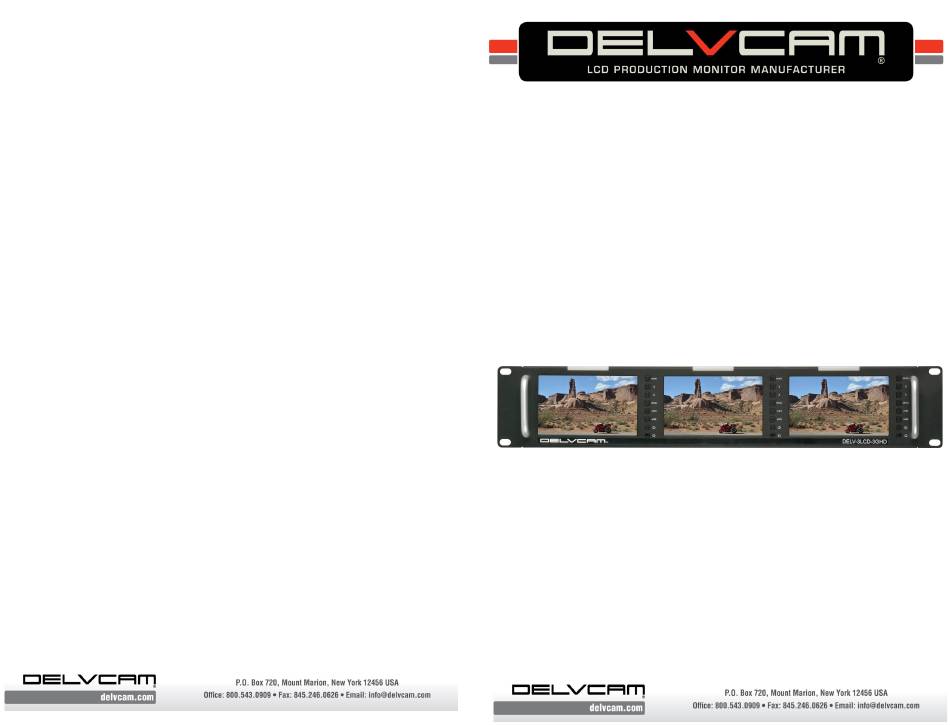

Delvcam
DELV-3LCD-3GHD
User Guide
5" Triple 3G-SDI/HDMI
Rackmount LCD Video Monitor
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DELVCAM DELV-3LCD-3GHD
Summary of Contents for DELVCAM DELV-3LCD-3GHD
- Page 1 - Verify that the monitor color is not in Mono or a single color setting. 2. Power on but no image DELV-3LCD-3GHD - Ensure that the cables are properly connected. - Press MODE to ensure that the proper input signal is selected.
- Page 2 HDMI, 3G-SDI, CVBS, audio inputs, and HDMI, 3G-SDI, CVBS outputs When desired option appears, press MENU to confirm selection. INCLUDED ACCESSORIES • Tally Interface Board • 12VDC/3A Power Adapter OPTIONAL ACCESSORIES • Battery Plate Bracket • V-mount/Anton Bauer Mount Power Cable Delvcam DELV-3LCD-3GHD Page 7 Delvcam DELV-3LCD-3GHD Page 2...
- Page 3 Zoom All: Use < or > to adjust the image • OSD Time: Menu display time • U/D Zoom: < or > to adjust the image • L/R Zoom: < or > to adjust the image Delvcam DELV-3LCD-3GHD Page 6 Delvcam DELV-3LCD-3GHD Page 3...
- Page 4 Screen Screen Tally 7 4-pin XLR 12VDC 6 F2 Customizable function button/Menu down power input Green 7 On/Standby button 8 DC power input port 8 Earphone jack Yellow Ground 9 TALLY indicator Delvcam DELV-3LCD-3GHD Page 4 Delvcam DELV-3LCD-3GHD Page 5...
