- Page 1 HDMI Extender Series User Manual Model : HE05C HDMI over Coaxial 500M Extender (Digital RF DVB-T) Smart Cabling & Transmission Corp.
-
Page 2: Installation View
HE05C Introduction HE05C is a point-to-point HDMI extender that applies DVB-T RF modulator and can use an RG59/ RG6 coaxial cable to send an HDMI signal for up to 500M. The extender can also work with either a splitter to distribute one HDMI signal to multiple displays or a combiner to integrate various HDMI input/ output sources for channel selection. -
Page 3: Button Function

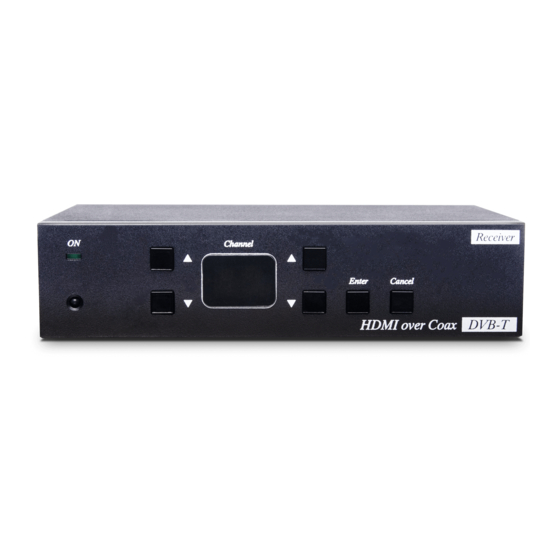

User Manual HE05C Panel View HE05CT HE05CR LED Indication HE05CT LED Green ON/OFF Power on/off HE05CR LED Green ON/OFF Power on/off Blue ON Video signal received Blue Flash Video signal not stable Button Function ▲ ▼ single digit channel selecting key ▲... -
Page 4: Remote Control Function
User Manual HE05C IR01 Remote Controller When using multiple source with HE05CT transmitter, HE05CR receiver input source selection could be using optional IR remote controller for easy operation. Remote Control Function Initial the first time using the remote control or after change battery of remote control, both need setting the IR remote controller ID. -
Page 5: Specification
User Manual HE05C Specification ITEM NO. HE05CT HE05CR Support Compliance HDMI 1.3, HDCP 1.4, DVI 1.0 Max. Video Resolution 1080p@60Hz Max. Transmission Distance 500M over Coaxial Cable IR Receiver 38 KHz Ports & Interfaces Video Input 1 x HDMI Type A 1 x 75Ω...
