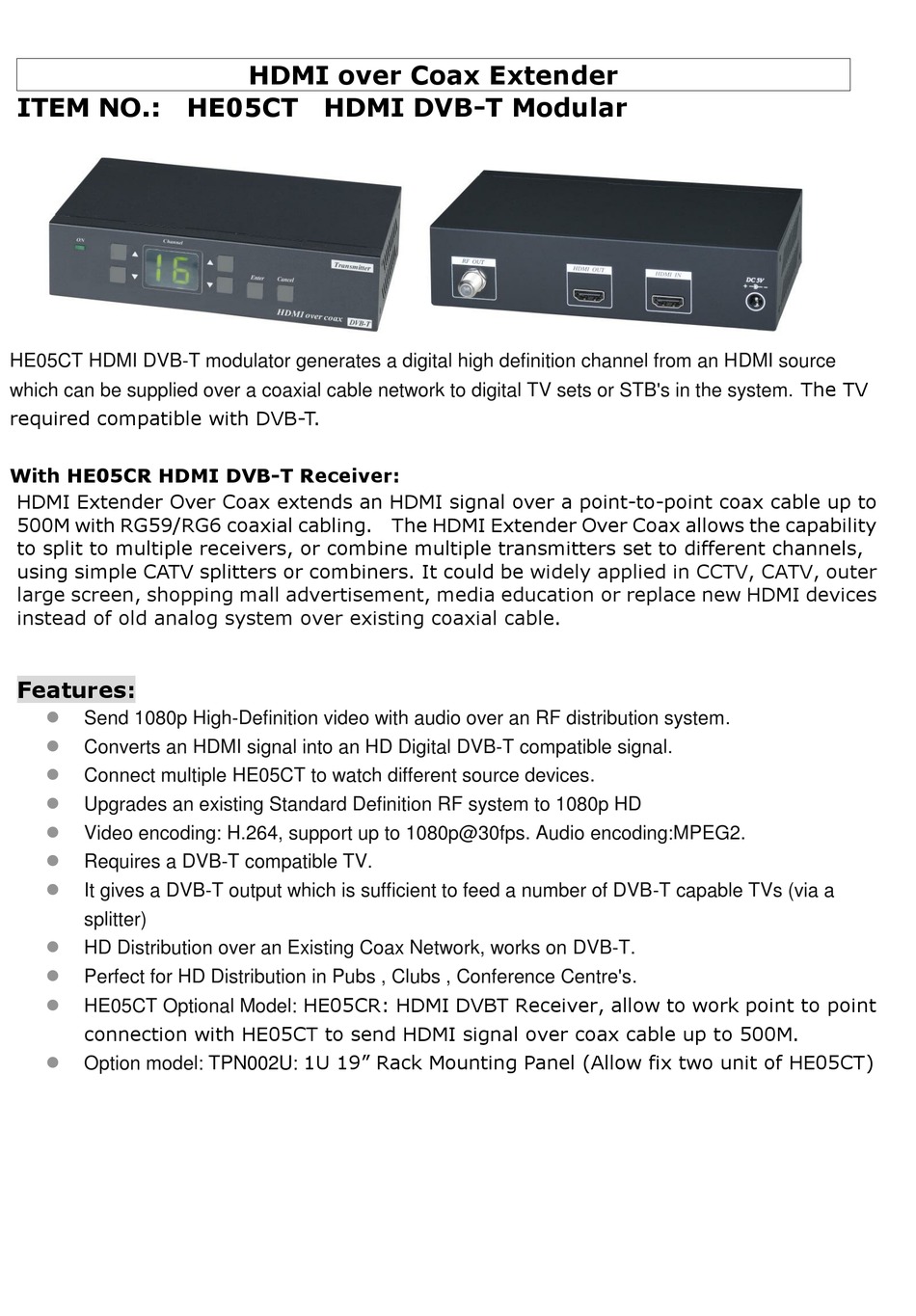

SC&T HE05CT Manual

ITEM NO.: HE05CT HDMI DVB-T Modular
HE05CT HDMI DVB-T modulator generates a digital high definition channel from an HDMI source
which can be supplied over a coaxial cable network to digital TV sets or STB's in the system.
required compatible with DVB-T.
With HE05CR HDMI DVB-T Receiver:
HDMI Extender Over Coax extends an HDMI signal over a point-to-point coax cable up to
500M with RG59/RG6 coaxial cabling. The HDMI Extender Over Coax allows the capability
to split to multiple receivers, or combine multiple transmitters set to different channels,
using simple CATV splitters or combiners. It could be
large screen, shopping mall advertisement, media education or replace new HDMI devices
instead of old analog system over existing coaxial cable.
Features:

Send 1080p High-Definition video with audio over an RF distribution system.

Converts an HDMI signal into an HD Digital DVB-T compatible signal.

Connect multiple HE05CT to watch different source devices.

Upgrades an existing Standard Definition RF system to 1080p HD

Video encoding: H.264, support up to 1080p@30fps. Audio encoding:MPEG2.

Requires a DVB-T compatible TV.

It gives a DVB-T output which is sufficient to feed a number of DVB-T capable TVs (via a
splitter)

HD Distribution over an Existing Coax Network, works on DVB-T.

Perfect for HD Distribution in Pubs , Clubs , Conference Centre's.

HE05CT Optional Model:
connection with HE05CT to send HDMI signal over coax cable up to 500M.

Option model:
HDMI over Coax Extender
HE05CR: HDMI DVBT Receiver, allow to work point to point
TPN002U: 1U 19" Rack Mounting Panel (Allow fix two unit of HE05CT)
widely applied in CCTV, CATV, outer
The TV
