Backyard Discovery STRATFORD Manual page 5

Owner's Manual
J1
SPLICE BRACKET - A4M01269
(4)
1 1/4"x5 1/8"x19 5/8" (33x131x500)
F1
LONG ANGLE BRACE - A4M01273
(2)
1 1/8"x4"x21 1/2" (30x101x546)
F2
LONG ANGLE BRACE - A4M01274
(2)
1 1/8"x4"x21 1/2" (30x101x546)

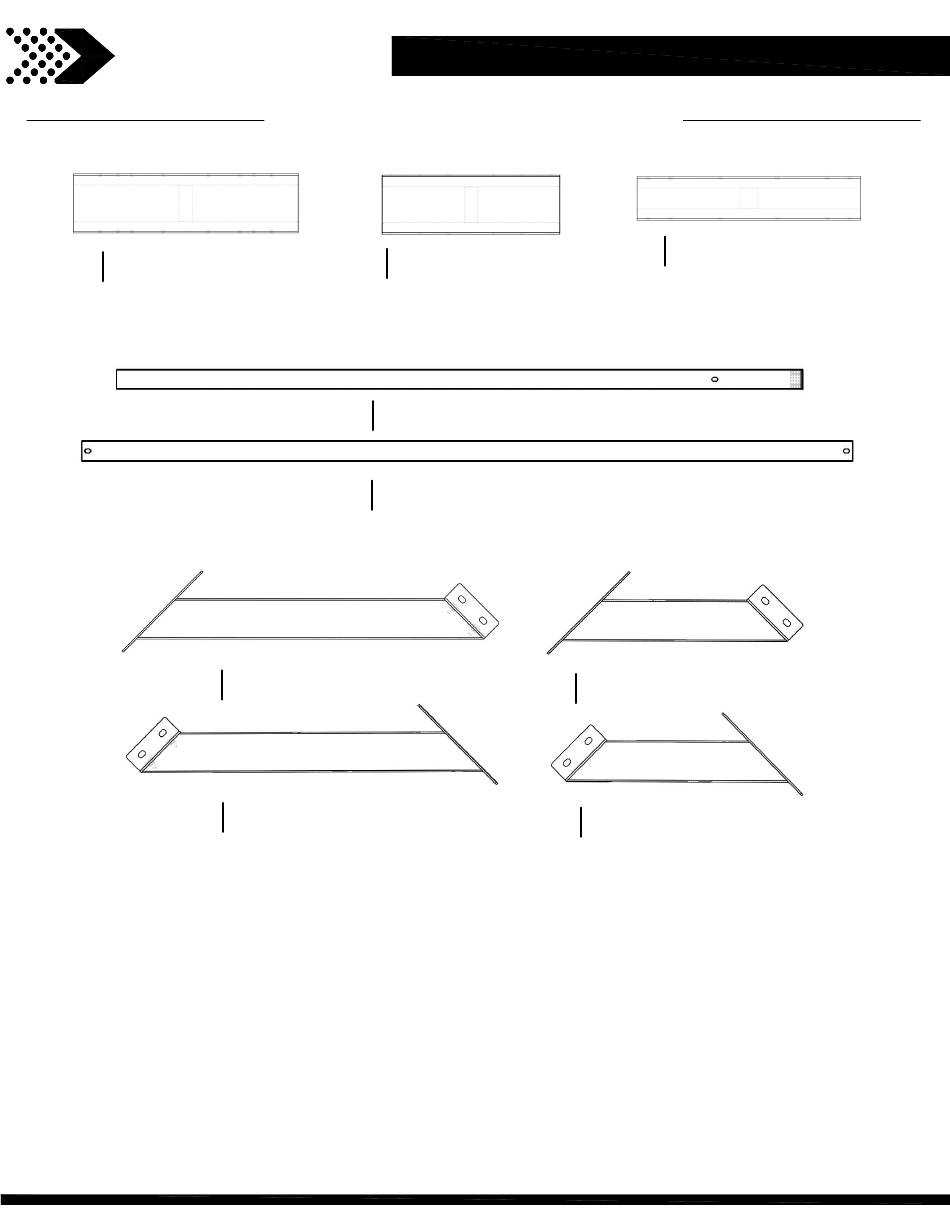

Metal Components (Not to Scale)
J2
SPLICE BRACKET - A4M01270
(2)
1 1/4"x5 1/8"x15 3/4" (33x131x400)
E1
PURLIN END - A4M01286
(24)
3/4"x1 5/8"x53 7/8" (20x40x1368)
E2
PURLIN - A4M01277
(12)
3/4"x1 5/8"x60 3/8" (20x40x1534)
Parts Identification
J3
(14)
F3
SHORT ANGLE BRACE - A4M01275
(2)
1 1/8"x4"x14" (30x101x355)
F4
SHORT ANGLE BRACE - A4M01276
(2)
1 1/8"x4"x14" (30x101x355)
5
SPLICE BRACKET - A4M01271
1 1/2"x3"x15 3/4" (37x77x400)
