Backyard Discovery STRATFORD Owner's Manual
  1. Manuals
  2. Brands
  3. Backyard Discovery Manuals
  4. Outdoor Furnishing
  5. STRATFORD
  6. Owner's manual

Backyard Discovery STRATFORD Owner's Manual

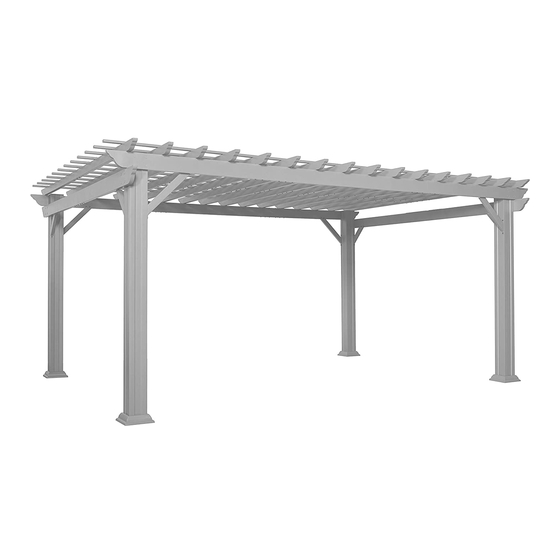

14x10 pergola
Hide thumbs Also See for STRATFORD:

Advertisement

Quick Links

Download this manual
Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The
Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990
14x10 STRATFORD, ASHFORD, HAWTHORNE
PERGOLA
MODEL #'S : 2105058B, 2105065B, 2105072B
Electrical enclosure available
only in North America
2105058B STRATFORD
(BLACK)
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
ONLY AVAILABLE IN NORTH AMERICA
INS-2105058B, 2105065B, 2105072B-A-14X10 TRADITIONAL METAL PERGOLA-ENG 10-28-2021
2105072B HAWTHORNE
(WHITE)
2105065B
ASHFORD (BROWN)
INSTALLATION
SERVICES
AVAILABLE!
See inside for details
See inside for details
ONLY AVAILABLE IN U.S.
*
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the STRATFORD and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery STRATFORD

Summary of Contents for Backyard Discovery STRATFORD

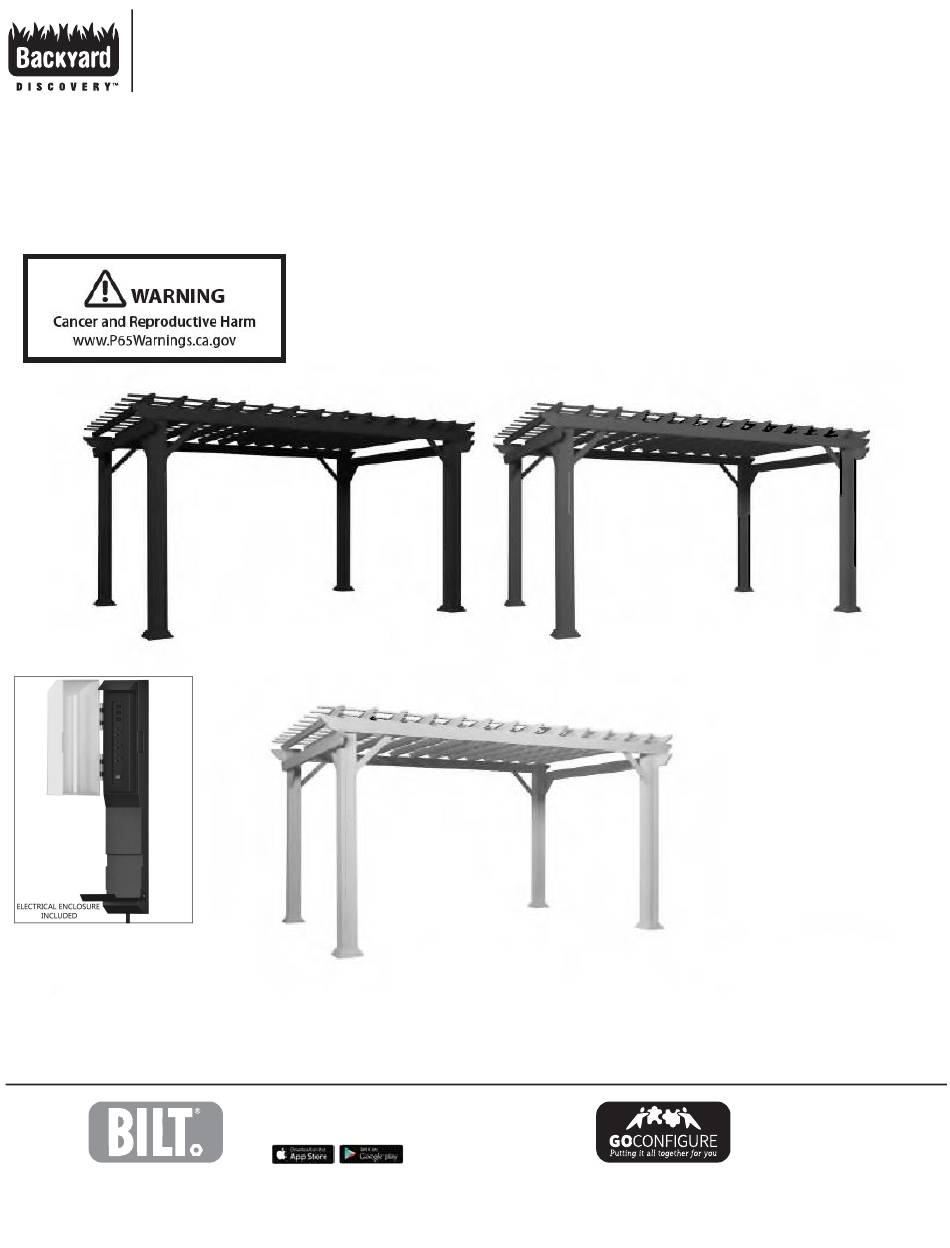

  • Page 1 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 14x10 STRATFORD, ASHFORD, HAWTHORNE PERGOLA MODEL #'S : 2105058B, 2105065B, 2105072B 2105065B...
  • Page 2 Basic Setup Dimensions & Assembly Notes Owner's Manual It is critically important that you start with square and level footings, concrete pad or deck to attach your structure • Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.
  • Page 3 Owner's Manual ANCHORING LAYOUT 8'2 3/16" 2494mm 7'5 13/16" 2281mm...

  • Page 4: Parts Identification

    Owner's Manual Parts Identification Metal Components (Not to Scale) POST - A4M01565 6"x6"x88" (152x152x2235) POST - A4M01566 6"x6"x88" (152x152x2235) JOIST END - A4M01597 1 3/8"x5 1/4"x48 1/2" (36x134x1232) JOIST END - A4M01598 1 3/8"x5 1/4"x48 1/2" (36x134x1232) JOIST - A4M01596 1 3/8"x5 1/4"x71 1/4"...
  • Page 5 Owner's Manual Parts Identification Metal Components (Not to Scale) SPLICE BRACKET - A4M01271 SPLICE BRACKET - A4M01270 SPLICE BRACKET - A4M01269 (14) 1 1/2"x3"x15 3/4" (37x77x400) 1 1/4"x5 1/8"x15 3/4" (33x131x400) 1 1/4"x5 1/8"x19 5/8" (33x131x500) PURLIN END - A4M01286 (20) 3/4"x1 5/8"x53 7/8"...

  • Page 6: Hardware Components

    Owner's Manual Parts Identification Hardware Components TORX PAN HEAD H101101 1/4-20x3/4" (226) H101053 STEEL WASHER H101054 SEALANT WASHER (294) (294) 6x20 TORX PAN HEAD H101107 1/4-20x1 1/2" (42) TORX PAN HEAD H101102 1/4-20x4" (30) H101103 TORX SOCKET SCREW 1/4-20 (34) H100120 SCREW CONCRETE ANCHOR H100630...
  • Page 7 Owner's Manual Parts Identification Accessory Components (Not to Scale) POST FOOT PLATE - A4M01278 POST FOOT - A4M01279 HOLE COVER - A4M01352 2 1/8"x8 3/8"x8 3/8" (54x213x213) 2 5/8"x9 7/8"x9 7/8" (68x250x250) (32) 9205413 ELECTRICAL ENCLOSURE (x1) 2-WAY SQUARE PLUG- A6P00465 (20) 3/4"x1 5/8"x2"...
  • Page 8 PRE-ASSEMBLY STEP 1 SORTING PARTS...
  • Page 9 PRE-ASSEMBLY STEP 2 CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 10 PERGOLA ASSEMBLY STEP 1 H101101 TORX PAN HEAD JOIST END - A4M01563 H101053 STEEL WASHER 1/4-20x3/4" (16) 1 3/8"x5 1/4"x60 1/8" (36x134x1526) 6x20 (16) SHORT ANGLE BRACE - A4M01275 SPLICE BRACKET - A4M01270 H101054 SEALANT WASHER 1 1/8"x4"x14" (30x101x355) 1 1/4"x5 1/8"x15 3/4" (33x131x400) (16)
  • Page 11 PERGOLA ASSEMBLY STEP 2 H101101 TORX PAN HEAD H101053 STEEL WASHER 1/4-20x3/4" (16) 6x20 (16) JOIST END - A4M01564 SHORT ANGLE BRACE - A4M01276 1 3/8"x5 1/4"x60 1/8" (36x134x1526) 1 1/8"x4"x14" (30x101x355) H101054 SEALANT WASHER (16)
  • Page 12 PERGOLA ASSEMBLY STEP 3 POST - A4M01565 POST - A4M01566 TORX PAN HEAD H101101 H101053 STEEL WASHER 1/4-20x3/4" 6"x6"x88" (152x152x2235) 6"x6"x88" (152x152x2235) 6x20 JOIST ASSEMBLY - FROM PREVIOUS STEPS H101103 TORX SOCKET SCREW 1/4x20 (16) H101054 SEALANT WASHER...
  • Page 13 PERGOLA ASSEMBLY STEP 4 H101101 TORX PAN HEAD H101053 STEEL WASHER 1/4-20x3/4" 6x20 POST FOOT PLATE - A4M01278 POST FOOT - A4M01279 2 1/8"x8 3/8"x8 3/8" (54x213x213) 2 5/8"x9 7/8"x9 7/8" (68x250x250) H101054 SEALANT WASHER...
  • Page 14 PERGOLA ASSEMBLY STEP 5 H101101 TORX PAN HEAD H101053 STEEL WASHER 1/4-20x3/4" (24) (24) 6x20 JOIST - A4M01596 SPLICE BRACKET - A4M01269 1 3/8"x5 1/4"x71 1/4" (36x134x1811) 1 1/4"x5 1/8"x19 5/8" (33x131x500) H101054 SEALANT WASHER (24)
  • Page 15 PERGOLA ASSEMBLY STEP 6 JOIST END - A4M01597 LONG ANGLE BRACE - A4M01273 H101101 TORX PAN HEAD H101053 STEEL WASHER 1 3/8"x5 1/4"x48 1/2" (36x134x1232) 1 1/8"x4"x21 1/2" (30x101x546) 1/4-20x3/4" (32) (32) 6x20 JOIST END - A4M0198 LONG ANGLE BRACE - A4M01274 1 3/8"x5 1/4"x48 1/2"...
  • Page 16 PERGOLA ASSEMBLY STEP 7 H101103 TORX SOCKET SCREW H101101 TORX PAN HEAD 1/4-20x3/4" (16) 1/4-20 UPRIGHT ASSEMBLY - FROM PREVIOUS STEPS H101054 H101053 SEALANT WASHER STEEL WASHER JOIST ASSEMBLY - FROM PREVIOUS STEPS 6x20...
  • Page 17 PERGOLA ASSEMBLY STEP 8 H101101 TORX PAN HEAD H101053 STEEL WASHER 1/4-20x3/4" (16) 6x20 (16) JOIST END - A4M01284 SPLICE BRACKET - A4M01271 1 5/8"x3 1/8"x60 1/8" (40x80x1526) 1 1/2"x3"x15 3/4" (37x77x400) H101054 SEALANT WASHER (16)
  • Page 18 PERGOLA ASSEMBLY STEP 9 H101101 TORX PAN HEAD H101053 STEEL WASHER 1/4-20x3/4" (16) 6x20 (16) JOIST END - A4M01284 1 5/8"x3 1/8"x60 1/8" (40x80x1526) H101054 SEALANT WASHER (16)
  • Page 19 PERGOLA ASSEMBLY STEP 10 H101102 TORX PAN HEAD H101053 STEEL WASHER 1/4-20x4" 6x20 JOIST ASSEMBLY - FROM PREVIOUS STEPS H101054 SEALANT WASHER...
  • Page 20 PERGOLA ASSEMBLY STEP 11 H101101 TORX PAN HEAD H101053 STEEL WASHER 1/4-20x3/4" (40) (40) 6x20 JOIST END - A4M01285 SPLICE BRACKET - A4M01271 (10) (10) 1 5/8"x3 1/8"x60 1/8" (40x80x1526) 1 1/2"x3"x15 3/4" (37x77x400) H101054 SEALANT WASHER (40)
  • Page 21 PERGOLA ASSEMBLY STEP 12 H101053 STEEL WASHER H101101 TORX PAN HEAD (40) 6x20 1/4-20x3/4" (40) JOIST END - A4M01285 (10) 1 5/8"x3 1/8"x60 1/8" (40x80x1526) H101054 SEALANT WASHER (40)
  • Page 22 PERGOLA ASSEMBLY STEP 13 H101102 TORX PAN HEAD H101053 STEEL WASHER 1/4-20x4" (20) (20) 6x20 (10) JOIST ASSEMBLY - FROM PREVIOUS STEPS H101054 SEALANT WASHER (20)
  • Page 23 PERGOLA ASSEMBLY STEP 14 PURLIN - A4M01277 2-WAY SQUARE PLUG- A6P00465 (10) 3/4"x1 5/8"x60 3/8" (20x40x1534) (20) 3/4"x1 5/8"x2" (20x40x52)
  • Page 24 PERGOLA ASSEMBLY STEP 15 TORX PAN HEAD H101107 H101053 STEEL WASHER 1/4-20x1 1/2" (20) (20) 6x20 PURLIN ASSEMBLY - FROM PREVIOUS STEPS (10) H101054 SEALANT WASHER (20)
  • Page 25 PERGOLA ASSEMBLY STEP 16 H101107 TORX PAN HEAD H101053 STEEL WASHER 1/4-20X1 1/2" (20) (20) 6x20 PURLIN END - A4M01286 (20) 3/4"x1 5/8"x53 7/8" (20x40x1368) H101054 SEALANT WASHER (20)
  • Page 26 PERGOLA ASSEMBLY STEP 17 HOLE COVER - A4M01352 (32)
  • Page 27 PERGOLA ASSEMBLY STEP 18 H100120 SCREW CONCRETE ANCHOR H100630 WASHER FLAT BLK (16) 1/4x2 8x19 (16)

  • Page 28: Electrical Enclosure

    ELECTRICAL ENCLOSURE FOR ELECTRICAL ENCLOSURE INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COMES PACKAGED WITH THE ELECTRICAL ENCLOSURE KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
  • Page 29 PowerPort™ MANUFACTURED BY: Backyard Discovery 3305 Airport Drive Model # 9205413 Pittsburg, KS 66762 800-856-4445 Wood Post Mounting Instructions H100966 SCREW RAISED HEAD 9205413 (x4) ELECTRICAL ENCLOSURE 8x1 1/2 (x1) 2 3/8 in [60 mm] 2 3/8 in [60mm] (x4) SCREW - 1 1/2"...

  • Page 30: Mounting Bracket

    PowerPort MANUFACTURED BY: Backyard Discovery 3305 Airport Drive Model # 9205413 Pittsburg, KS 66762 Metal Post Mounting Instructions 800-856-4445 A4M01292 9205413 SCREW TAPPING H100746 MOUNTING BRACKET ELECTRICAL ENCLOSURE (x1) 10x1 1/4 (x2) (x4)

  • Page 31: Fcc Marking

    FCC MARKING: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This manual is also suitable for:

AshfordHawthorn2105058b2105065b2105072b
