2.5 Connecting the Network Cable to the Transceiver

2-4

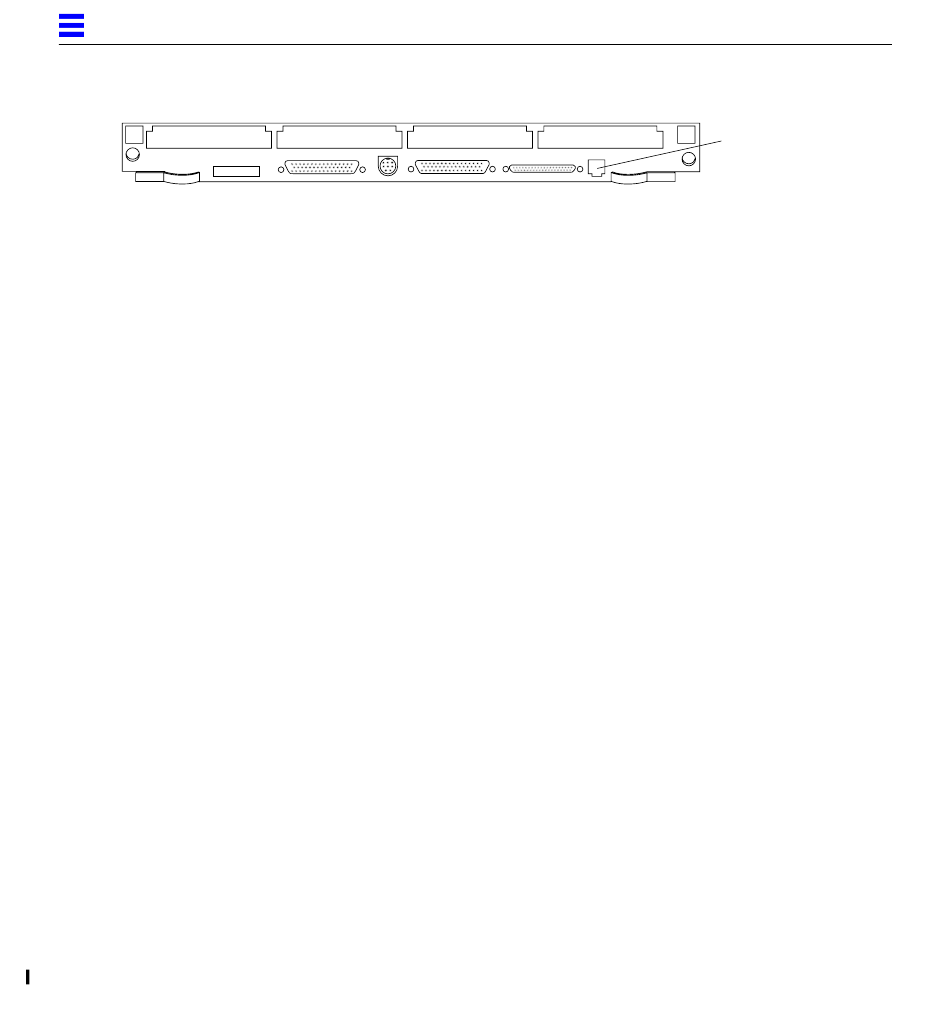

Figure 2-4 10Base-T Ethernet Connection
1. Plug the free end of the network cable into the connector on the twisted-
pair-to-transceiver cable interface box.
2. For Ethernet cables, determine if the cable has N-type screw-on
connectors at the ends.
• If the Ethernet cable lacks N-type connectors at the ends, use a "vampire"
tap to connect the cable to the transceiver. See Figure 2-5. To connect the
cable to the transceiver, use instructions provided with the vampire tap.
• If the Ethernet cable has N-type connectors, connect the Ethernet cable to
the transceiver:
a. Screw the Ethernet coaxial cable into one of the round screw-on type
connectors on the transceiver.
Use either one of the transceiver connectors.
b. Screw the other Ethernet coaxial cable into the other round screw-on
type connector on the transceiver.
Figure 2-5 shows the elements used in the installation process.
Determine if a terminator should be installed. Table 2-1 lists the cabling
limitations for Ethernet.
SPARCserver 1000 System Installation Manual—June 1996
Ethernet port
