Connecting The Network Cable To The Server; Figure 2-2 Ac Power Switch And Power Receptacle - Sun Microsystems SPARCserver 1000 System Installation Manual

AC power switch
AC connector
!

2.4 Connecting the Network Cable to the Server

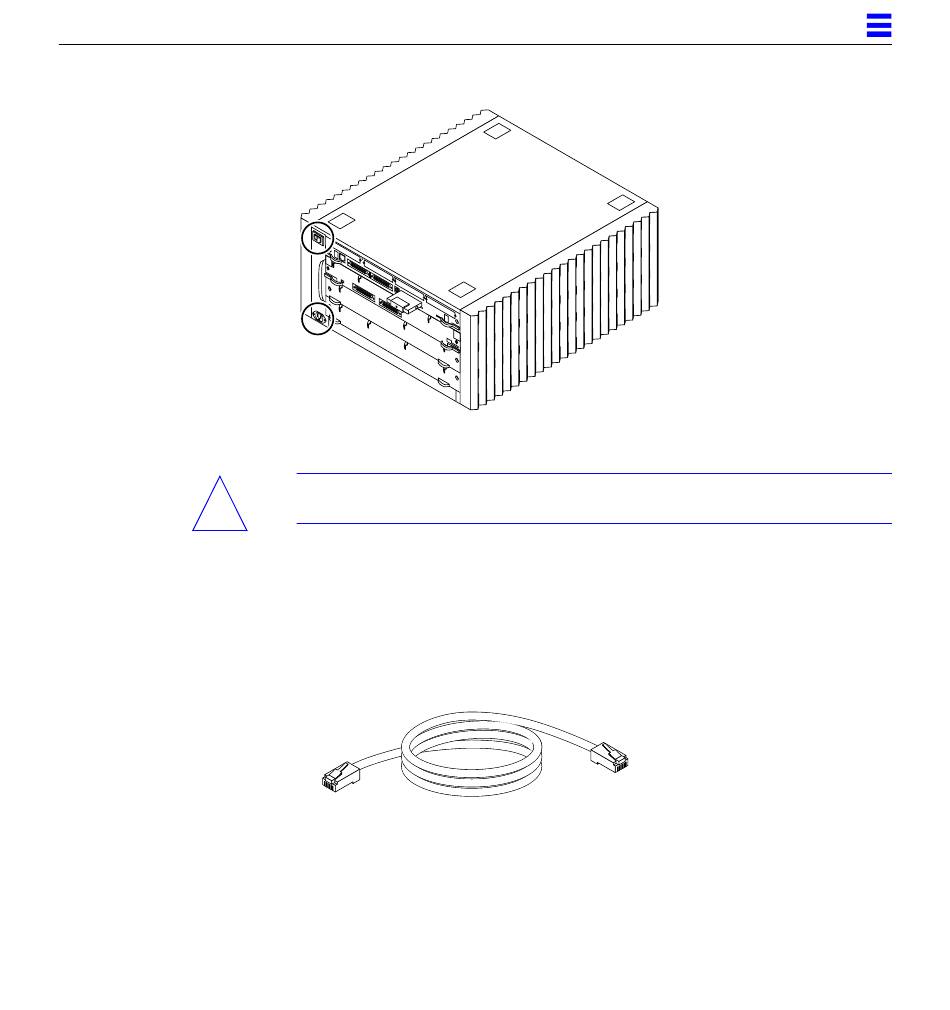

Figure 2-2 AC Power Switch and Power Receptacle
Caution – Do NOT turn on power to the unit yet. To do so could cause system
damage to occur.
The main network interface is incorporated directly on the system board
installed in slot 0 (top slot). To connect the server side of the network cable:
1. Locate a transceiver cable with two RJ-45 connectors.
Figure 2-3 shows one style of Ethernet cable.
Figure 2-3 Transceiver Cable
2. Plug one end of the transceiver cable into the Ethernet port.
The Ethernet port is located on the lower right side of the system board in
card cage slot 0. See Figure 2-4.
Setting Up the System
2
2-3
