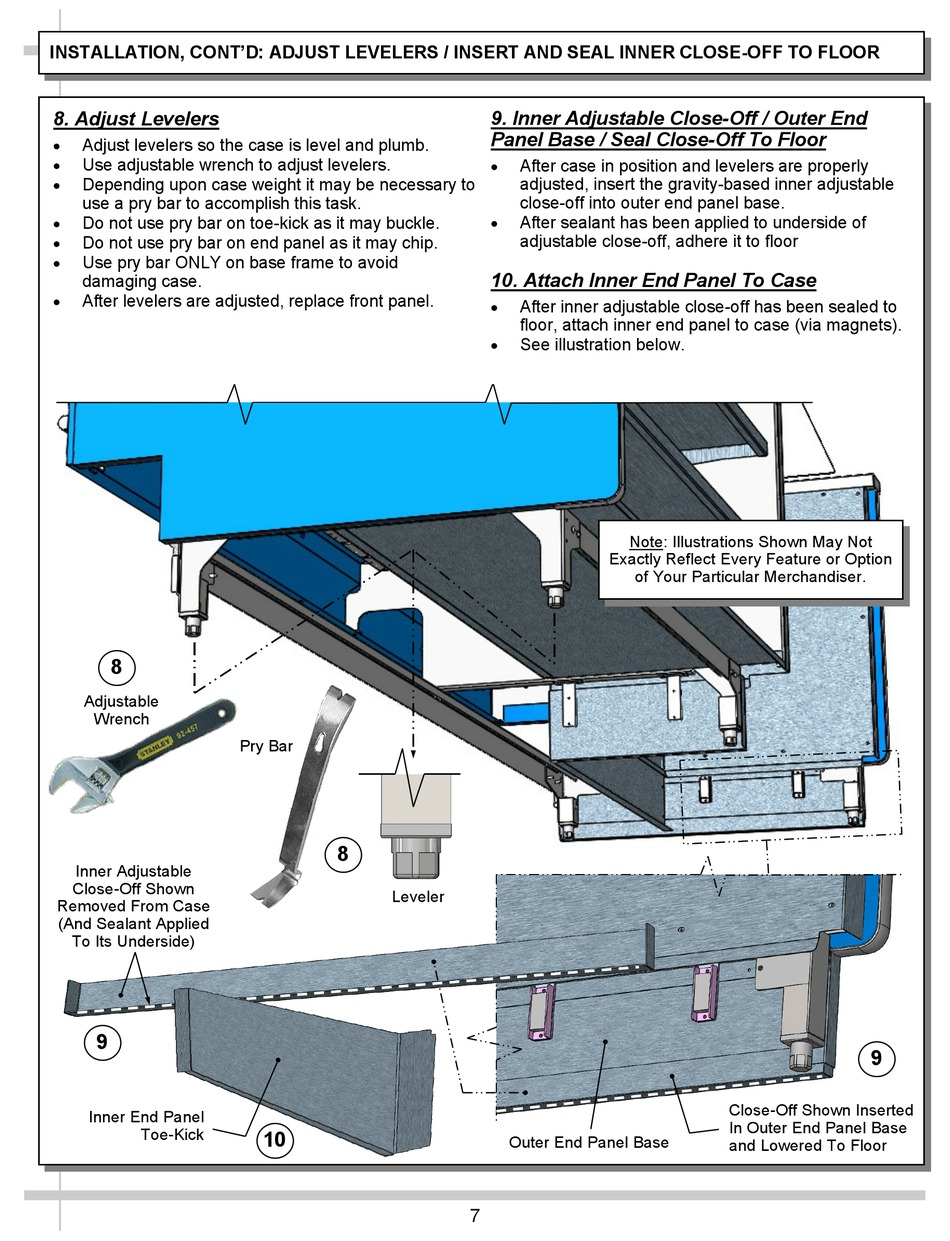

INSTALLATION, CONT'D: ADJUST LEVELERS / INSERT AND SEAL INNER CLOSE-OFF TO FLOOR
8. Adjust Levelers

Adjust levelers so the case is level and plumb.

Use adjustable wrench to adjust levelers.

Depending upon case weight it may be necessary to
use a pry bar to accomplish this task.

Do not use pry bar on toe-kick as it may buckle.

Do not use pry bar on end panel as it may chip.

Use pry bar ONLY on base frame to avoid
damaging case.

After levelers are adjusted, replace front panel.
8
Adjustable
Wrench
Inner Adjustable
Close-Off Shown
Removed From Case
(And Sealant Applied
To Its Underside)
9
Inner End Panel
Toe-Kick
Pry Bar
8
Leveler
10
9. Inner Adjustable Close-Off / Outer End
Panel Base / Seal Close-Off To Floor

After case in position and levelers are properly
adjusted, insert the gravity-based inner adjustable
close-off into outer end panel base.

After sealant has been applied to underside of
adjustable close-off, adhere it to floor
10. Attach Inner End Panel To Case

After inner adjustable close-off has been sealed to
floor, attach inner end panel to case (via magnets).

See illustration below.
Note: Illustrations Shown May Not
Exactly Reflect Every Feature or Option
of Your Particular Merchandiser.
Outer End Panel Base
7 7
9
Close-Off Shown Inserted
In Outer End Panel Base
and Lowered To Floor
