INSTALLATION, CONT'D: WIRING ROUTE FOR MODEL CDR7073 (SIMILAR TO 7073A, 7279 & 7279A)
13. Wiring Route For Model CDR7073 (Similar
To CDR7073A, CDR7279 and CDR7279A)
 This unit is capable of accompanying case-to-
case wiring.

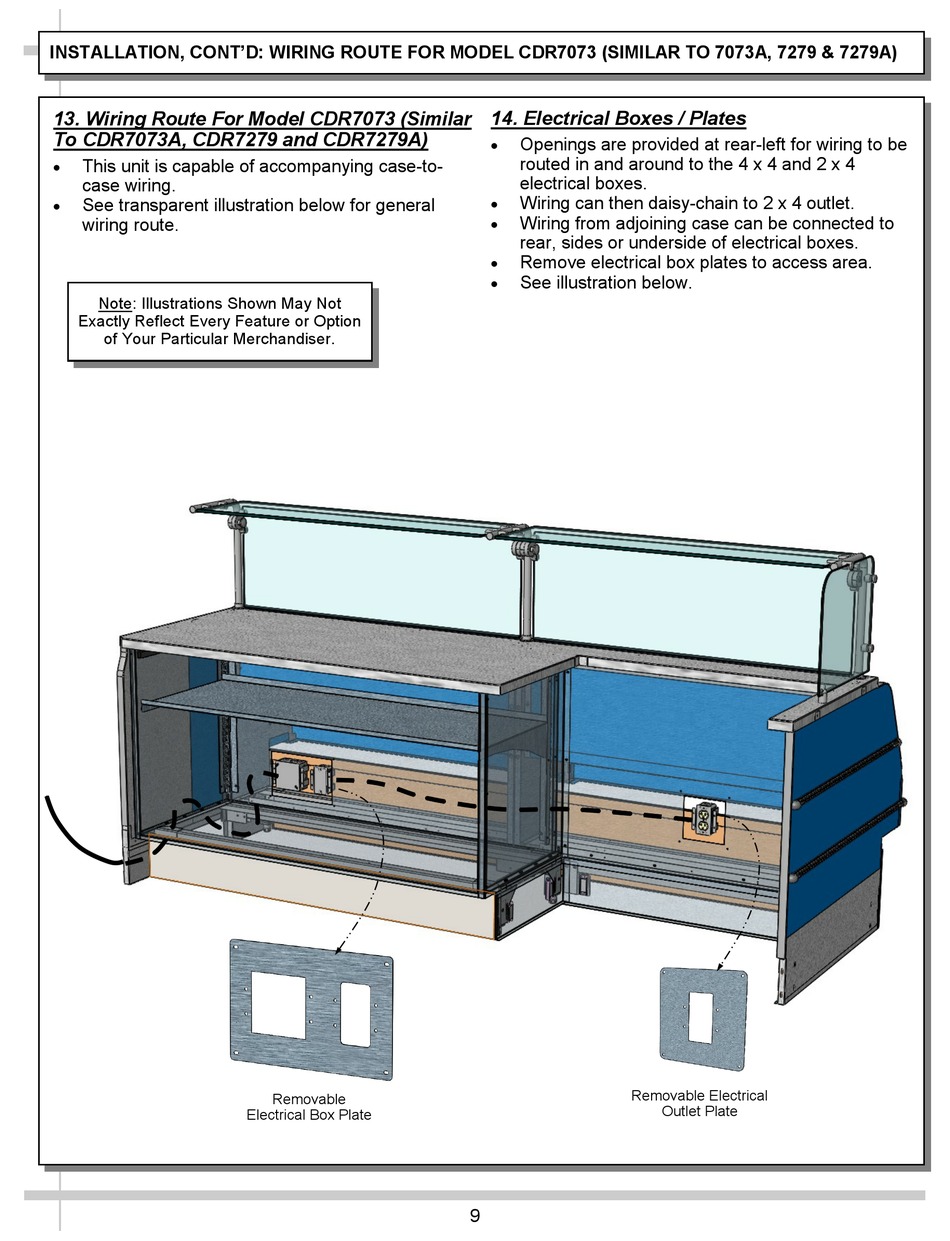

 See transparent illustration below for general
wiring route.
Note: Illustrations Shown May Not
Exactly Reflect Every Feature or Option
of Your Particular Merchandiser.
Removable
Electrical Box Plate
14. Electrical Boxes / Plates
 Openings are provided at rear-left for wiring to be
routed in and around to the 4 x 4 and 2 x 4
electrical boxes.
 Wiring can then daisy-chain to 2 x 4 outlet.
 Wiring from adjoining case can be connected to
rear, sides or underside of electrical boxes.
 Remove electrical box plates to access area.
 See illustration below.
Removable Electrical
9 9
Outlet Plate
