INSTALLATION, CONT'D: WIRING ROUTE FOR MODEL CDR7489

15. Wiring Route For Model CDR7489

This unit is capable of accompanying case-to-
case wiring.

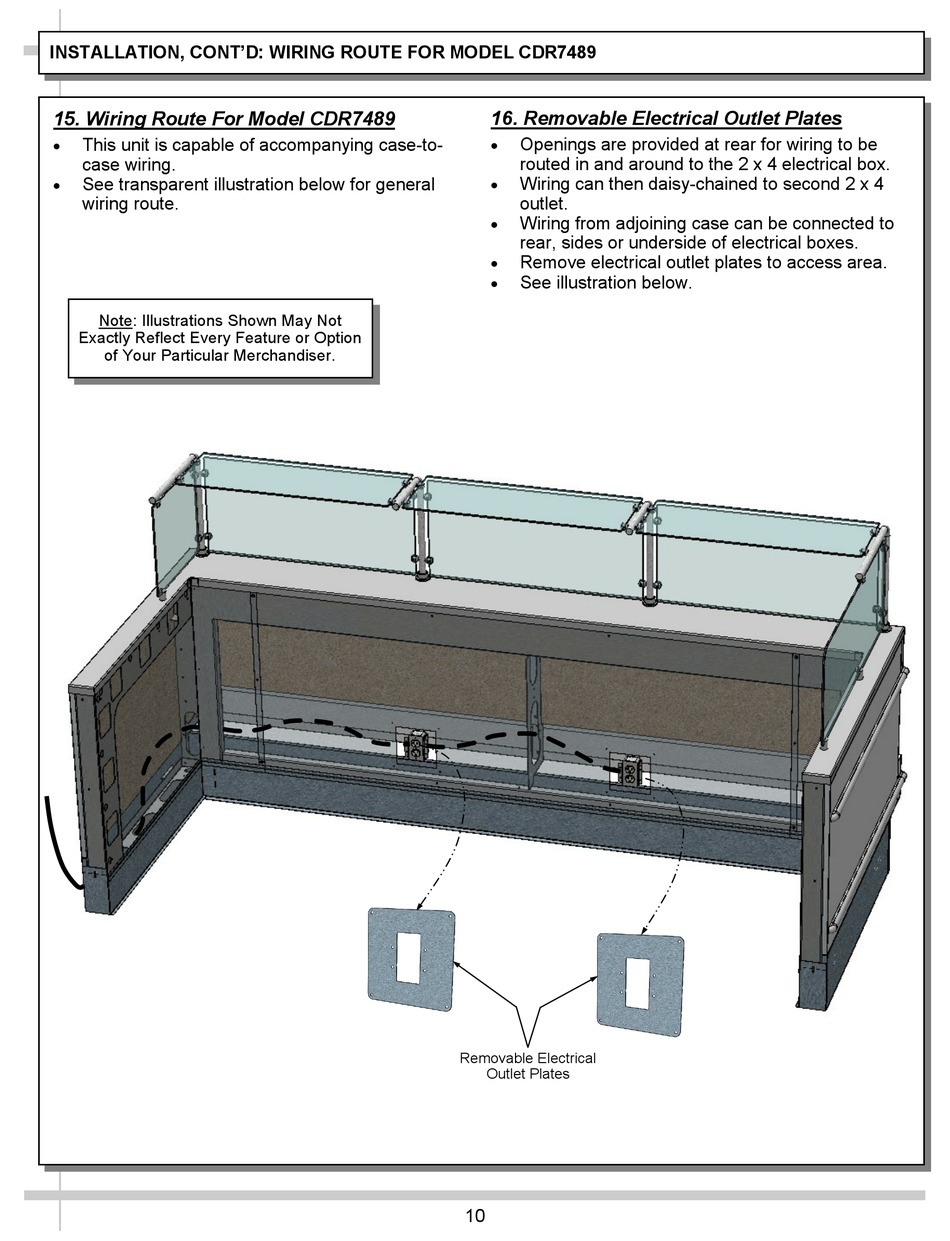

 See transparent illustration below for general
wiring route.
Note: Illustrations Shown May Not
Exactly Reflect Every Feature or Option
of Your Particular Merchandiser.
16. Removable Electrical Outlet Plates
 Openings are provided at rear for wiring to be
routed in and around to the 2 x 4 electrical box.

Wiring can then daisy-chained to second 2 x 4
outlet.
 Wiring from adjoining case can be connected to
rear, sides or underside of electrical boxes.
 Remove electrical outlet plates to access area.
 See illustration below.
Removable Electrical
Outlet Plates
