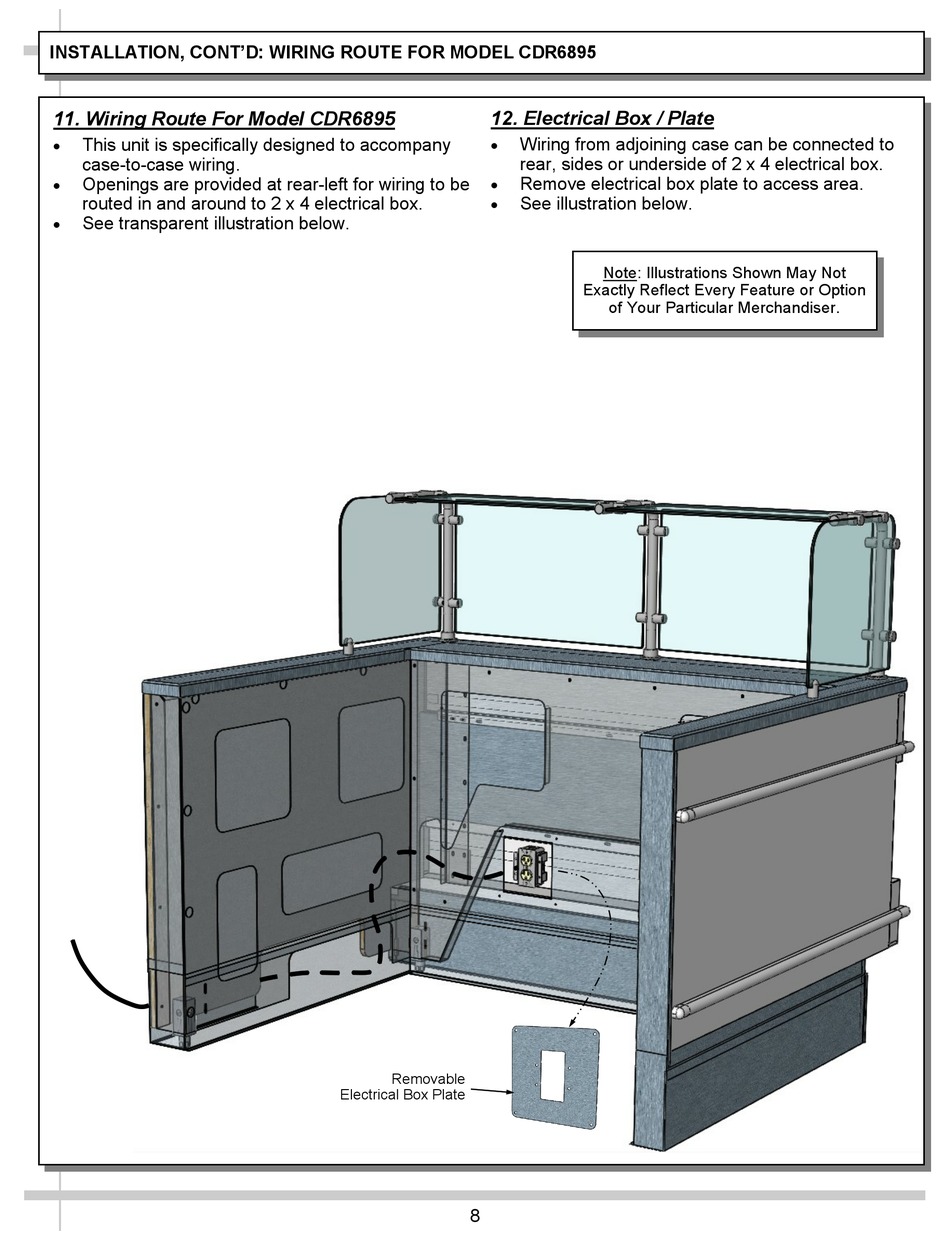

INSTALLATION, CONT'D: WIRING ROUTE FOR MODEL CDR6895

11. Wiring Route For Model CDR6895

This unit is specifically designed to accompany
case-to-case wiring.
 Openings are provided at rear-left for wiring to be
routed in and around to 2 x 4 electrical box.
 See transparent illustration below.
12. Electrical Box / Plate



Removable
Electrical Box Plate
8 8
Wiring from adjoining case can be connected to
rear, sides or underside of 2 x 4 electrical box.
Remove electrical box plate to access area.
See illustration below.
Note: Illustrations Shown May Not
Exactly Reflect Every Feature or Option
of Your Particular Merchandiser.
