USER GUIDE
EE210 - Humidity and Temperature Sensor for
demanding Climate Control Applications
Find this document and further product information on our website at www.epluse.com/ee210.
GENERAL

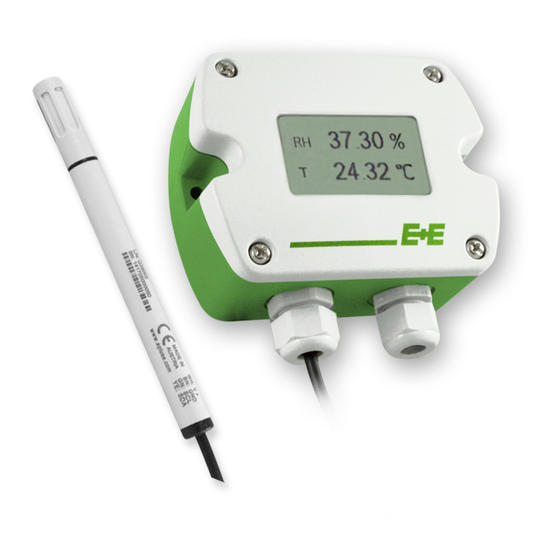

The EE210 sensor which is available for wall or duct mounting, with remote probe as well as an outdoor version, is designed for
highly accurate measurement of humidity and temperature in demanding climate control applications. The EE210 incorporates a
state of the art E+E humidity and temperature sensing element.
For use in special applications do not hesitate to contact E+E Elektronik or a local distributor.
CAUTION
•
For accurate measurement it is essential that the temperature of the probe and mainly of the sensing head is same as the
temperature of the air to measure. Avoid mounting the sensor in a way which creates temperature gradients along the probe.
•
The sensor and mainly the sensing head shall not be exposed to extreme mechanical stress.
•
The sensor must be operated with the filter cap on at all times. Do not touch the sensing element inside the sensing head.
•
While replacing the filter cap (because of pollution for instance) against an original spare one please take very good care to
not touch the sensors.
SCOPE OF SUPPLY
Model
EE210 according ordering guide
Cable gland
Mounting materials
Mounting flange
Inspection certificate according
to DIN EN 10204-3.1
Quick Guide -
EE210 RS485 Setup
* PE210 is not included in the Scope of Supply of the EE210 Type T3
ACCESSORIES
USB configuration adapter
Product configuration software
Radiation shield for EE210 Outdoor (Type T13)
Power supply adapter
Protection cap for 12 mm probe
EE210
EE210
Wall mount / Outdoor
Duct mount
(Type T1 / T13)
(Type T2)
HA011066
EE-PCS
(free download: www.epluse.com/ee210)
HA010501
V03
(see data sheet Accessories)
HA010783
EE210
PE210
with remote
Remote probe* for
probe (Type T3)*
Type T3
(2 pcs.)
Additionally for
all EE210 with
RS485 interface
1
