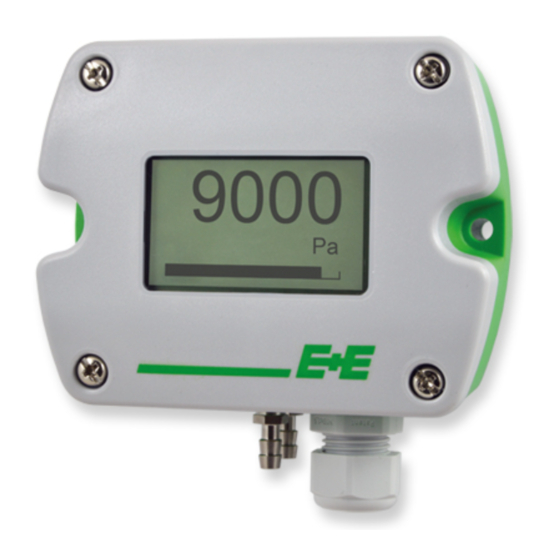

E+E Elektronik EE600 User Manual
Differential pressure sensor
Hide thumbs
Also See for EE600:
- User manual (30 pages) ,
- Operation manual (16 pages) ,
- Quick manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for E+E Elektronik EE600
Summary of Contents for E+E Elektronik EE600

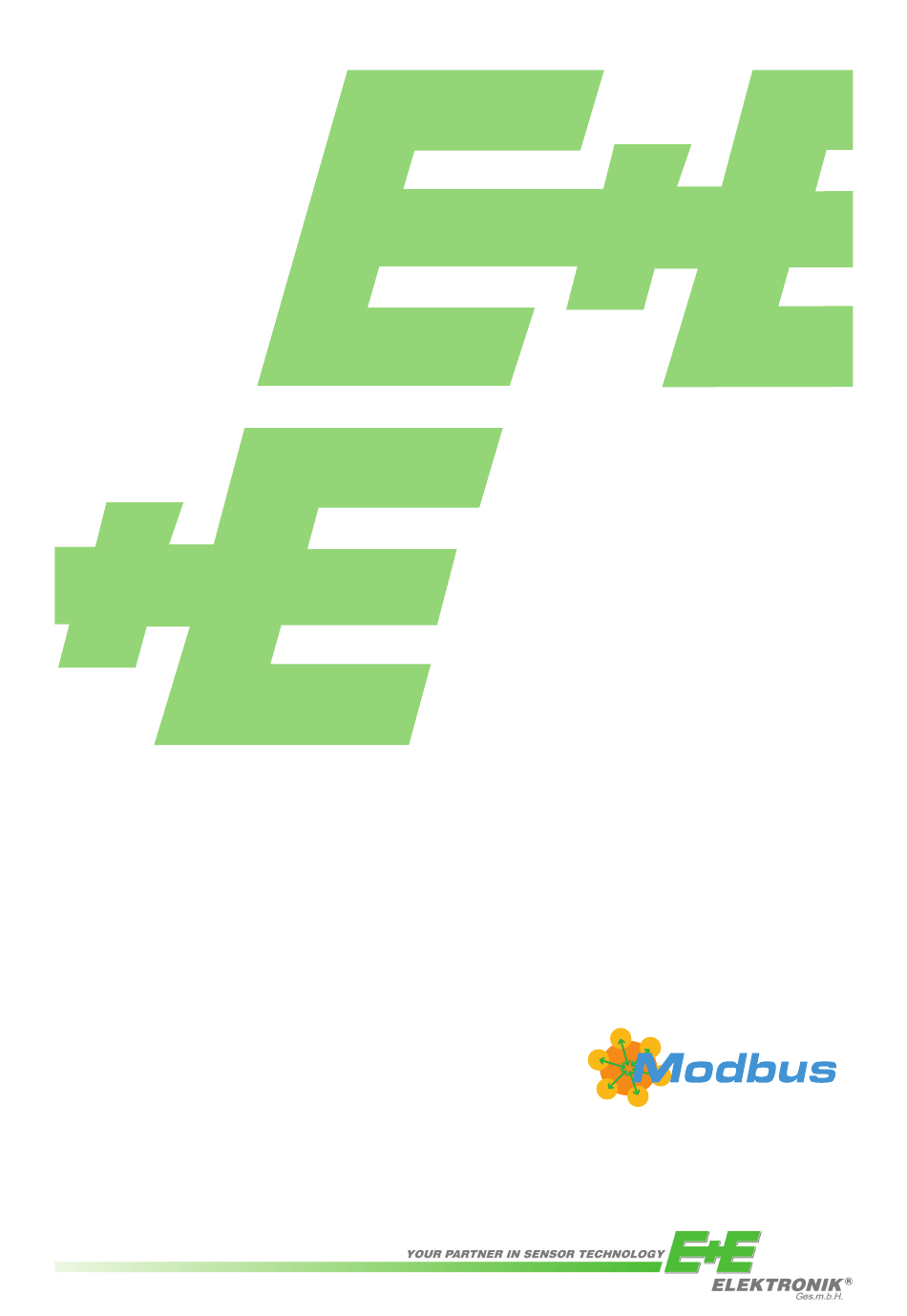

- Page 1 User Manual EE600 Differential Pressure Sensor BA_EE600 // v1.6 // Modification rights reserved...
- Page 2 E+E Elektronik Ges.m.b.H. accept warranty and liability claims neither upon this publication nor in case of improper treatment of the described products. The document may contain technical inaccuracies and typographical errors. The content will be revised and updated on aregular basis. The described products can be improved and changed at any time without prior notice.
-
Page 3: Table Of Contents
Analogue Version with PCS Settings or Digital Version ..................15 PCS10 Product Configuration Software ......................16 5.4.1 Application Settings ............................17 Maintenance and Service .........................18 Cleaning ..............................18 Repairs ................................18 Readjustment of EE600 ..........................18 6.3.1 Zero Point Adjustment ............................18 6.3.2 Span Point Adjustment ............................19 6.3.3 Return to Factory Adjustment ..........................19 6.3.4... -
Page 4: General
This symbol indicates safety information. It is essential that all safety information is strictly observed. Failure to comply with this information can lead to personal injuries or damage to property. E+E Elektronik® assumes no liability if this happens. This symbol indicates instructions. -
Page 5: Environmental Aspects
Environmental Aspects Products from E+E Elektronik® are developed and manufactured observing of all relevant requirements with respect to environment protection. Please observe local regulations for the device disposal. For disposal, the individual components of the device must be separated according to local recycling regulations. -
Page 6: Product Description
Design and components Dimensions FOR CONDUIT Values in mm (inch) INSTALLATION Pressure fittings Ø5 (0.2) high pressure low pressure Pressure connection set is included CABLE GLAND M16x1.5 in the scope of supply. (0.2) Fig. 2 Dimensions User Manual EE600 Differential Pressure Sensor... -
Page 7: Electrial Connection
∆p < scale value low, ∆p > scale value high, -5 % of span +5 % of span Fig. 5 Out of range indication User Manual EE600 Differential Pressure Sensor... -
Page 8: Mounting And Installation
ƒ Use a Ø7.5 mm drill. Connect the pressure hose (included in the scope of supply) first to the EE600 and then to the ƒ nipples at the duct. Route the pressure hose for avoiding sharp bends which might lead to the hose obstruction (Fig. -
Page 9: Setup And Configuration
Mounting examples Setup and Configuration The EE600 is ready to use with its factory settings. The user can change the factory setup with the on- board DIP switches or the PCS10 Product Configuration Software and the USB configuration adapter (order code HA011066), please refer to the chapters below. -
Page 10: Select The Measurement Range With S1 And S2
DIP switches S1 to S9 as described below (S10 does not have any functionality). The function of the DIP switches is also indicated inside the EE600 front cover. 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 Fig. -
Page 11: Select The Source Of Settings With S9 (Auto-Zero Version Only)
Setting the DIP switches to any other address than 0, overrules the default address (43) or the address set via software. Example: Address set to 3 (0000 0011 binary). 0 0 0 1 1 0 0 0 0 0 0 User Manual EE600 Differential Pressure Sensor... -
Page 12: Bacnet Protocol Settings
BACnet Protocol settings The recommended settings for multiple devices in a BACnet MS/TP network are 38 400, 8, None, 1. The EE600 PICS (Product Implementation Conformance Statement) is available on the website at www.epluse.com/ee600. BACnet address, baud rate can be set via: 1. -
Page 13: Modbus Register Map
Device status (bit decoded) 0x259 1) Register number starts from 1. 2) Protocol address starts from 0. 3) For Modbus protocol settings see Application Note Modbus AN0103 (available at www.epluse.com/ee600). 4) See chapter 5.2.7 Device Status Indication. 5.2.4 Modbus Register Map... -
Page 14: Reading Example
3001 (0xBB8) to 3020 (0xBCB), the firmware accesses this configuration area and thus gets the information which measured value/status registers are to be output. A maximum of 10 user-defined registers can be mapped. The table below shows an example: User Manual EE600 Differential Pressure Sensor... -
Page 15: Device Status Indication
With the PCS10 Product Configuration Software and the optional USB configuration adapter HA011066, the user can change the display layout and the visualised parameter according the selected application: Differential pressure measurement Unit: Pa, kPa, mbar, mm H O, inch WC, Layout: one line with limit bar User Manual EE600 Differential Pressure Sensor... -
Page 16: Pcs10 Product Configuration Software
6. Refer to the tutorial available throughout PCS10. Service interface connector HA011066 Fig. 13 EE600 configuration and adjustment Please note: The EE600 may not be connected to any additional power supply when using the USB configuration adapter HA011066. User Manual EE600 Differential Pressure Sensor... -
Page 17: Application Settings
[kg/m Air velocity measurement By entering a k-factor and the dimensions of the duct (round or square), the EE600 is able to calculate the air velocity (v) out of the volume flow (q) and the area of the duct. v = air velocity... -
Page 18: Maintenance And Service
Readjustment of EE600 A periodical readjustment of EE600 might be required by the regulations of certain industries or by the need of best long-term measurement accuracy. The zero point and the span point can be adjusted with push buttons on the EE600 electronics board. -
Page 19: Span Point Adjustment
Important: Make sure to perform a zero point adjustment as above before any span point adjustment. a. Connect the differential pressure reference device/calibrator to the EE600 and set it according to the EE600 span value to be adjusted. b. Note: The span value has to be set according to the selected measurement range. -
Page 20: Technical Data
DIP switches PCS10 Analogue output without auto-zero Analogue output with auto-zero Digital interface without auto-zero Digital interface with auto-zero Configuration options see above or manual at www.epluse.com/ee600. User Manual EE600 Differential Pressure Sensor... - Page 21 UL94 V-0 (with display UL94 HB) approved Electromagnetic compatibility EN 61326-1 EN 61326-2-3 Industrial environment FCC Part15 Class A ICES-003 Class A Shock and vibration Tested according to EN 60068-2-64 and EN 60068-2-27 Conformity User Manual EE600 Differential Pressure Sensor...
- Page 22 HEADQUARTERS SUBSIDIARIES E+E Elektronik Ges.m.b.H. E+E Elektronik China E+E Elektronik Germany E+E Elektronik Korea Langwiesen 7 18F, Kaidi Financial Building, Obere Zeil 2 Suite 2001, Heungdeok IT 4209 Engerwitzdorf No.1088 XiangYin Road 61440 Oberursel Valley Towerdong, 13, Austria 200433 Shanghai Tel.:...
