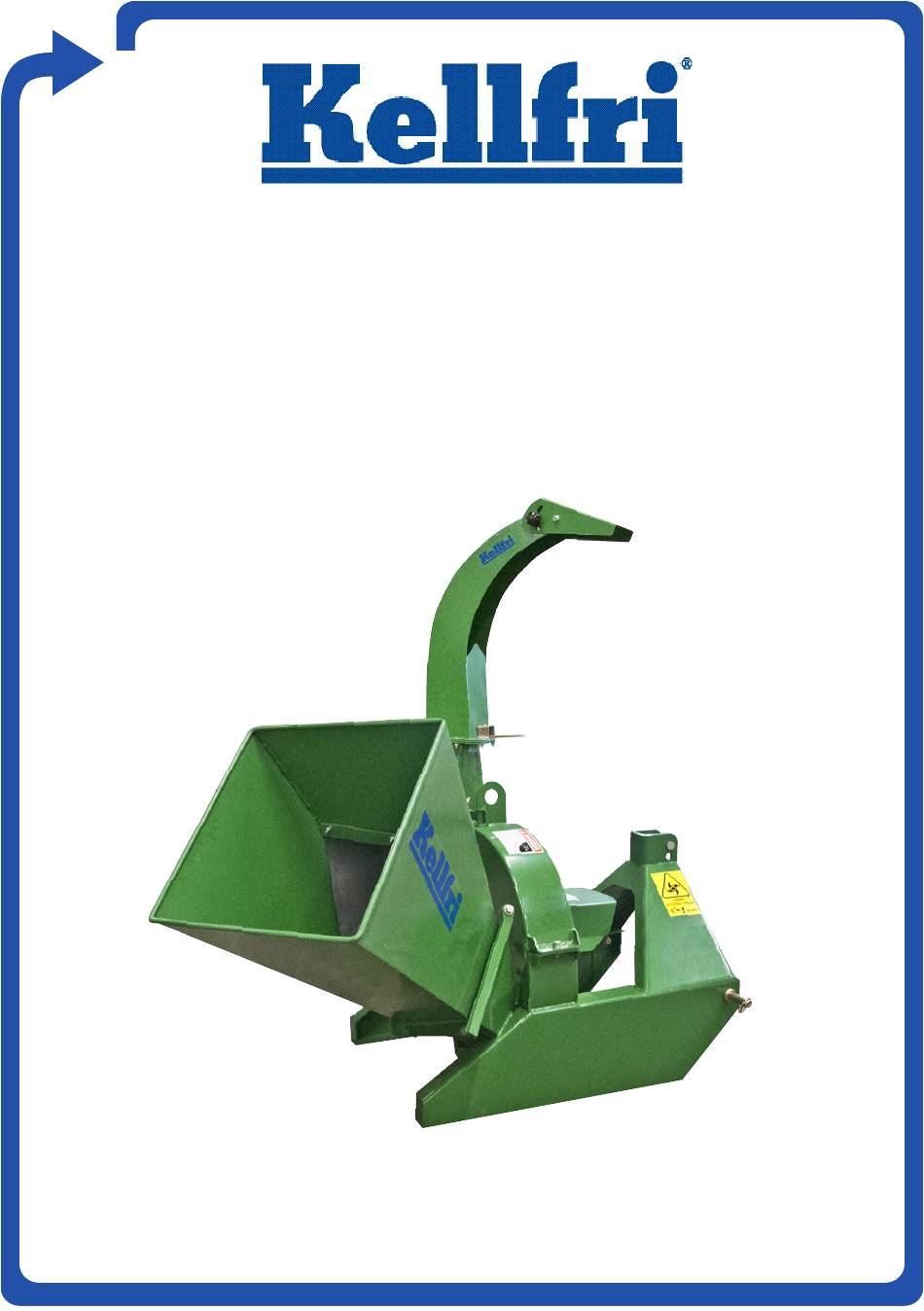

- Page 1 13-WC10 CHIPPER 100 CAREFULLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE PRODUCT! OPERATING INSTRUCTIONS TRANSLATED FROM THE ORIGINAL...
-
Page 2: Product Information
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following the general safety information and the instruction manual and by using common sense, you will have a great and safety use of your Kellfri product for many years. Kellfri designs and delivers effective, affordable ma- chinery and components for forest, agriculture,construction and gardening in Sweden, other Nordic countries and Europe. -
Page 3: Product Safety Information
Your retailer The general safety instruction is also available from Kellfris website: www.kellfri.co.uk Do not use this equipment if you are feeling sick, tired or in influence of alcohol. Nor if you are under the influence of strong medications or drugs, suffering from strong depression or severe mental illness. -
Page 4: Incase Of Emergencies
INCASE OF EMERGENCIES In case of an emergency please dial 112. Keep cell phone or emergency phone available specially when working alone. First aid kit and fire extinguishers must be kept easily accesable during all work, maintenance and service. PERSONAL PROTECTION Always use suitable protection equipment. -
Page 5: Warning Decals
WARNING DECALS Ensure that warning labels are always visible and clean. Clean the warning labels as required. Do not rinse using pressure washer directly on the warning labels. Any damage/ brokenstick- ers should be replace. Order new stickers from your supplier. SYMBOL EXPLANATION LOCATION... - Page 6 SAFETY MEASURES BEFORE OPERATING Please read the safety information and operating instructions carefully. Make sure that you understand the safety information, operating instructions and warning decals. Use common sense when using the implement and use the appropriate personal protective equipment Al- ways check the performance of the machine combination that will be used.
-
Page 7: Coupling And Uncoupling
COUPLING AND UNCOUPLING • Couple the implement to the tractor’s rear three-point hitch. • Connecting PTO-shaft. Adjust the length, if necessary. (See PTO-shaft manual) • Anchor the chain well. • Ready for use. UNCOUPLING • Reduced tractor engine speed to idle, turn off the engine. •... -
Page 8: Transport And Storing
TRANSPORT AND STORING Check that the work area is free from bystanders, children and objects before driving off. Al- ways observe additional caution during transport and moving. Ensure that the equipment or product is well anchored and existing transport lashings are fitted. Always position the load as low as possible. - Page 9 Description Replacement parts Screen ART. NO DESCRIPTION Chute R13-WC10.001 Knife Chipper 100 Top cover R13-WC10.002 Bearing Chipper UCF208 Lower cover R13-WC10.003 Distance Ring chute Hopper R13-WC10.004 Distance Ring chute Cutting disc R13-WC10.005 Distance Ring chute Knife Stock R13-WC10.006 Twig breaker PTO-shaft protection R13-WC10.007 Counterweight...
-
Page 10: Mounting Instruction
ADJUSTING THE CHIP LENGTH It is the distance between the cutting knives and the counter knife which determines the chip size. Wood chips size is set by moving the cutting knife inward or outward. The greater the distance is between the blades, the larger chips you get. IMPORTANT! When adjusting the knives, it is important that the cutting blades do not touch the counter knife and cutting distance is the same on all of them. - Page 11 MOUNTING THE CHUTE The narrow plate must be above the It should be 2 spacers between the other and washers must be placed discharge chute and lower part of the on top. ejector. Spacers are divided into two parts (half moon) Mount the distance, do not forget the washers.
- Page 13 Description Amount Description Amount Screen flange bearings UCF208 Locking nut - Screen Washer Ø14 chute Lock Washer Ø14 Bolt M6x25 Bolt M14x40 Bolt M6x20 Bolt M12x30 nut M6 Washer Ø12 Adjustment lever nut M12 spacer ring Lower strutt spacer ring Anvils - knife spacer ring Washer Ø8x24x2...
- Page 15 Complaint form We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine.
-
Page 16: Warranty Terms And Conditions
Other equipment must meet the hardware requirements of the Directive. Tina Baudtler, VD 2015-07-13 Kellfri AB is constantly working on further developing their products and therefore reservesthe right to modify, among other things the design and appearance without notice. CUSTOMER SERVICE You are always welcome to give your feedbacks, reviews or ask us about our tools and products.
