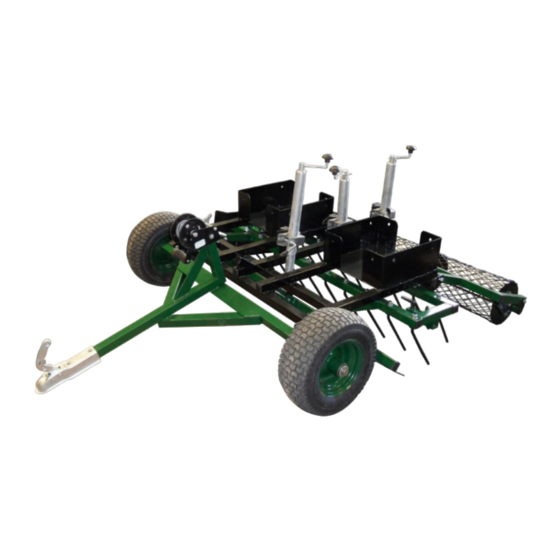

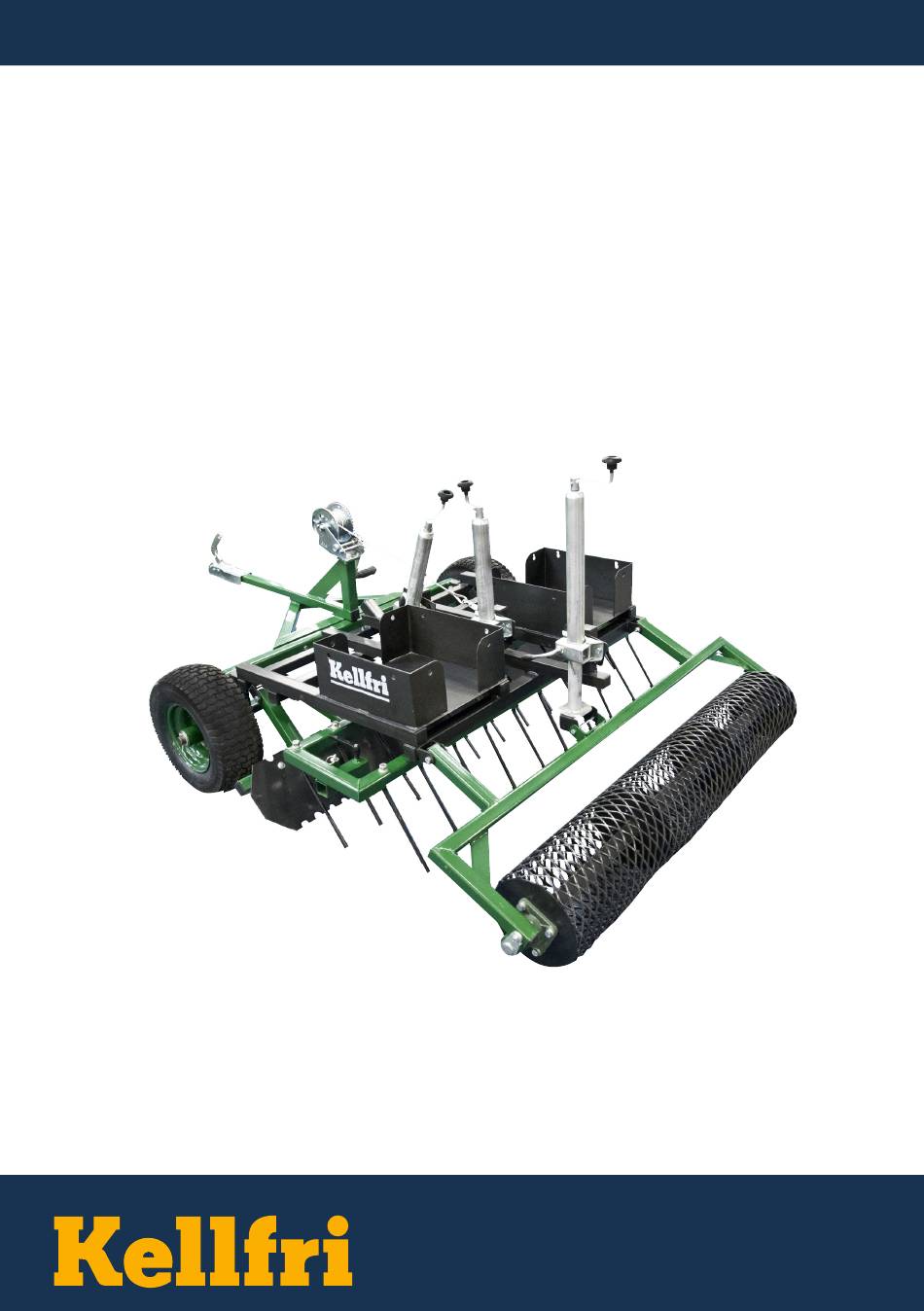

- Page 1 28-RBH PADDOCK HARROW ATV/QUAD Read this manual carefully before using the product! Translated from the original...
-
Page 2: Ntended Use
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following the general safety information, instruction manual and common sense, you will get many years of enjoyable use of the prod- uct. Kellfri’s tools and machines are aimed for farmers with high demands on functionality. -
Page 3: Product Safety Instructions
Kellfri AB, Munkatorpsgatan 6, 532 37 SKARA Sweden. Tel.: +46 (0)511 242 50 (Pls. contact the retailer) https://www.kellfri.co.uk/ Do not use the equipment or product if you feel ill, tired or are under the influence of alcohol. -
Page 4: Warning Decals
INSTRUCTION FOR EMERGENCIES In case of an emergency please dial 112. Keep cell phone or emergency phone available specially when working alone. First aid kit and fire extinguishers must be kept easily accessible during all work, maintenance and service. To stop winch movements, release the starter cord. -
Page 5: Personal Protective Equipment
PERSONAL PROTECTIVE EQUIPMENT Wear suitable clothing and footwear. Do not wear loose clothing or jewelry when working with the equipment. Remember to put up long hair when working with equipment that rotates. SURROUNDINGS Check and make sure that the area is clear of people, children and objects before switching on or using the equipment. -
Page 6: Operating The Machine
CONNECTING THE MACHINE TO ATV • Check the product if it’s damaged before connecting it to the vehicle. Repair if necessary. • Connect the harrow onto the ATV. Make sure that the machine cannot come off. • Set the desired angle of the different functions; rossboard, harrow tines and roller. •... -
Page 7: Transport And Storing
Worn parts shall be replaced. Disconnect the machine from the vehicle when repairing any parts. • Rinse the machine with water if necessary. AFTER USE When the machine is not in use, store it underneath a cover. It’ll extend the lifespan of the product. For parts: Contact Kellfri Service... - Page 8 ASSEMBLY Checklist all parts: (A) 1x roller (B) 1x attachment for the roller (C) 1x frame with harrows (D) 1x side scraper and wheel (E) 1x board Bolt M10x70 (12pcs) + plain washer and nut (F) 1x attachement for the board (G) 3x crank (H) 1x...
- Page 9 ASSEMBLY I It is recommended that the assembly of the paddock harrow be carried out by 2 persons due to its weight. After assembly, check that all bolts are tightened. Harrow tines and crossboard are mounted under the frame with weight boxes...
- Page 10 ASSEMBLY II: ROLLER Lossen the screw and pull out the pin. Install the pin through the hole, then secure with a bolt (marked in the picture). Do the same procedure on the other side...
- Page 11 Middel part: Frame with boxes Tines Crossboard Side scraper Assembly of the front part to the middle part 2pcs M10x70 Rear part: Roller Front: Drawbar Wheel Winsch Install the crossboard onto the frame with carriage bolts Assembly of the rear part to the middle part 2pcs M10x70 M10x65 (5pcs)
- Page 12 ASSEMBLY OF WHEELS 2PCS AND CRANK HANDLES 3PCS Install Crank handle- 3pcs use M10x25 When mounting the wheels use a plain washer (large) and 1 cotterpin 4x60mm...
- Page 13 Side scrapers can be mounted on either side of the harrow. Tighten all bolts after the assembly.
-
Page 14: Spare Parts
SPARE PARTS POS.No ART.No. Name R13-RHB.001 Blade R13-RHB.002 Roller R13-RHB.003 Wheel R13-RHB.004 Crank handle - wheel adjustment R13-RHB.005 Tine R13-RHB.006 Winsch R13-RHB.007 Side scrape... -
Page 15: Complaint Form
COMPLAINT FORM We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 16: Ec Declaration Of Conformity (Original)
You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
