INSTALLATION (Continued)
a. Strip insulation 3/4 in. (19 mm).
b. With wire ends even, insert wires into the connector and tighten until secure.
c. Insert the connector all the way into the tube until the connector rests on the bottom
of the tube.
NOTE: If having difficulty getting the twist-on connector down into the tube when using
small gauge wires, use a thin, non-conductive object to push the connector to the bottom
of the tube. Upon removal of the object, ensure that no voids or water paths remain in
the grease.
d. Fold the wires into the channels.
e. Close the cap

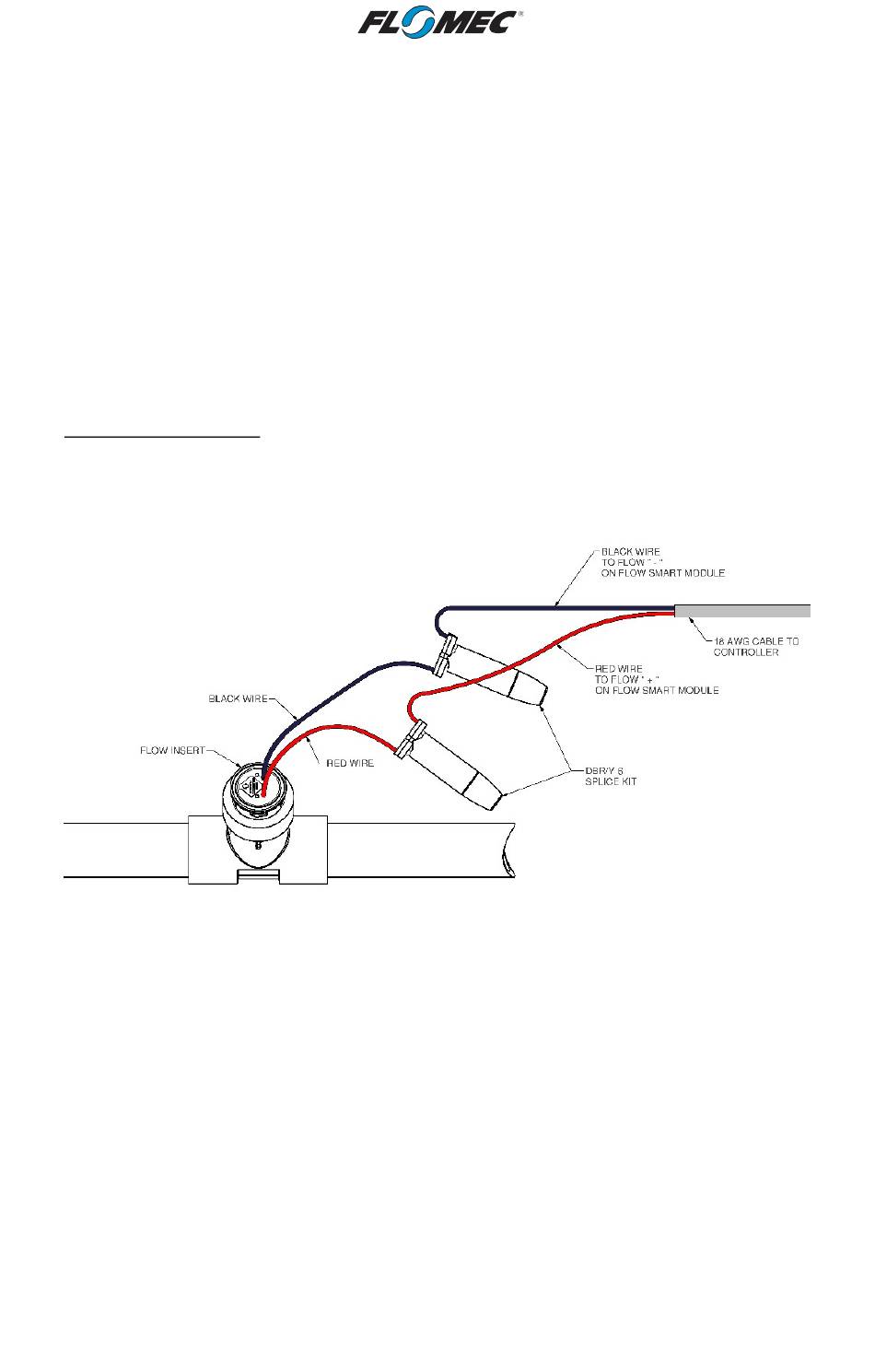

Wiring Connections
This diagram shows connection to a RAIN BIRD® Flow Smart Module. Connections to other
flow controllers may vary.
Figure 9
