INSTALLATION (Continued)
1. Remove all burrs from the pipe ends I.D. and O.D. edges and the Tee sockets I.D.
edges (see Figure 4).
2. Clean and apply primer to the pipe ends and Tee sockets (see Figure 5)
3. Apply PVC cement to pipe ends and Tee sockets and quickly assemble the parts while
the cement is fluid. Follow the cement manufacturer's instructions (see Figure 6).
4. Hold the cemented parts together for at least 30 seconds.

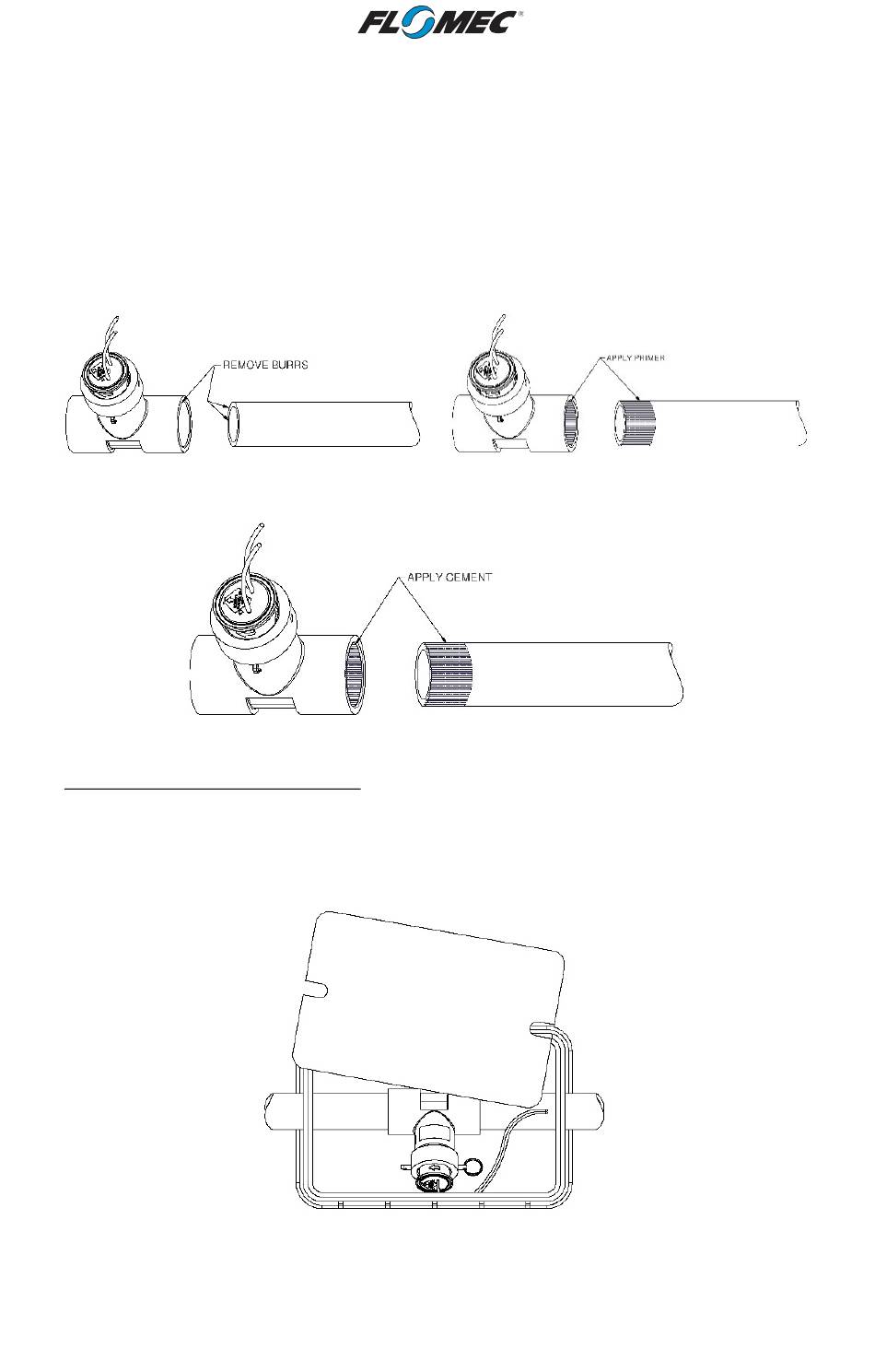

Figure 4
Figure 6
For Below Ground Installation
Install a valve box around the insert. Valve box extensions may be needed, depending on
depth (see Figure 7).
NOTE: A minimum of 10 in. thick layer of gravel should be installed immediately below the
meter and valve box.
Figure 7
Figure 5
