INSTALLATION (Continued)
Wiring Connections
NOTE: Wiring diagram is shown in next section.
1. When using 18 AWG cable, cut off the unused wires so that they are even with the
sheath of the cable.
NOTE: For 18 AWG connections, remember the color of the wires you use so that you can
make an identical connection with the same wires later.

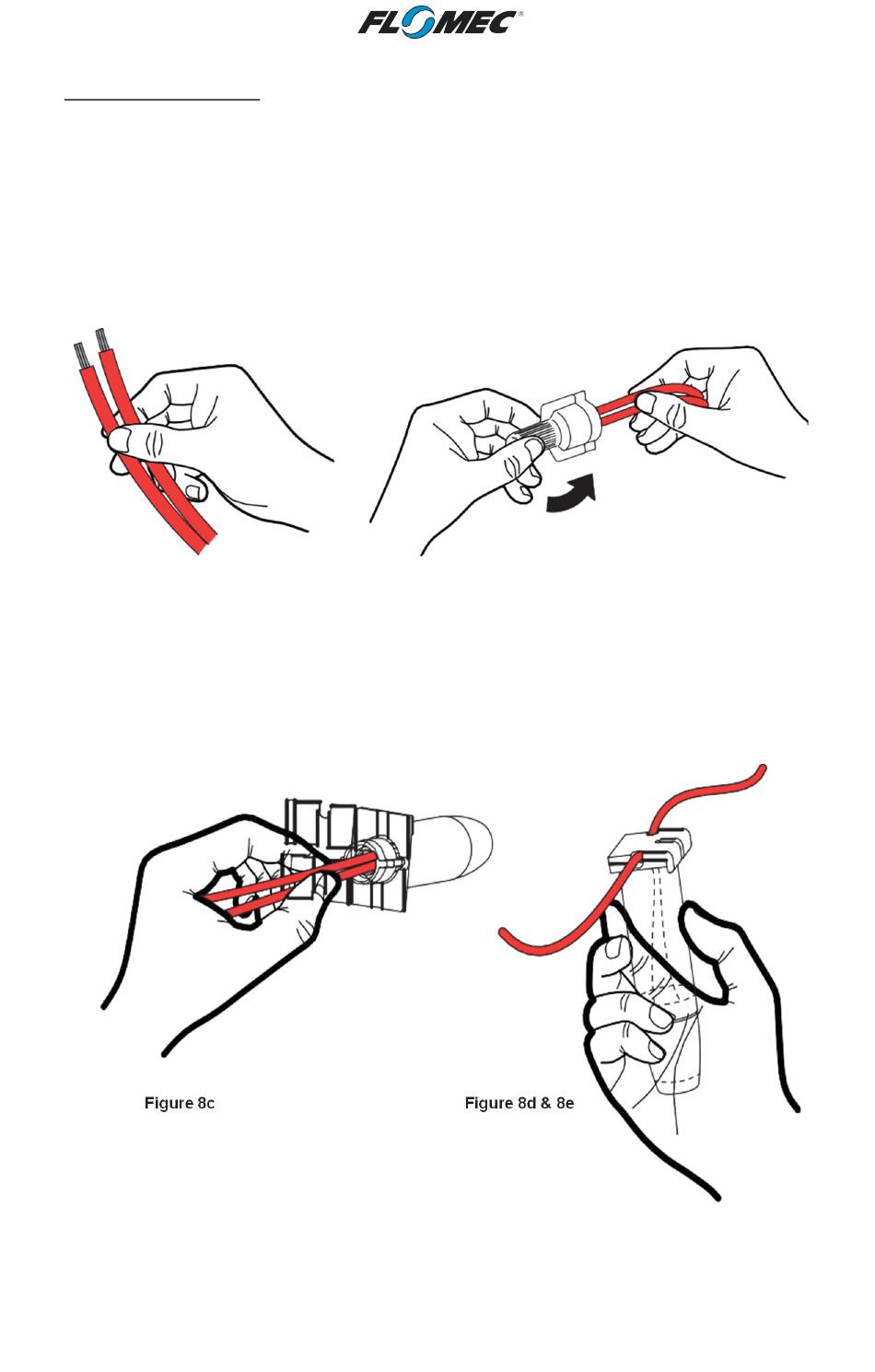

2. 3M DBR/Y-6 Splice Kit Instructions:
Figure 8a
Figure 8c
Figure 8b
Figure 8d & 8e
