3. Controller Input And Outputs

03
01
04
02

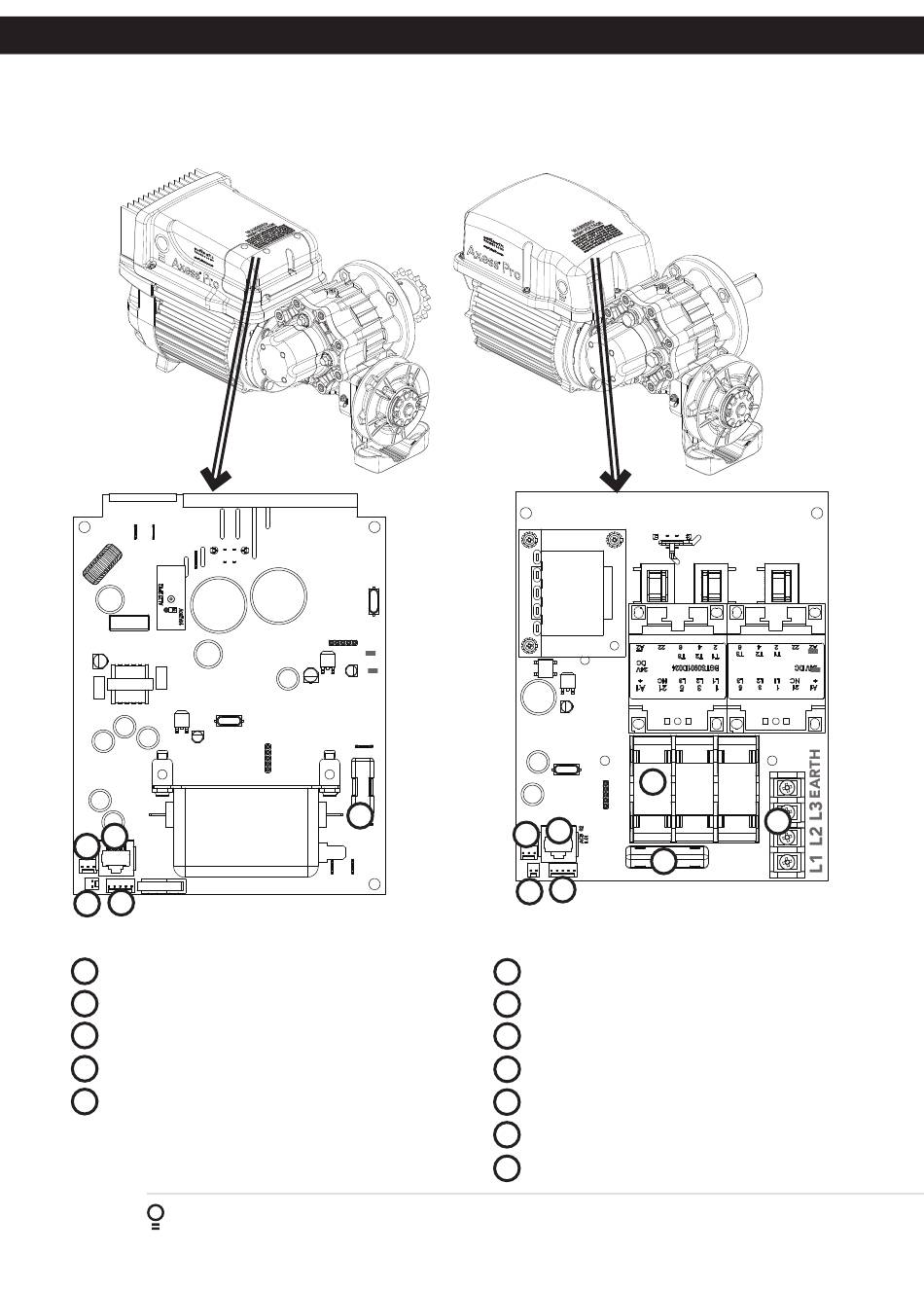

Fig 3.2 - AX3105 & AX3110
Motor identification harness connector
01
Clutch interlock microswitch connector
02
Serial interface connector
03
Position sensor connector
04
10 Amps slow blow mains fuse
05
6 Axess Pro Series 3000
Fig 3.1
05
Owner Installation Instructions
05
03
01
06
04
02
Fig 3.3 - AX3305, AX3310 & AX3315
Motor identification harness connector
01
Clutch interlock microswitch connector
02
Serial interface connector
03
Position sensor connector
04
FLQ10 - 500Vac time delayed fuse x 3
05
TDC11- 250mA 1000Vac slow blow fuse
06
3-phase 415Vac mains input terminal
07
07
