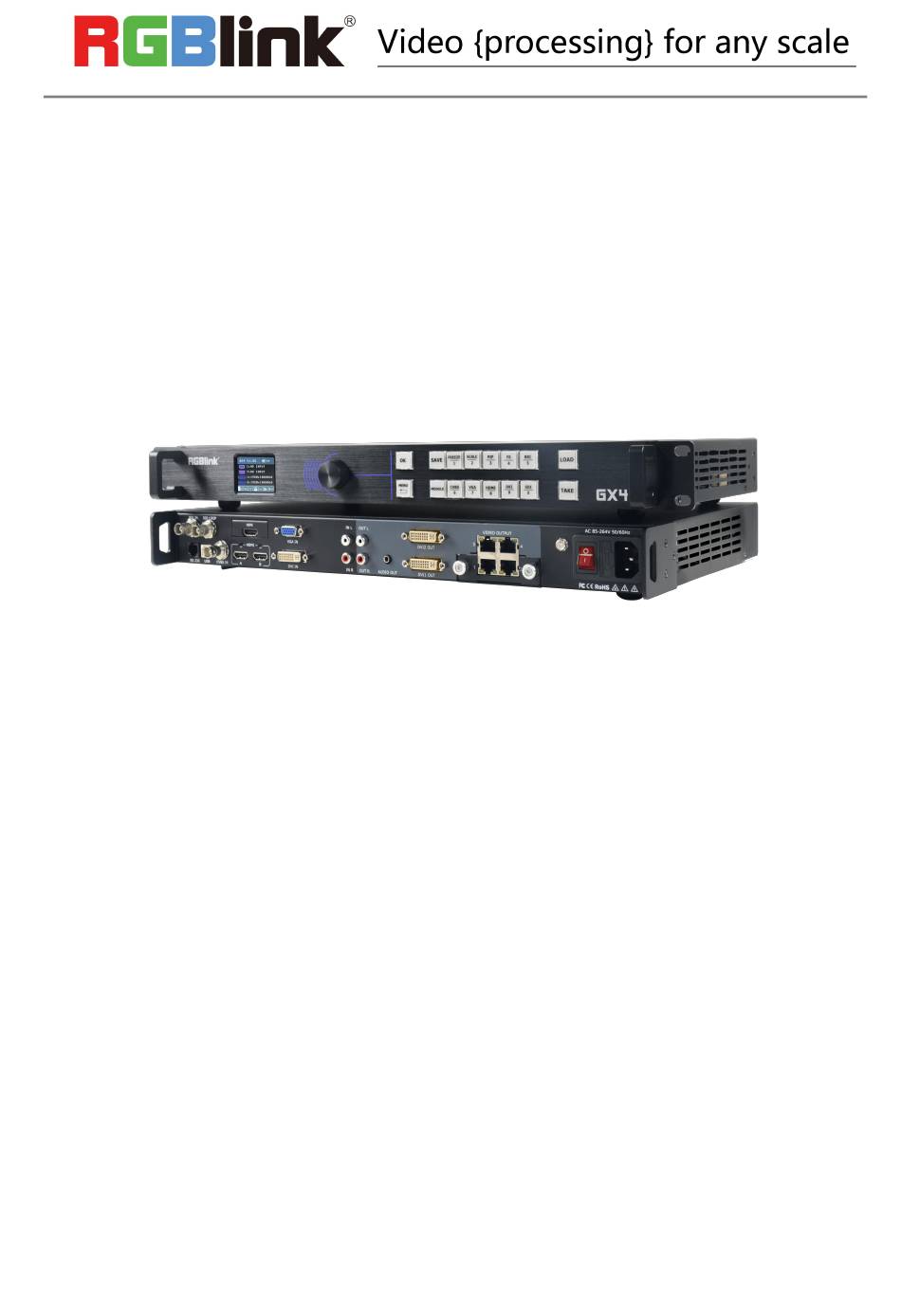

GX4 Quick Start
● Dedicated RGBlink Subito™ Quatro Sender
● Support for up to 2.6 mega pixels
● Seamless witching between any input
● Picture-in-Picture (PIP)
● Transition effects
● RGBlink instant TAKE with pre-Sync
● Audio controls
● Support for additional input options
● EDID management on board
● On board test patterns
● Support for multi-device cascade
● Compact 1U footprint

Advertisement

Table of Contents
loading

Related Manuals for RGBlink GX4

Summary of Contents for RGBlink GX4

  • Page 1 GX4 Quick Start ● Dedicated RGBlink Subito™ Quatro Sender ● Support for up to 2.6 mega pixels ● Seamless witching between any input ● Picture-in-Picture (PIP) ● Transition effects ● RGBlink instant TAKE with pre-Sync ● Audio controls ● Support for additional input options ●...

  • Page 2: Table Of Contents

    System................................19 Language................................20 Factory Reset..............................20 【TAKE】Button..............................21 【PIP】Button..............................23 【SCALE】Button..............................24 【FREEZE】Button............................25 【BRI】Button..............................25 【SAVE】Button..............................26 【LOAD】Button...............................27 Load LED Configuration File..........................28 CONTACT INFORMATION...........................31 © Xiamen RGBlink Science & Technology Co., Ltd. 1 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 3: Overview

    3840 pixels or vertical 2048 pixels, through 4 RJ45 ports. GX4 supports DVI output resolution at 2048x1152@60 and offers multiple test pattern output resolution options. Beside standard with a 1 HDMI (with loop), 1 CVBS, 1 VGA, 1 DVI and 1 pair of Audio analog connectors, it also comes with two empty module slots for any single input modules selecting from HDMI,DP,DVI,SDI,VGA,CVBS and USB modules.

  • Page 4: Packing Configuration

    USB Cable AC Power Cord HDMI to DVI Anti-Static Bag Cable Note: AC Power Cable supplied as standard according to destination market. © Xiamen RGBlink Science & Technology Co., Ltd. 3 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 5: Hardware Orientation

    Picture in picture, digit 3 Select SDI input signal, digit 0 Full screen, digit 4 Switch mode Image adjustment, digit 5 Load the saved setting © Xiamen RGBlink Science & Technology Co., Ltd. 4 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 6: Rear Panel

    DVI Output VGA input Subito Sender CVBS Input CONTROL PORT HDMI In/Loop DVI input USB-A Audio input RS232 POWER Power switch Power IEC-3 © Xiamen RGBlink Science & Technology Co., Ltd. 5 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 7: Menu Tree

    Menu Tree © Xiamen RGBlink Science & Technology Co., Ltd. 6 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 8: Use Your Product

    USE YOUR PRODUCT LED Configuration GX4 is built in Subito Sender which can control LED screen with RBGLink receivers. Here is the led configuration sub-menu. >QUICK CONNECT >> ADVANCED >> 1. QUICK CONNECT >SEND CARD SET >> RECEIVE CARD SET >>...
  • Page 9 2.4 CLS SWITCH:Clean LED screen Switch when the switch is ON, the LED screen will be black. 2.5 LOCK SWITCH: lock the Led screen, when the it is ON, the led screen will be frozen. © Xiamen RGBlink Science & Technology Co., Ltd. 8 / 32 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 10 PREINSTALL FILE >> Users can load LED configuration files from LED manufacturers to the GX4 devices by XTOOL. There are 15 manufacturers items in the sub-menu and each manufacture can store 16 files. 270 files in total allow to be loaded.

  • Page 11: Output

    Put in the numbers for height and frame rate in the same way. For example setting resolution 1450x900@60, here are the steps: Customize : Customize *1450x0000@00 *1920x1020@60 © Xiamen RGBlink Science & Technology Co., Ltd. 10 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 12 H POS:horizontal position, default 0, set the value as the way of H SIZE and V SIZE. V POS:vertical position, default 0, set the value as the way of H SIZE and V SIZE. © Xiamen RGBlink Science & Technology Co., Ltd. 11 / 32 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 13 Select <SELECT> in 【PIP】menu, push【OK】 turn Knob to select”IMAGE B”, Push <SCALE> to set the size and position of ”IMAGE B” which the VGA picture in this case. LAYOUT PIP L+B SWAP PICTURE ALPHA >SELECT IMAGE © Xiamen RGBlink Science & Technology Co., Ltd. 12 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 14 7. DISPLAY MODE MODE：BLACK OUT, LIVE IMAGE, FREEZE IMAGE, >MODE LIVE IMAGE TEST PATTERN 》 SOLID COLOR, TEST PATTERN SOLID COLOR 》 © Xiamen RGBlink Science & Technology Co., Ltd. 13 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 15 VER STEP:vertical color graduation value 0-64 COLOR WHITE COLOR:WHITE, BLUE, GREEN, RED. SOLID COLOR RED,GREEN,BLUE: value 0-255 GREEN BLUE 8.GAMMA：LINEAR,sRGB, -1.2, 1.2, -1.4, 1.4, -1.6, 1.6 © Xiamen RGBlink Science & Technology Co., Ltd. 14 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 16: Input

    ADJUST parameter. Users can also go to <AUTO AJUST> by pressing 【VGA】button for 10s. H POS V POS CLOCK PHASE >AUTO ADJUST © Xiamen RGBlink Science & Technology Co., Ltd. 15 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 17 8.DVI4In1 DVI 4 In 1) GX4 with optional DVI module installed comes with such signal types as VGA, DVI, CVBS, YPbPr. It is offered to users to choose the signal type through the DVI connector which is compatible with VGA, DVI, CVBS, YPbPr via adapter.

  • Page 18: Transition

    AUDIO IN:select the source of the input audio from IMAGE A or IMAGE B HDMI:select internal or external audio for HMDI input © Xiamen RGBlink Science & Technology Co., Ltd. 17 / 32 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 19: Split

    Split GX4 can be used in multiple cascade mode to finish split. When do cascade, connect the signals to the signal distributor first, and then connect from the outputs of the signal distributor to each input of GX4. User can also do cascade via HDMI LOOP port.

  • Page 20: System

    Chose Hot Backup On and choose one input source for the each backup. Up to 5 backups can be set Backup_5 Hot Backup Backup_1 Backup_2 Backup_3 CVBS Backup_4 HDMI © Xiamen RGBlink Science & Technology Co., Ltd. 19 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 21: Language

    To swithc langue here. English or Chinese available. Or Keep pressing MENU and SCALE button for 3 S to switch language. Factory Reset FACTORY RESET YES <OK>, NO <MENU> © Xiamen RGBlink Science & Technology Co., Ltd. 20 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 22: Take】Button

    【TAKE】Button When GX4 power on, system default HDMI input signal. To switch signal, press CVBS,VGA,DVI or SDI. For example, to switch to CVBS, push【CVBS】 button and the button flashes. TAKE MODE allow users to switch inputs with transition effect To EnableTAKE mode , Keep pressing...
  • Page 23 Then push TAKE button again. VGA signal will be switched to LED screen with set transition effect. © Xiamen RGBlink Science & Technology Co., Ltd. 22 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 24: Pip】Button

    Select on or off to switch the main picture and secondary picture (the small one). ALPHA: Image transparency setting, the adjustment range is 0 to 16. SECLECT： Select IMAGE A or IMAGE B. © Xiamen RGBlink Science & Technology Co., Ltd. 23 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 25: Scale】Button

    RESET: If operation is not proper, turn knob to <RESET> and start over. H SIZE 1920 V SIZE 1080 H POS V POS RESET © Xiamen RGBlink Science & Technology Co., Ltd. 24 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 26: Freeze】Button

    GREEN:range from 0 to 100 RESET BLUE:range from 0 to 100 RESET:If image quality distorts by improper operation, it can be recover by reset © Xiamen RGBlink Science & Technology Co., Ltd. 25 / 32 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 27: Save】Button

    Saving to flashing positions will overwrite previously saved settings. For example, button 1 is flashing, after pressing button 1, LCD shows Push【OK】to confirm,【MENU】to cancel. Save 1 used, overwrite Yes<OK>, NO <MENU> © Xiamen RGBlink Science & Technology Co., Ltd. 26 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 28: Load】Button

    LOAD FROM >SAVE1 FINISHED！ KEY ON FOR ALL SAVES FLASH IS CURRENT SET Push 【MENU】to exit LOAD, the button lights go out. © Xiamen RGBlink Science & Technology Co., Ltd. 27 / 32 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 29: Load Led Configuration File

    2.Download and install XTOOL V1.0.1.3. Download XTOOL from RGBLink www.rgblink.com/support#downloads 3.Connect GX4 and computer with the USB cable (USB A-B cable) from In The Box. 4.Open up XTOOL If you find it in Chinese, switch the language by clicking this 5.Set Connection...
  • Page 30 Click Browse to open up Local file to select the Led configuration file stored before and click Set to confirm. 7.When it is done, a window showing Set Success will pop up. © Xiamen RGBlink Science & Technology Co., Ltd. 29 / 32 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 31 Manufacturer index set on XTOOL, there is the file name. Select the file, and press OK, the Led screen will be set as the configuration file. © Xiamen RGBlink Science & Technology Co., Ltd. 30 / 32 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 32: Contact Information

    All video products are designed and tested to the highest quality standard and backed by full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
