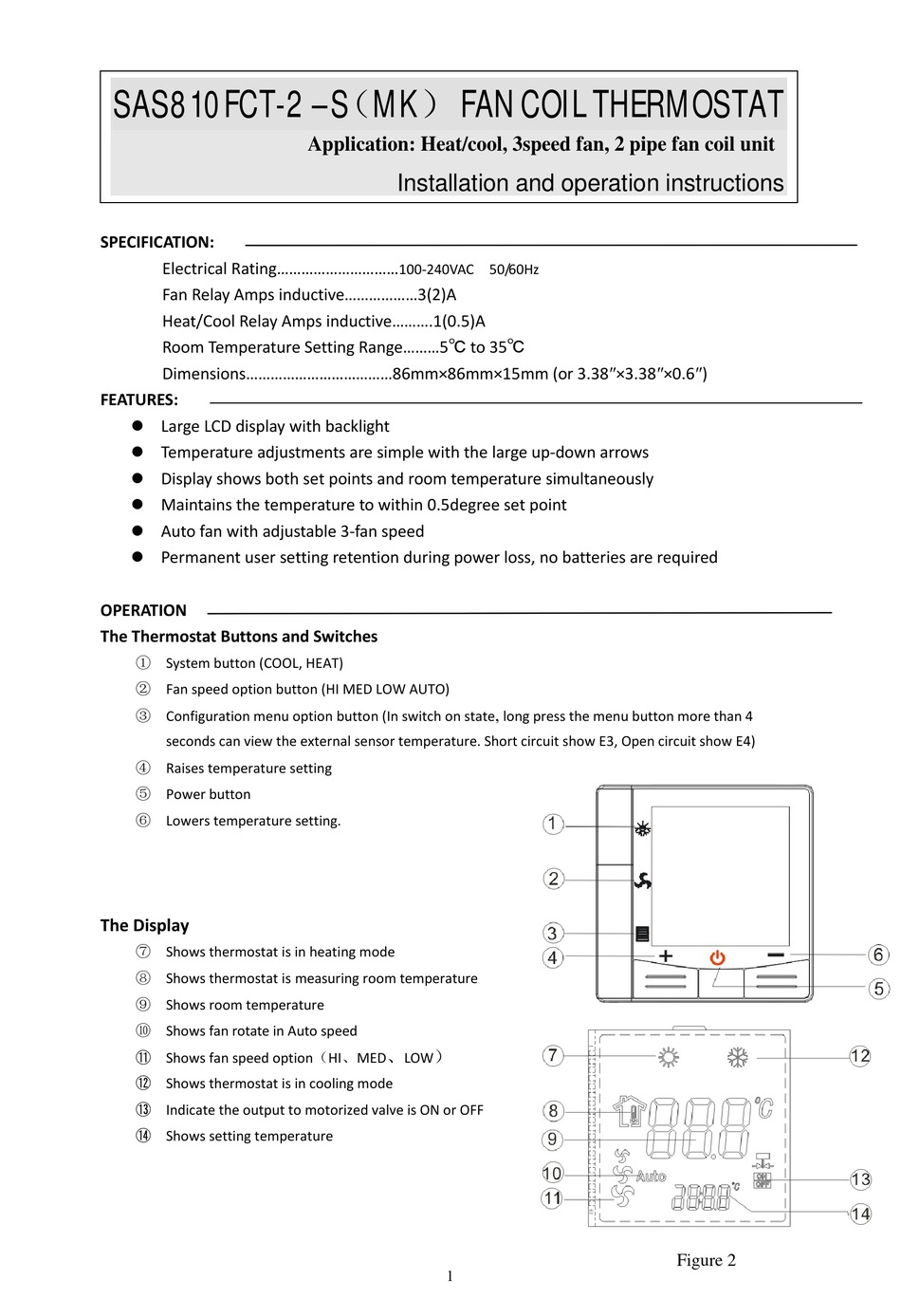

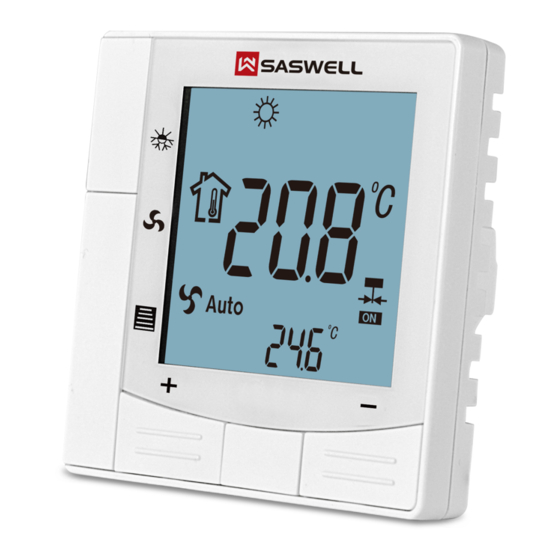

SAS810FCT-2 –S （MK） FAN COIL THERMOSTAT

SPECIFICATION:

Electrical Rating..............................
Fan Relay Amps inductive..................3(2)A
Heat/Cool Relay Amps inductive..........1(0.5)A
Room Temperature Setting Range.........5℃ to 35℃
Dimensions....................................86mm×86mm×15mm (or 3.38"×3.38"×0.6")

FEATURES:

 Large LCD display with backlight
 Temperature adjustments are simple with the large up-down arrows
 Display shows both set points and room temperature simultaneously
 Maintains the temperature to within 0.5degree set point
 Auto fan with adjustable 3-fan speed
 Permanent user setting retention during power loss, no batteries are required

OPERATION

The Thermostat Buttons and Switches
① System button (COOL, HEAT)
② Fan speed option button (HI MED LOW AUTO)
③ Configuration menu option button (In switch on state
seconds can view the external sensor temperature. Short circuit show E3, Open circuit show E4)
④ Raises temperature setting
⑤ Power button
⑥ Lowers temperature setting.
The Display
⑦ Shows thermostat is in heating mode
⑧ Shows thermostat is measuring room temperature
⑨ Shows room temperature
⑩ Shows fan rotate in Auto speed
⑪ Shows fan speed option（HI、MED
⑫ Shows thermostat is in cooling mode
⑬ Indicate the output to motorized valve is ON or OFF
⑭ Shows setting temperature
Application: Heat/cool, 3speed fan, 2 pipe fan coil unit
Installation and operation instructions
100-240VAC 50/60Hz
、 ）
LOW
1
long press the menu button more than 4
,
Figure 2
