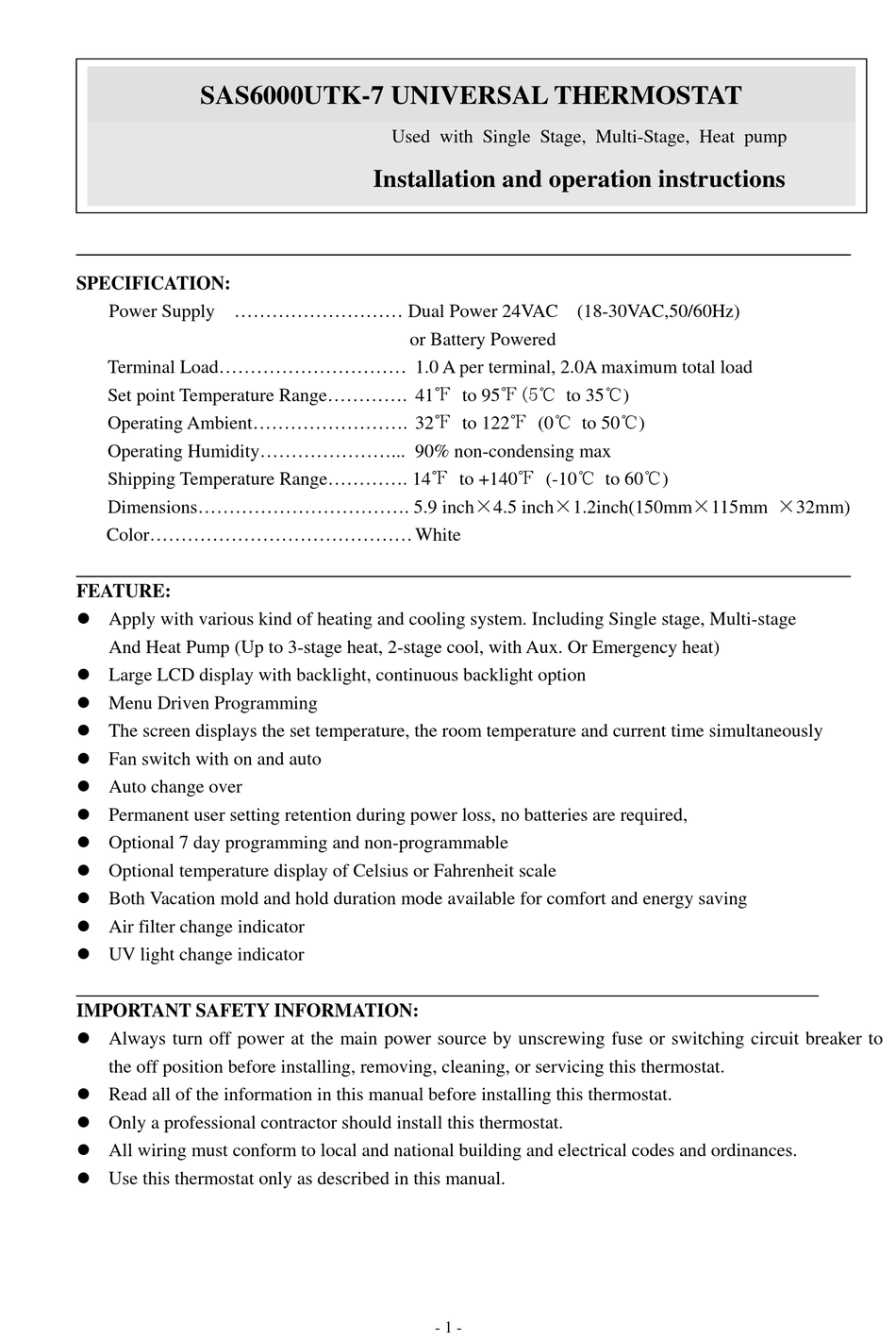

SAS6000UTK-7 UNIVERSAL THERMOSTAT
SPECIFICATION:
Power Supply ........................... Dual Power 24VAC (18-30VAC,50/60Hz)
Terminal Load.............................. 1.0 A per terminal, 2.0A maximum total load
Set point Temperature Range............. 41℉ to 95℉(5℃ to 35℃)
Operating Ambient......................... 32℉ to 122℉ (0℃ to 50℃)
Operating Humidity........................ 90% non-condensing max
Shipping Temperature Range............. 14℉ to +140℉ (-10℃ to 60℃)
Dimensions.................................. 5.9 inch×4.5 inch×1.2inch(150mm×115mm ×32mm)
Color.......................................... White
FEATURE:
 Apply with various kind of heating and cooling system. Including Single stage, Multi-stage
And Heat Pump (Up to 3-stage heat, 2-stage cool, with Aux. Or Emergency heat)
 Large LCD display with backlight, continuous backlight option
 Menu Driven Programming
 The screen displays the set temperature, the room temperature and current time simultaneously
 Fan switch with on and auto
 Auto change over
 Permanent user setting retention during power loss, no batteries are required,
 Optional 7 day programming and non-programmable
 Optional temperature display of Celsius or Fahrenheit scale
 Both Vacation mold and hold duration mode available for comfort and energy saving
 Air filter change indicator
 UV light change indicator
IMPORTANT SAFETY INFORMATION:
 Always turn off power at the main power source by unscrewing fuse or switching circuit breaker to
the off position before installing, removing, cleaning, or servicing this thermostat.
 Read all of the information in this manual before installing this thermostat.
 Only a professional contractor should install this thermostat.
 All wiring must conform to local and national building and electrical codes and ordinances.
 Use this thermostat only as described in this manual.
Used with Single Stage, Multi-Stage, Heat pump
Installation and operation instructions
or Battery Powered
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAS6000UTK-7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Saswell SAS6000UTK-7

  • Page 1 SAS6000UTK-7 UNIVERSAL THERMOSTAT Used with Single Stage, Multi-Stage, Heat pump Installation and operation instructions SPECIFICATION: Power Supply ……………………… Dual Power 24VAC (18-30VAC,50/60Hz) or Battery Powered Terminal Load………………………… 1.0 A per terminal, 2.0A maximum total load Set point Temperature Range…………. 41℉ to 95℉(5℃ to 35℃) Operating Ambient…………………….
  • Page 2: Keyboard, Display And Switch Descrioption

    KEYBOARD, DISPLAY AND SWITCH DESCRIOPTION SAS6000UTK-7 Touch Screen Thermostat Figure 1 Home Screen Description Date of Week Set Temperature Temperature Up/Down Time of the day used for modifying set point System Switch Low Battery Indication Fan Swtich Menu key for entering...
  • Page 3 (12) (14) (13) (15) (16) (11) (24) (23) (22) (17) (21) (18) (19) (20) (10) Figure 3 (1) Press day(s) to set program schedule (2) “Hold Until” indicates the time when a temporary hold period will end (3) Press to select system type (4) Press to select fan operation (5) Press “MENU”...
  • Page 4: Installation

    (14) Press UP and DOWN for setting current time clock or setting time in programming or changing selections in configuration menu or setting the time when a temporary hold period will end (15) “Emergency” flashes when system mode is set “EMER” “...
  • Page 5: Front Panel

    2 AA Batteries Front Panel Base Figure 4 WIRING DIAGRAM HEAT PUMP CONVENTIONAL C/S1 C/S1 Figure 5 Wiring guide 1H/1C System (1 transformer) 1H/1C System (2 transformer) Power 【1】 Power (cooling transformer) 【1,2】 Power (heating transformer) 【1,2】 (RH+RC joined by jumper) Heat relay Heat Relay Compressor contactor...
  • Page 6 2H/2C System (1 transformer) 2H/2C System (2 transformer) Power 【1】 Power 【1,2】 (RH+RC joined by jumper) (RH+RC joined by jumper) 【1,2】 Heat relay 1 Heat relay 1 Cool relay 1 Cool relay 1 Heat relay 2 Heat relay 2 Cool relay 2 Cool relay 2 Fan relay 24VAC common/remote sensor 【3】...
  • Page 7: Power Supply

    【1】 Power supply 【2】 Remove jumper for 2-transformer system 【3】 Optional 24VAC common connection 【4】 Common connection must come from cooling transformer 【5】 If L terminal is used, 24VAC common (terminal C) must be connected 【6】 Install field jumper between Aux and E terminals if there is no emergency heat relay CONFIGURATION MENU The configuration menu allows you to set certain thermostat operating characteristics to your system or personal requirements.
  • Page 8 2) Press CONFIG for entering configuration menu, change setting according to following figure. For resume factory default setting, press RESET and then confirm by pressing DONE. Press CANCEL Press DOWN to exit to main to confirm and home screen exit Press CONFIG for entering configuration menu...
  • Page 9 STEP NEXT CCYCLE First cooling cycle rate 1,2,3,3,5 STEP NEXT EMER Emergency heating rate 1,2,3,3,5 STEP NEXT DELAy Select compressor lockout STEP delay NEXT LIGHT Select backlight display 1,2, 3 STEP NEXT CALIbR Select Temperature +4 TO -4 STEP Calibration NEXT F OR C Select ºF or ºC Readout...
  • Page 10 2. System type option 1H: 1 heat/1 cool conventional 2H: 2 heat/2 cool conventional HP1: 1 compressor heat pump HP2: 2 compressors or 2 speed compressor heat pump 3. Fan control option HA: Gas heating. Furnace controls blower HE: Electric heating. Thermostat controls blower 4.
  • Page 11 7. Select display backlight The display backlight improves display contrast in low lighting conditions. Select 1 for NO backlight display. Select 2 for the backlight to come on for approximately 30 seconds when any button of the thermostat is touched. Select 3 for the backlight to remain on continuously. NOTE: When operated from batteries (No “C”...
  • Page 12 has expired. You can check the duration run time and clear it by following step 1. Press MENU button for displaying main button 2. Press OTHER button for displaying other button 3. Press INFO to inquiry for the UV duration time. If displays shows the counter back time of filter change replacement.
  • Page 13: Operating Your Thermostat

    23. Select audible beeper On/off Select yES, thermostat will beep when any button touched Select nO, thermostat will turn off the voice 24 Select keypad lockout on or off UnL-unlock. All keys are available. Screen is unlocked PAL-partially locked. All key functions are locked except SYSTEM key; temperature UP and DOWN keys and the CANCEL key.
  • Page 14 Manual Operation for Non-programmable Thermostats Press the SYSTEM button to select Heat or Cool and Use the △or▽ buttons to adjust the temperature to your desired setting. After selecting your desired settings you can also press the ASYSTEM button to select AUTO to allow the thermostat to automatically change between Heat and Cool if AUTO changeover option is set to 1.
  • Page 15 If you return earlier than expected, press RUN SCHED to resume the program schedule. Temporary Hold Override Press to set time Adjust temperature Press △or▽ to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period. The new temperature will be maintained until the time you set.
  • Page 16 Screen cleaning Press CLEAN DISPLAY to lock the screen for cleaning. The screen will remain locked for 30 seconds so you can clean the screen without changing any setting. Press CLEAN DISPLAY Screen lock timer After 30 seconds, press DONE to resume normal (count back 30 seconds) operation, or press CLEAN DISPLAY again if you require more time for cleaning.
  • Page 17 Adjust program schedules Press MENU button to display main menu button. Press SET SCHED to enter set program mode. Press SET SCHED to set program Select days to set program schedule. It can be a single day of the week or a group of days of the week Select HEAT or COOL for program setting by pressing system button.
  • Page 18 Factory Default Pre-program The thermostat is programmed with the energy saving settings shown in the table below for all days of the week. If this program suits your needs, simply set the thermostat clock and press the RUN button. The table below shows the factory set heating and cooling schedule for all days of the week Wake Up Leave For Work...
  • Page 19: Customer Assistance

    CUSTOMER ASSISTANCE After reading this guide, if you have any question about the operation of your thermostat, please contact your installer or service provider. - 19 -...
