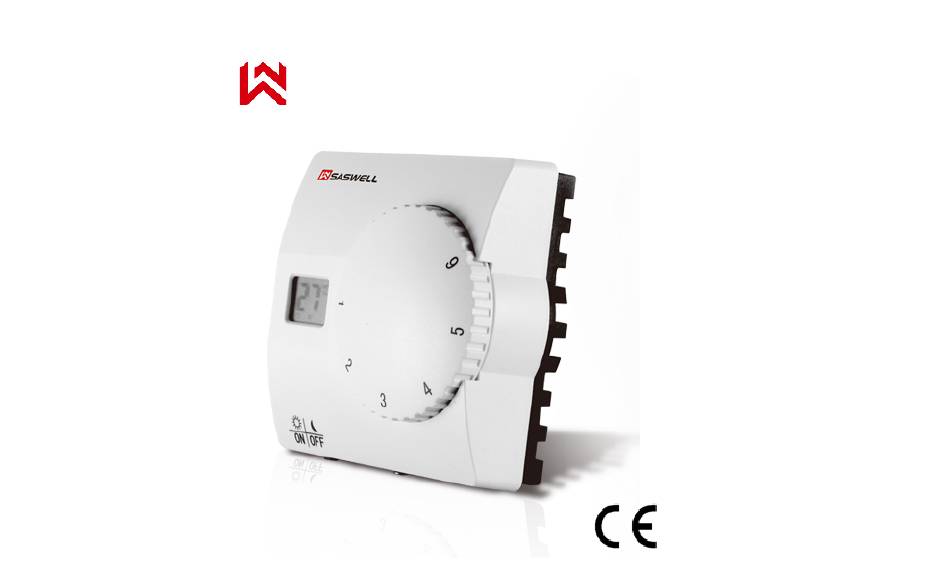

- Page 1 Žični termostat / Wired thermostat SASWELL SAS816WHL-0 Uporabniški priročnik User manual...
- Page 2 SI | Uporabniški priročnik Termostat Saswell SAS816WHL-0 je preprost žični termostat z analogno nastavitvijo in digitalnim prikazom temperature. Primeren je za ogrevalne in hladilne sisteme. Navodila za uporabo in vzdrževanje so del splošnih prodajnih pogojev. Pridržujemo si pravico do sprememb detajlov, tehnologije in izvedbe.
- Page 3 Za izdelek je bila izdana izjava o skladnosti. Ta in ostala dokumentacija je dostopna na spletni strani www.sen-controls.eu. Proizvajalec izdelka je SASWELL CONTROLS (HONGKONG) LTD. Uvoznik in distributer za Saswell je Sen Controls d.o.o., Belokranjska cesta 29, 8340 Črnomelj, Slovenija...
- Page 4 Lastnosti Specifikacije enote • Preprosta uporaba • Napajanje 100-220V AC 50/60Hz LCD ekran za prikaz temperature • Imax napetostni Opcijski prikaz temperature v Celzijih ali Fahrenheitu • Možnost vklopa dnevnega, nočnega ali ročnega kontakt načina nastavitve temperature Imax 3A breznapetostni kontakt •...
- Page 5 Opis ter montaža termostata Namestitev in potek montaže Odstranite vijak s podnožja termostata. Previdno privzdignite sprednji pokrov iz ohišja. Na silo ne poskušajte dvigniti pokrova, saj lahko povzroči poškodbe na ohišju ali termostatu samem. Bodite previdni, da se ne izgubi notranja matica ohišja, saj ni fiksna, če vijak popolnoma od vijačite.
- Page 6 Konfiguracija DIP stikal Termostat ima pod ohišjem nameščena DIP stikala. Glede na njihovo nastavitev tudi prilagodite način delovanja termostata. Do teh je najlažje dostopati pred oz. med samo namestitvijo termostata na steno. Primer nastavitve DIP stikal: Primer 1 Primer 2 V primeru 1 je nastavljen prikaz temperature v °F, način ON ali OFF, način gretja in brez zamika zagona kompresorja / ogrevanja.
- Page 7 Opis DIP stikal Stikalo °C / °F Tukaj nastavite željen prikaz temperature v Celzijih ali v Fahrenheitih. Stikalo ON OFF / Če je stikalo premaknjeno na ON OFF pomeni, da se tipka na ohišju ON / OFF obnaša kot vklop in izklop termostata.
-
Page 8: Uporaba Termostata
Uporaba termostata Prikaz na ekranu: Ekran (glej sliko na desni za razlago) Na ekranu je vedno prikazana trenutna temperatura prostora (1). Ko je prikazana temperatura prostora, je takrat tudi prikazan simbol 2 . Ko obračate gumb za nastavitev temperature, se pa na ekranu izpiše in utripa trenutno izbrana temperatura (simbol 1). Na ekranu je tudi možen prikaz dnevnega / nočnega načina, opozorilo za slabo baterijo (simbol 3), simbol za ogrevanje (simbol 4), simbol za hlajenje (simbol 5) ter enota temperature (simbol 6). - Page 9 ON/OFF nastavitve Če imate na termostatu v DIP stikalih nastavljeno na ON/OFF, pomeni da se stikalo na ohišju obnaša kot tipka za popoln vklop oz. izklop termostata. Možne napake na termostatu Če se zgodi, da pride do okvare s termostatom, vam le ta tudi to izpiše na LCD ekranu. Če se izpiše E1 –...

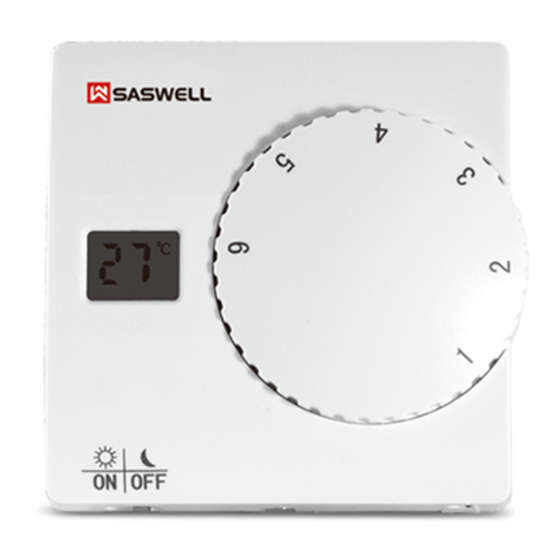

- Page 10 EN | Instruction manual Thermostat Saswell SAS816WHL-0 is a simple wired thermostat with analogue temperature setting and a digital display. It’s used in heating and cooling systems. The instructions for use and maintenance are part of the general terms and conditions of sale. We reserve the right to change the details, technology and performance.
- Page 11 Declaration of conformity has been issued for the product. This and other documentation is available on the website www.sen-controls.eu. The manufacturer of the product is SASWELL CONTROLS (HONGKONG) LTD. Importer and distributor for Saswell is Sen Controls d.o.o., Belokranjska cesta 29, 8340 Črnomelj, Slovenia...
- Page 12 Features Specifications of the thermostat • Simple to use • Temperature displayed on LCD screen Power 100-220V AC 50/60Hz • Optional display of temperature in Celsius or Imax 5A volt contact Fahrenheit Imax voltfree • Optional use of night, day mode or manual contact temperature setting •...
- Page 13 Description and thermostat installation Installation of the thermostat Remove the screw, located below the 2x AA bateriji thermostat. Carefully lift up the front part of the housing. Don’t try it with too much force as you may damage the housing or the thermostat itself. Also be careful not to lose the small nut from the screw, if you completely unscrew it.
-
Page 14: Dip Switch Configuration
DIP switch configuration DIP switches are located under the housing on the electrical circuit. Regarding of their setup you also configure the way the thermostat works. The easiest access is during the wall installation, described above. Example of DIP switch setting Example 1 Example 2 At example 1, the DIP switches are set for Fanhrenheit temperature display, ON/OFF mode, Heating mode and without... -
Page 15: Dip Switch Description
DIP switch description Switch °C / °F Here you can select the temperature settin in Celsius or Fahrenheit. Switch ON OFF / If the switch is set to ON OFF, that means that the ON / OFF switch on the housing behaves like a normal ON or OFF switch, to control the thermostat. - Page 16 Using the thermostat Display (See the picture on the right) The current room temperature (1) is always displayed on the screen. With that, a small house symbol is also displayed (2). When you turn the button to change the temperature, the small symbol (2) disappears and now you’re setting the temperature which is also blinking (1).
- Page 17 NSB settings These settings allow the use of a manual night/day regime. First, you have to enable this option via DIP switches. When you set the desired temperature, the thermostat will lower it when the switch is set on the moon symbol by 4°C.
