SAS816WHB-0-RF is a non-programmable thermostat, It is can replaced most common
residential thermostat and designed to be used with electric, gas ,water radiant or oil heating
control system or cooling system..
Power source ........................
Relay contact:...........................
Room temperature setting range.........5℃ to 30℃
Accuracy.................................. ±1℃
Dimensions.............................. 85mm X 84mm X32mm
Color...................................... White
l LCD display shows room temperature
l Optional economic operation or comfort operation
l Optional temperature display of Celsius or Fahrenheit scale
PDF created with pdfFactory Pro trial version

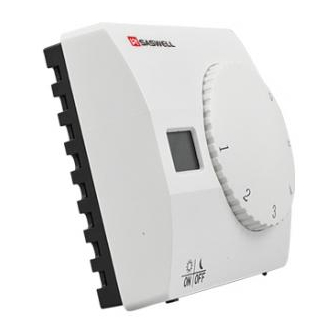

SAS816WHB-0-RF Wireless Thermostat
SPECIFICATION:
3VDC
230VAC 10A
MOUNTING AND WIRING DIAGRAM
Figure 2
FEATURE:
Figure 1
Figure 3
www.pdffactory.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Saswell SAS816WHB-0-RF
Summary of Contents for Saswell SAS816WHB-0-RF
- Page 1 SAS816WHB-0-RF Wireless Thermostat SAS816WHB-0-RF is a non-programmable thermostat, It is can replaced most common residential thermostat and designed to be used with electric, gas ,water radiant or oil heating control system or cooling system.. SPECIFICATION: Power source …………………… 3VDC Relay contact:………………………...

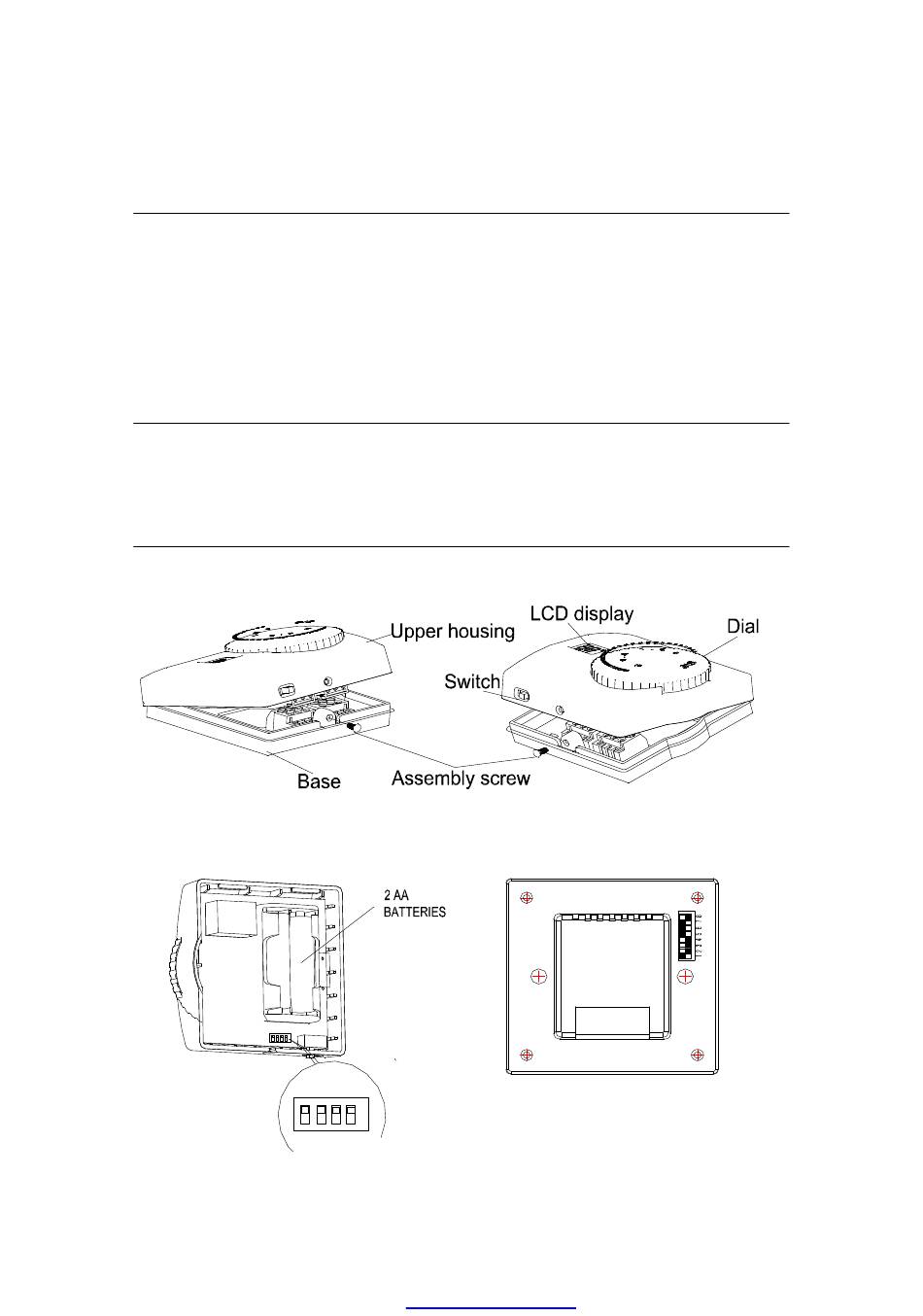

- Page 2 MOUNTING THE RECEIVER In Wall Box Receiver Base Screw Front Cover Figure 4 Mounting the Receiver onto the optional wall box (See Figure 4) Remove assembly screws from the base of thermostat. Gently pull the upper housing straight off the base.
- Page 3 CHECK THERMOSTAT OPERATION The unit will be controlled via air sensor in the Control Centre and the Control Centre will determine to activate/deactivate heating system by comparing set temperature with room temperature. Press ▲ to adjust Control Centre setting above room temperature 1℃ in fast heating mode or 3℃ in slow heating mode, See configuration menu item 5.
- Page 4 USERS INSTRUCTIONS Display The LCD displays actual room temperature until the setting dial is moved. Setting the temperature Turn setting dial to required temperature. The selected temperature will flash in the LCD to signify it is showing the set temperature After a short period the display stops flashing and shows actual room temperature.
- Page 5 PDF created with pdfFactory Pro trial version www.pdffactory.com...
