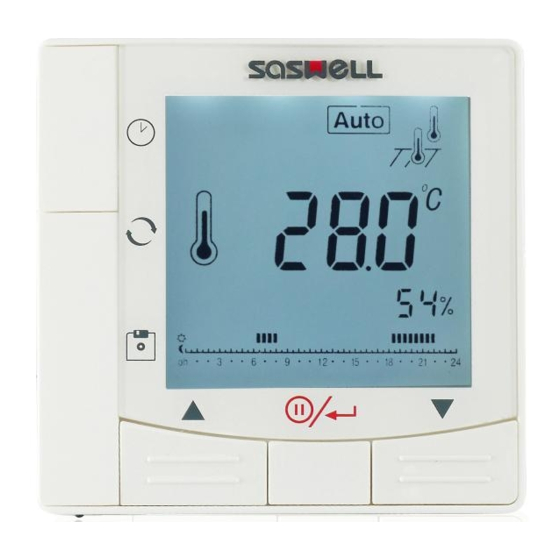

SAS810FHL-7 Thermostat for floor heating
SAS810FHL-7 is a programmable thermostat designed for floor warming application or helping to limit
floor temperature. This thermostat can be used for hot water radiant heating systems.
Power source ........................... 100-240VAC 50/60Hz
Maximum load electric current:.........250VAC 16A
Room temperature setting range......5
Floor temperature control range...... 5
Accuracy.................................... ±0.5
Dimensions..................................86mm X 86mm X18mm
Color..........................................White
Large LCD display with backlight
Permanent user setting retention during power loss,
Optional temperature display of Celsius or Fahrenheit scale
Optional economic operation or comfort operation
Optional type of control for different heating application including room thermostat; floor thermostat or room
thermostat with floor limitation
Optional programming Period: 7 individual day programming with 48 separate time to select economic or
Comfort Mode.(Every half hour as a period of time)
Display temperature recalibrates
Always turn off power at the main power source by unscrewing fuse or switching circuit breaker to the off
position before installing, removing, cleaning, or servicing this thermostat.
Read all of the information in this manual before installing this thermostat.
Only a professional contractor should install this thermostat.
All wiring must conform to local and national building and electrical codes and ordinances.
If system is not operating properly, check wiring and replace fuse if necessary.
Use this thermostat only as described in this manual.
SPECIFICATION:
to 90
to 99
FEATURE:
/
IMPORTANT SAFETY INFORMATION:
cancel the programming function.
1
Advertisement
Table of Contents
Related Manuals for Saswell SAS810FHL-7
Summary of Contents for Saswell SAS810FHL-7
- Page 1 SAS810FHL-7 Thermostat for floor heating SAS810FHL-7 is a programmable thermostat designed for floor warming application or helping to limit floor temperature. This thermostat can be used for hot water radiant heating systems. SPECIFICATION: Power source ……………………… 100-240VAC 50/60Hz Maximum load electric current:………250VAC 16A Room temperature setting range……5...
- Page 2 KEYBOARD, DISPLAY AND SWITCH DESCRIOPTION 14 13 Figure 1 Figure 2 Clock button : Short press to enter into time setting mode;Hold the time setting button for 2 seconds to enter into floor temperature inquiry interface in dual sensor control mode. System button: AUTO mode / Comfort mode /Energy saving mode change over Alternative inquiry button for Program setting /Configuration menu option button.
- Page 3 INSTALL THE THERMOSTAT ATTACH THERMOSTAT BASE TO WALL B a s e P a n e l p u ll t h e c o n t r o l p a n e l s t r a i g h t o f f t h e b a s e screw for mounting thermostat to wall...
- Page 4 OPERATION 1. Configuration Menu The configuration menu allows you to set certain thermostat operating characteristics to your system or personal requirements. When the display shows OFF stand-by state, Hold button for 3 seconds to enter the configuration menu. The display will show the first item in the configuration menu. Press button to shift to the next menu item.
- Page 5 3) Select minimum set point For room sensor control mode,This feature provides a mixnimum set point temperature for room setting. The default setting is 5 (41 ) , It can be changed between 5 (41 ) to 20 (68 ) . 4) Select maximum floor temperature limitation Press button to select you desire maximum floor temperature limitation.
- Page 6 10) Select output maximum load. According to the actually output heating load, to select the corresponding load current. The factory default setting is . The options are load current are 16 (A ). load current is 8 (A ). load current is 3 (A ). 11) Select Programme option.
- Page 7 shows indicate you are now in energy saving mode. Every time you change the setting in comfort mode, the new setpoint will be memorized as the setpoint of the comfort mode. The same to the energy saving mode and Auto mode. Comfort mode In comfort mode, using to select the appropriate temperature you want.
- Page 8 9) Press both buttons simultaneously for about 2s,can be programmde to restore factory value Error Code LO: Below lowest limitation temperature is detectived by floor sensor in MODE . Thermostat turn on heating system until the floor temperature is over lowest limitation. HI :Over high limitation temperature is detectived by floor sensor in MODE .
