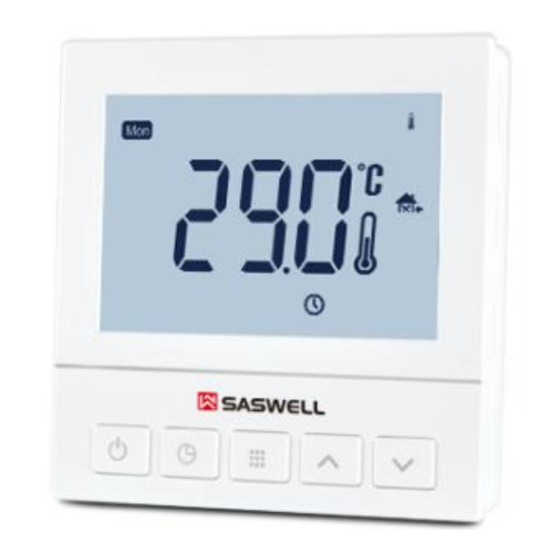

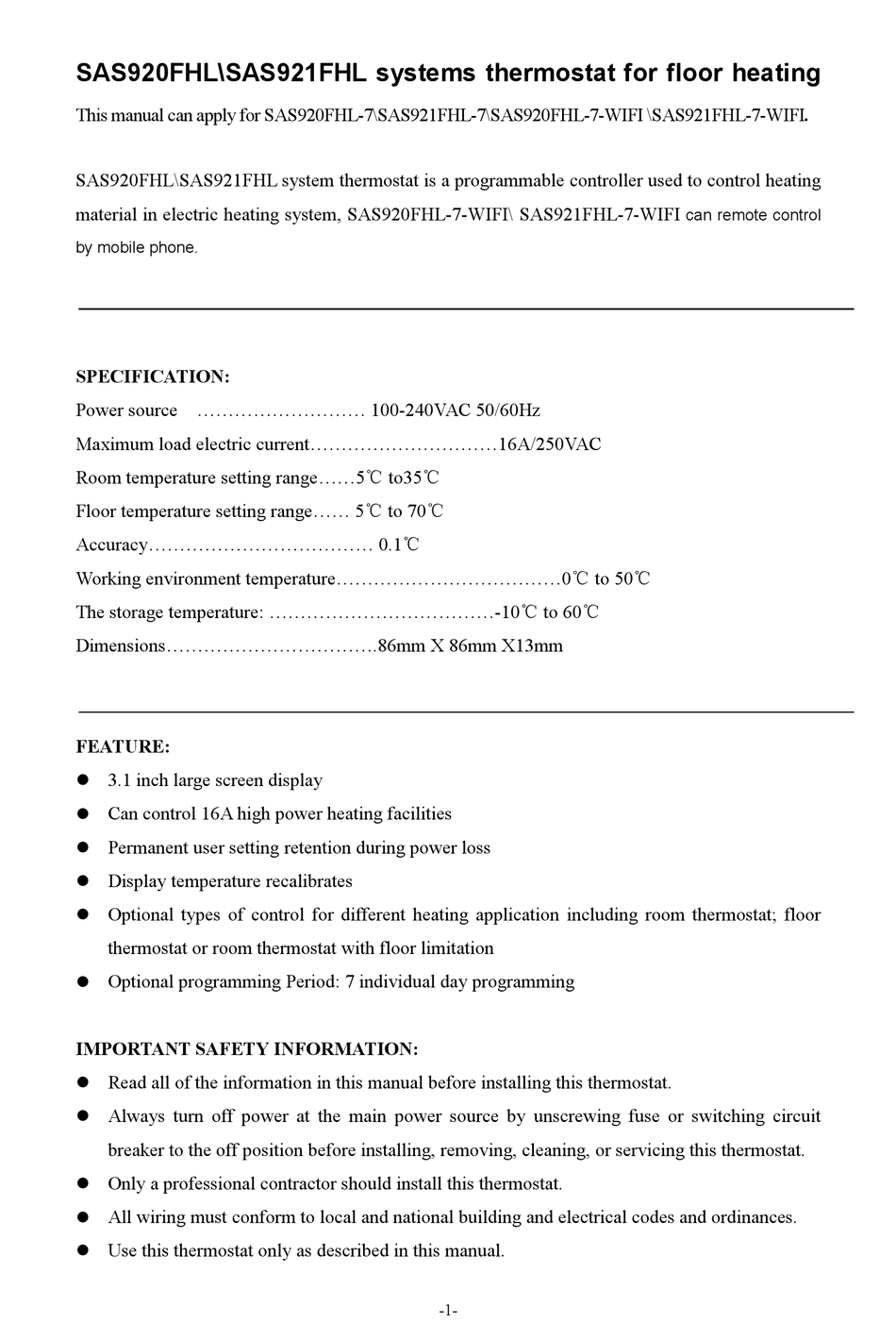

SAS920FHL\SAS921FHL systems thermostat for floor heating
This manual can apply for SAS920FHL-7\SAS921FHL-7\SAS920FHL-7-WIFI \SAS921FHL-7-WIFI.
SAS920FHL\SAS921FHL system thermostat is a programmable controller used to control heating
material in electric heating system, SAS920FHL-7-WIFI\ SAS921FHL-7-WIFI
by mobile phone.

SPECIFICATION:

Power source ........................... 100-240VAC 50/60Hz
Maximum load electric current..............................16A/250VAC
Room temperature setting range......5℃ to35℃
Floor temperature setting range...... 5℃ to 70℃
Accuracy.................................... 0.1℃
Working environment temperature....................................0℃ to 50℃
The storage temperature: ....................................-10℃ to 60℃
Dimensions..................................86mm X 86mm X13mm

FEATURE:

 3.1 inch large screen display
 Can control 16A high power heating facilities
 Permanent user setting retention during power loss
 Display temperature recalibrates
 Optional types of control for different heating application including room thermostat; floor
thermostat or room thermostat with floor limitation
 Optional programming Period: 7 individual day programming

IMPORTANT SAFETY INFORMATION:

 Read all of the information in this manual before installing this thermostat.
 Always turn off power at the main power source by unscrewing fuse or switching circuit
breaker to the off position before installing, removing, cleaning, or servicing this thermostat.
 Only a professional contractor should install this thermostat.
 All wiring must conform to local and national building and electrical codes and ordinances.
 Use this thermostat only as described in this manual.
-1-
can remote control
