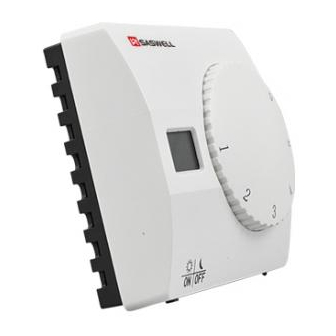

SAS816WHB-0-RF（ES）WIRELESS THERMOSTAT
SAS816WHB-0-RF(ES) is a non-programmable wireless thermostat, It is can replaced most
common residential thermostat and designed to be used with electric, gas ,water radiant or oil
heating control system or cooling system.
Unlike ordinary single unit design thermostat, this unit is a new type of thermostat separating
the thermostat function into two units. Receiver sccket and Control Centre SAS816WHB-0-Tr.
The Control Centre serves as user interface and temperature sensing/control. User can put the
control Centre nearby and can read/control the temperature of really the living area while put the
Receiver besides the heating or cooling system. The unit is linked by RF.

SPECIFICATION

Power source.................................Control Centre 2 AA batteries
Frequency band........................................433 MHZ
Room temperature setting range.................... 5 ~30
Ambient temperature-operation......................0℃(32 )
Ambient temperature-transport.......................-10℃(14 )
Accuracy..................................................±1
Dimensions..............................................Control Centre 86mm×86mm×32mm
FEATURE
 LCD display shows room temperature
 Optional economic operation or comfort operation
 Optional temperature display of Celsius or Fahrenheit scale

INSTALL THE CONTROL CENTRE

1. Remove assembly screws from the base of thermostat. Gently pull the upper housing straight off the
base. Forcing or prying on the thermostat will cause damage to the unit. See figure 1.
2. Install two fresh "AA" alkaline batteries in battery compartment. Be sure to match positive (+) ends
of batteries with positive (+) battery terminals in the battery compartment. See figure 2.
3. Push power base into wall.
4. Using mounting screws mount the power base to the wall. Place a level against bottom of base,
adjust until level, and then tighten screws. (Leveling is for appearance only and will not affect
thermostat operation.)
5. Replace the upper housing on the base and fix the upper housing by removed assembly screw
Installation and operation instructions
Receiver 230VAC±10% 50/60HZ
℃ ℃ ℉
(41 ~86 )
℉ ~+50℃(122 )
℉ ~+60 ℃(140 )
℃ ℉
or ±1
Receiver 126mm×68mm×47mm
℉
℉
℉
Figure 1
1
