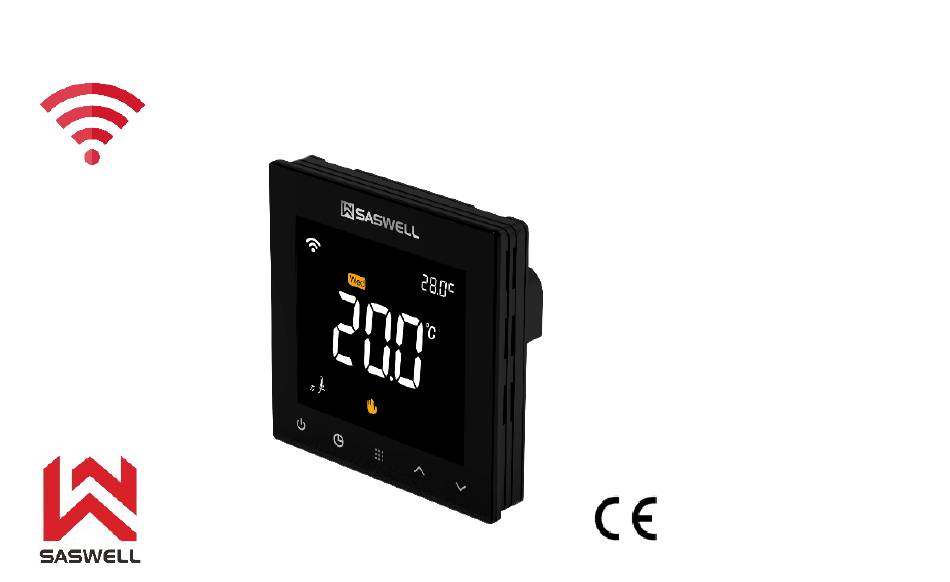

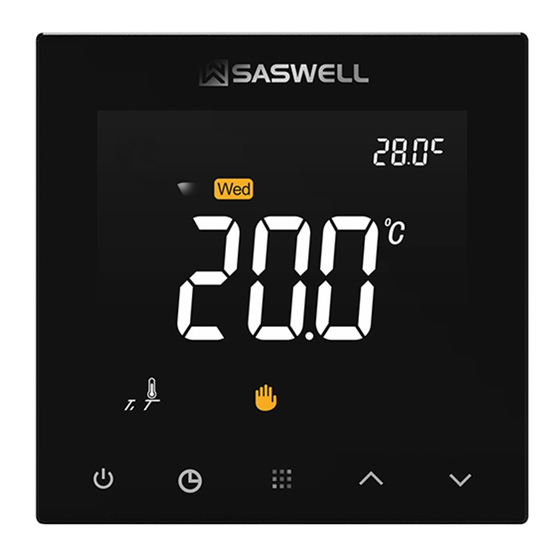

  • Page 1 Žični internetni WIFI termostat | Wired internet WIFI thermostat Android / iOS APP SASWELL SAS922WHL-7W-S-WIFI Uporabniški priročnik User manual...
  • Page 2 SI | Uporabniški priročnik Termostat Saswell SAS922WHL-7W-S-WIFI je žični programski termostat za upravljanje ogrevalnih sistemov, ki se lahko namesti v stensko dozo. Posebnost termostata je upravljanje preko aplikacije iz vašega pametnega telefona, kjerkoli po svetu. Vse nastavitve temperatur ter sama regulacija se upravlja preko aplikacije oz. v določenih primerih tudi preko termostata samega.
  • Page 3 Za izdelek je bila izdana izjava o skladnosti. Ta in ostala dokumentacija je dostopna na spletni strani www.sen- controls.eu. Proizvajalec izdelka je SASWELL CONTROLS (HONGKONG) LTD. Uvoznik in distributer za Slovenijo je Sen Controls d.o.o., Belokranjska cesta 29, 8340 Črnomelj, Slovenija...
  • Page 4 šestimi različnimi časovnimi in Opcijski priklop senzorja za talno ogrevanje temperaturnimi nastavitvami NTC100K ali NTC10K (ni priložen) • Možnost kalibracije temperature • Zaščita proti zmrzovanju • Stenska montaža (doza) • Upravljanje termostata preko aplikacije Saswell iz vašega mobilnega telefona iOS ali Android...
  • Page 5 Opis termostata – tipke in prikaz na ekranu Opis tipk Vklop / tipka za potrditev. S kratkim pritiskom vklopite ali izklopite termostat. Potrditvena tipka. Nastavitev ure. Tipka za nastavitve / meni. Povišanje oz. sprememba vrednosti Znižanje oz. sprememba vrednosti...
  • Page 6 Opis prikaza na ekranu Ura / temperatura / nastavitev Dnevi v tednu Programi ogrevanja Glavni prikaz (temperatura, nastavitve, …) Prikaz senzorja tal Nastavitve, urejanje Nastavitev časa / Urnik programov ogrevanja je aktiven Ročni način delovanja (začasna, stalna temperatura) Proti zamrzovalna funkcija je vključena Ogrevanje je vključeno Termostat je v WIFI načinu (gateway) Termostat je v AP načinu (access point)
  • Page 7 Namestitev Stenska namestitev termostata Najprej odstranite zadnji pokrov termostata. To storite tako, da z ravnim izvijačem nežno in previdno malce na vzdignete na spodnjem delu ohišja. Zopet, previdno vzdignite zadnji del in opazili boste povezovalni kabel, pritrjen na oba dela termostata. Iz sprednjega dela termostata, kjer je ekran, previdno in počasi odstranite povezovalni kabel.
  • Page 8 Nato sledi namestitev zadnjega dela termostata v dozo, kot je prikazano na sliki desno. Priložena sta tudi dva vijaka. Bodite pozorni na pravilno montažo, saj mora biti spodnji del (»jeziček«) obrnjen navzdol! Namestitev v dozo / Jeziček / Povezovalni kabel / Pri vijačenje vijakov Ko pritrdite zadnji del termostata v dozo, povežite zadnji del s sprednjim in sicer tako, da previdno priklopite kabel v isto mesto sprednjega dela vezja oz.
  • Page 9 Prikaz napak Spodaj je opis treh napak, ki se lahko pojavijo na ekranu ob uporabi naprave: Napaka / prikaz Opis Tipalo (senzor) za talno ogrevanje ni nameščen. Termostat preneha z ogrevanjem. Err.2 - Preverite, če ste tipalo namestili pravilno in da je tipalo pravih specifikacij. Prav tako, preverite napredne nastavitve termostata, če imate nastavljeno pravilno specifikacijo senzorja (100K, 10K).
  • Page 10 Začetek uporabe – Prvi koraki, osnove in opisi nastavitev, funkcij termostata Termostat je zelo preprost za uporabo, a omogoča ogromno funkcij. Za preprost začetek, bodo razložene v nadaljevanju in vam priporočamo, da jih preberete za lažjo uporabo termostata. Privzeto ima termostat izklopljeno funkcijo urnika programov ogrevanja. To pomeni, da ima termostat možnost nastavitve zgolj stalne temperature.
  • Page 11 Začasna sprememba temperature Začasna sprememba temperature pomeni, da želite spremeniti temperaturo prostora zgolj do naslednje spremembe urnika ogrevanja, če ga uporabljate. V nasprotnem primeru se prižge stalna sprememba temperature. Recimo, da je sedaj ura 13:00 in temperatura prostora ter nastavljena temperatura je 20.0°C. Začasno spremenite temperaturo na 24.0°C in termostat vam bo ohranjal to vrednost ogrevanja do naslednjega preklopa, ki ga imate, recimo, nastavljenega ob 14:30 uri z vrednostjo 22°C.
  • Page 12 Stalna sprememba temperature Funkcija stalne sprememba temperature pomeni da naprava ignorira vse urnike programov ogrevanja do ročnega izklopa te funkcije in upošteva zgolj vašo nastavljeno temperaturo. Funkcija je avtomatsko aktivirana, ko je onemogočen program ogrevanja v nastavitvah. Ko je funkcija vklopljena, je na ekranu spodaj prikazan zgolj simbol roke.
  • Page 13 Nastavitev urnika programov ogrevanja Pogoj za nastavljanje urnika programov ogrevanja je, da je opcija urnika programov ogrevanja vklopljena (privzeto je izključena!). Pred nadaljevanjem, preverite napredne nastavitve termostata. Glede na nastavljene napredne nastavitve termostata, si nastavljate tudi program urnika. V naprednih nastavitvah si lahko vključite urnik za 7 dni (vsak dan posebej) ali povsem izključite opcijo nastavitev programov.
  • Page 14 Tabela s privzetimi primeri urnika programov ogrevanja Spodaj so navedene tovarniško privzete tabele urnika programov ogrevanja. Navedeni so primeri s privzetimi vrednostmi. Tabela 1 – 7 dni, 6 preklopov (nastavite za vsak dan posebej): 1-Jutro 3-Malica 4-Popoldan 5-Prihod 2-Odhod 6-Večer Ogrevanje ℃...
  • Page 15 Napredna nastavitev termostata Termostat vsebuje tudi napredne nastavitve, s katerimi napravo še bolj prilagodite vašim potrebam in željam. Dostop do naprednih nastavitev je možen na sledeči način: Termostat izklopite s tipko za vklop/izklop (opis tipk 1), da se na ekranu izpiše OFF. Nato držite tipko za meni (opis tipk 3) za 5 sekund.
  • Page 16 Nadaljevanje tabele: Korak Prikaz Možnost izbire Opis (Prikazano vrednosti (v oklepaju spodaj na ekranu je tovarniško privzeta ekranu poleg vrednost) koleščka) Od 5 do 20 (5) Najnižja možnost nastavitve temperature ogrevanja v stopinjah °C. S to opcijo lahko omejite temperaturo ogrevanja, ki se lahko nastavi s pomočjo termostata.
  • Page 17 Nadaljevanje tabele: Korak Prikaz Možnost izbire Opis (Prikazano vrednosti (v oklepaju je spodaj na ekranu tovarniško privzeta ekranu poleg vrednost) koleščka) 0 / 7 (0) Urnik programov ogrevanja. Tukaj vklopite, izklopite oz. nastavite na kakšen način deluje urnik programov ogrevanja. 0 –...
  • Page 18 Termostat ima dva načina povezave. AP – pomeni da termostat oddaja svojo dostopno točko in se lahko na njega povežemo z ali brez računa Saswell. Ko je ta način vključen, se na prikazu ekrana prikaže simbol 12 (glej opis prikaza ekrana). V tem načinu ni možno nastavljanje termostata preko aplikacije, če ste izven dosega omrežja termostata.
  • Page 19 Android: Da bi vključili ta način, odprite aplikacijo. Na ekranu se vam v desnem kotu zgoraj prikaže napis »DIRECT«. Pritisnite na ta napis in program začne z iskanjem Saswell WIFI termostatov v bližini. Aplikacija išče odprte termostate in njihova WIFI brezžična omrežja, ki jih oddajajo. Ko aplikacija prikaže najdene termostate, izberete želenega in kliknite na njegov SSID (le tega lahko tudi najdete...
  • Page 20 Ko kliknete nanj, lahko nastavite želeno ali zgolj preverite temperaturo prostora preko aplikacije. Pomembno – Da bi dostopali do testnega načina lokalne uporabe, mora biti termostat načinu AP – v nasprotnem primeru termostata ne boste videli na vašem telefonu. *SSID – SSID je ime WIFI brezžičnega omrežja. iOS: Da bi vključili ta način, odprite aplikacijo.
  • Page 21 »spam« razdelek v vašem poštnem odjemalcu. Sedaj ko imate ustvarjen vaš račun Saswell, se z njim prijavite in sicer v glavnem meniju aplikacije vnesite pod EMAIL vaš poštni naslov in pod PASSWORD vaš geslo ter pritisnite LOGIN. Sedaj bi morali videli pregled (Overview) vseh...
  • Page 22 Uporaba aplikacije – Dodajanje termostata Ker bi radi dodali nov termostat k vašemu računu za upravljanje preko interneta, preverite da je termostat v AP načinu – če ni, pojdi par strani nazaj in ga prestavite iz WIFI v AP. Sedaj pa odprite aplikacijo in se prijavite s svojimi registracijskimi podatki in pritisnite na tipko v desnem zgornjem kotu ekrana ter sledite korakom za vašo napravo na naslednjih straneh…...
  • Page 23 Ker ste kliknili na + v desnem zgornjem kotu ekrana, pritisnite »FIND DEVICE«. Sedaj bi morali videti seznam vseh Saswell internetnih termostatov, ki so v bližini in so pripravljeni na parjenje z Vašim Saswell računom. Izberite želeni termostat, ki ga želite povezati v vaš račun. Če jih imate več, jih ločite glede na SSID napis na ohišju termostat.
  • Page 24 Vašega termostata »SSID:Thermostat-….« in se povežite nanj. Sedaj se vrnite v Thermostat aplikacijo. Aplikacija bi morala sama zaznati, da ste povezani na Saswell termostat ter prešla na naslednji korak, v kateremu morate potrditi geslo Vašega domačega brezžičnega omrežja.
  • Page 25 Uporaba aplikacije – Preimenovanje in odstranjevanje termostata Vsi na novo dodani termostati imajo generična imena in če bi si radi organizirali termostate v vašem domu, lahko vsakega preimenujete po vaših željah. To storite tako da, ko ste v pregledu vseh Vaših naprav (termostatov), držite par sekund na imenu termostata, katerega želite preimenovati in aplikacija Vam ponudi opcijo »Rename thermostat«...
  • Page 26 Uporaba aplikacije – Nastavitve programov, temperature, pregled stanja Ko imate dodane termostate v aplikaciji, vam pod razdelkom »Overview« aplikacija prikaže stanje le teh – ECO (away) način, trenutna temperatura prostora, želena temperatura prostora in če je termostat vključen. Če je termostat na voljo (v bližini vašega povezanega brezžičnega omrežja) lahko pritisnete na ime termostata in preidete v pregled termostata.
  • Page 27 Nastavitev programov lahko izvajate, ko pritisnete na pregledu na tipko »PROGRAM«. Ta vam odpre meni, ki ga vidite na levi. Urnik ogrevanja je lahko vključen ali izključen (1 – podrsate). Sedaj nastavljate urnike ogrevanja (2) za izbran oz. izbrane dneve, ki jih označite na točki 3.
  • Page 28 EN | User manual Wireless Thermostat SAS922WHL-7W-S-WIFI Thermostat Saswell SAS922WHL-7W-S-WIFI is a wired thermostat for managing of heating systems. What’s special about this thermostat is that it is controlled via application through your smart phone. All temperature settings and the regulation itself is easily controlled via the app or in some cases via the thermostat.
  • Page 29 Declaration of conformity has been issued for the product. This and other documentation is available on the website www.sen-controls.eu. The manufacturer of the product is SASWELL CONTROLS (HONGKONG) LTD. Importer and distributor in Slovenia is Sen Controls d.o.o., Belokranjska cesta 29, 8340 Črnomelj, Slovenia...
  • Page 30 Features Specifications • Power supply: AC 100-240V 50/60Hz Large 4” (10,16cm) LCD screen with touch Temperature set range: from 5°C to 35°C screen buttons • Floor sensor set range: Highly accurate room temperature sensor with from 5°C to 70°C accuracy of ± 0.1°C •...
  • Page 31 Thermostat description Buttons On / Off button (short press will turn on or turn off the device); Confirmation button Time set button Settings / menu button Change value – increase Change value - decrease...
  • Page 32 Display Time / Temperature / Setting Day, Days of the week Heating programs Main display (temperature, settings, …) Underfloor sensor symbol Editing settings mode Thermostat is currently using Heating program schedule or is in Heating program schedule editing mode Manual temporary / permanent temperature Thermostat has antifreeze mode active Heating is on Thermostat is in gateway mode WIFI...
  • Page 33 Installation Wall mount (on wall, dose – socket) First, remove the back of the thermostat. Do that by using a straight screwdriver and carefully rise the front cover from the bottom up. While doing that you will notice a small flex cable attached to the back and the front of the case.
  • Page 34 Now follows the installation of the back part into the wall socket. For help use the picture below. Two screws are attached for easier installation. Be careful to install the back part the right orientation as the small “tongue” part on the bottom should be looking towards the floor.
  • Page 35 Possible error codes Below is a description of possible error codes, which might show during the thermostat use. Error code Description Err.2 Underfloor heating sensor is not installed. Thermostat stops Heating. - Check whether you’ve installed the sensor correctly and the sensor is the correct specifications.
  • Page 36 Using the thermostat – First steps, basics and description of functions, settings The thermostat is very easy to use but it offers many advanced functions. For a quick and easy start, the instructions will be explained in the next pages and we advise that you go through them for even easier use. By default, the thermostat has Heating schedule programs DISABLED.
  • Page 37 Temporary temperature change Temporary temperature change means, that if you currently want to change the temperature which will stay changed until the next Heating program change (if you’re using Heating schedule programs – otherwise, a permanent, constant temperature change is made). For example –...
  • Page 38 Permanent (constant) temperature change Function of permanent temperature change means, that when the function is enabled, the thermostat ignores all of the currently set schedules of Heating programs until manually canceled and uses your manually set temperature. This function is automaticaly turned on when the heating schedule program is disabled in the advanced settings. When the function is enabled, a hand symbol is shown on the display.
  • Page 39 Setting the Heating Schedule Programs The condition for setting the Heating schedule is that the Heating programs are turned on (it is turned off by default) in the advanced settings. Before proceeding, check the advanced thermostat settings. Depending on the set advanced thermostat settings, you can set on how the schedule program works.
  • Page 40 Predefined Heating Schedule Programs tables Below are listed the predefined Heating schedule programs. They are set with default values. Table 1 – 7 days, 6 switches (Set for each day separately) 1-Morning 4-Afternoon 3-Lunch 5-Arrival 2-Work 6-Night Heating ℃ ℃ ℃...
  • Page 41 Advanced thermostat settings The thermostat also has advanced thermostat settings for further customization of the device to your wishes and demands. You can enter the advanced settings by turning off the thermostat. The screen should show OFF. Then hold the middle menu button (button description 3) for 5 seconds. The screen will be turned on and the display will show CL and a small gear icon will appear on the bottom.
  • Page 42 Step Display Selectable values Description (Shown (in brackets is the factory below, near display default value) the gear icon) From 5 to 20 (5) Minimum option of setting the heating temperature in degrees °C. With this option, you can limit the heating temperature that can be set using the thermostat.
  • Page 43 Step Display Selectable values Description (Shown (in brackets is the factory below, near display default value) the gear icon) On / Off (Off) Smart adaption. If you have this function enabled (On), the thermostat will start to heat before the next heating program schedule will start and with that it will achieve a more comfort way of heating.
  • Page 44 The thermostat must be turned ON and now hold the on/off button for 5 seconds. Symbol for WIFI should disappear and AP mode symbol should be turned on. The thermostat automatically turn on the WIFI mode when you connect the thermostat with your home wireless network and the Saswell app.
  • Page 45 »DIRECT« button. Click on it and the application will start looking for nearby Saswell thermostats. All of nearby thermostats, that are in AP mode will be seen and listed. Select the one that you wish to connect by pressing on his SSID* name (thermostats SSID is also printed on the case of the thermostat starting with »THERMOSTAT-»...
  • Page 46 WIFI settings. Find the SSID* of the thermostat and click on it (SSID starts with »THERMOSTAT-»). Now return to the Saswell app. Now, you should able to see the current room temperature and set the desired heating temperature via app.
  • Page 47 Using the App – Creating a new Saswell account (registration) To save all of your thermostats and be able to set your heating schedule programs, you have to create a new Saswell account if you don't have one yet. You can do this easy and anonymous by: Open the app.
  • Page 48 Using the App – Adding a new thermostat Before adding a new thermostat to your account, you have to make sure that the thermostat is in AP mode. If not, turn it to AP mode using the instructions on previous pages. Now, open the app and login using your login information.
  • Page 49 After selecting the thermostat, you have to select the gateway to connect your thermostat to. The gateway is the name of SSID of your home wireless network. Select the one that is the closest to your Saswell thermostat to ensure connection quality. If your home wireless router is too far away, use a Wi-Fi extender or move the thermostat or router closer.
  • Page 50 If the thermostat is successfully added, you should be able to see it under Overview windows near all of your other added thermostat, if there are any. Each thermostat is named like it’s SSID, which is also visible on the thermostats housing (“Thermostat-…”). You’ve successfully added your new Saswell thermostat to the Saswell app.
  • Page 51 Using the App – Renaming and deleting the thermostat All of the newly added thermostats have generic and pre-set names. If you’d like to organize the thermostats in your home, you can easily rename each one by your preferences or remove one if you wish to re-add or just remove it from your account. You can do this by pressing on the thermostats name for a few seconds and a popup window should appear, asking for your choice to remove or rename the thermostat.
  • Page 52 Using the App – Setting heating schedule programs, temperature and status After you’ve added a thermostat to your app, you can see it under Overview when you login to the app. Under overview you can see a short status of all thermostats – ECO (away) mode active or not, current room temperature, current set temperature and if the thermostat is turned off.
  • Page 53 Heating schedule programs can be set by pressing on the button “PROGRAM”. This opens a new menu, which you can see on the left side. The heating schedule program can be turned on or off by sliding on top right button (1). Now you’re setting the heating schedule for (2) selected day or days, that you can mark on point 3.
