TOPP C40S Original Instructions Manual

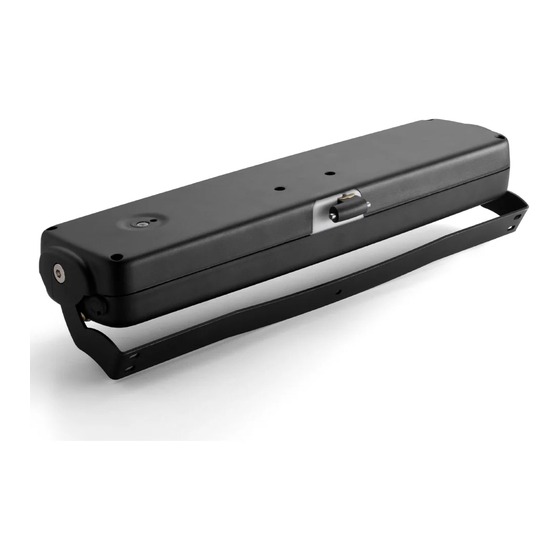

Chain actuator for window automation
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
original instructions
INSTALLATION AND USE INSTRUCTIONS
CHAIN ACTUATOR FOR
C40S
WINDOW AUTOMATION
PATENTED
COD. 0P5321
VER.0.0
REV.03.16
BEFORE INSTALLING AND USING THE ACTUATOR, IT IS
COMPULSORY FOR THE INSTALLER AND THE USER TO READ
AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS.
THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR
AND MUST BE PRESERVED FOR FUTURE REFERENCE
UNTIL DEMOLITION OF THE SAME.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C40S and is the answer not in the manual?

Questions and answers

Related Manuals for TOPP C40S

Summary of Contents for TOPP C40S

  • Page 1 INSTALLATION AND USE INSTRUCTIONS CHAIN ACTUATOR FOR C40S WINDOW AUTOMATION PATENTED COD. 0P5321 VER.0.0 REV.03.16 BEFORE INSTALLING AND USING THE ACTUATOR, IT IS COMPULSORY FOR THE INSTALLER AND THE USER TO READ AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS.
  • Page 3 C40S INDEX 1- EC DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY ........................page 04 2- GENERAL REMARKS 2.1- General instructions..................page 05 2.2- Installer and user ....................page 05 2.3- Technical assistance..................page 05 2.4- Reserved rights ....................page 06 2.5- Description of personnel...................page 06 3- TECHNICAL DESCRIPTION 3.1- Rating plate and "CE"...
  • Page 4 36066 Sandrigo (VI) Italia herewith declares that the person authorised to compile the technical file is Name: Bettiati Roberto - Topp S.r.l. Address: via Galvani,59 36066 Sandrigo (VI) that to the partly completed machinery CHAIN ACTUATOR FOR WINDOW AUTOMATION Type:...

  • Page 5: General Remarks

    C40S GENERAL REMARKS -2 2.1- GENERAL INSTRUCTIONS BEFORE INSTALLING AND USING THE ACTUATOR, IT IS COMPULSORY THAT THE INSTALLER AND THE USER CAREFULLY READ AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS. THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR AND MUST COMPULSORILY BE PRESERVED FOR FUTURE REFERENCE.

  • Page 6: Reserved Rights

    2- GENERAL REMARKS C40S 2.4- RESERVED RIGHTS The reserved rights on this manual "Installation and use instructions" remain property of the Manufacturer. Each information herein contained (text, drawings, diagrams, etc.) is reserved. None part of this manual can be reproduced and disclosed (totally or partially) by any reproduction means (photocopies, microfilms or other) without written authorization of the Manufacturer.

  • Page 7: Rating Plate And "Ce" Marking

    • type of service S (min) • idle translation speed (mm/s) • protection degree (IP) • "CE" marking • symbol of WEEE Directive 2002/96/CE • symbol of double insulation (only for mod. C40S/230V) • serial number INSTALLATION AND USE ISTRUCTIONS...

  • Page 8: Technical Description

    3- TECHNICAL DESCRIPTION C40S 3.2- DENOMINATION OF THE COMPONENTS AND DIMENSIONS Fig. 1 Dimensions in mm LEGEND: 1) Quick coupling 2) Slot side indicator 3) Chain end 4) Br acket for bottom hung opening 5) Connection bracket to the frame...

  • Page 9: Technical Data

    24 V 0,18 A Absorbed current Absorbed power with load 24 W 24 W Thrust load actuator [N] C40S / 230V C40S / 24V Maximum applicable thrust load Stroke [mm] Maximum applicable tractive load 400 N 300 N Idle translation speed...

  • Page 10: Destination Of Use

    The C40S chain actuator is mounted when you need two or more attachment points because the window is particularly heavy or wide and only one actuator would not allow perfect closure of the window.

  • Page 11: Use Limits

    C40S TECHNICAL DESCRIPTION -3 3.6- USE LIMITS The actuator has been designed and manufactured exclusively for the destination of use given in par. 3.5, therefore, any other type of use is strictly forbidden in order to assure in any moment the safety of the installer and of the user, as well as the efficiency of the actuator itself.
  • Page 12 3- TECHNICAL DESCRIPTION C40S Fig. 4 INSTALLATION AND USE ISTRUCTIONS...
  • Page 13 The adopted protection measures are the following: 1) Insulation of live parts by means of a plastic material body; 2) Enclosure with suitable protection degree; 3) Only for Mod. C40S/230 V equipped with double insulation: Protection of passive INSTALLATION AND USE ISTRUCTIONS...

  • Page 14: Safety Plates

    4- SAFETY C40S type given by the use of components with double insulation, also called components of class II or with equivalent insulation. (It is forbidden to connect the actuators equipped with double insulation to the earth plant. 4.3- SAFETY PLATES IT IS FORBIDDEN TO REMOVE, MOVE, SPOIL OR IN ANYWAY REDUCE THE VISIBILITY OF THE SAFETY PLATES.

  • Page 15: Installation

    C40S INSTALLATION -5 5.1- GENERAL INSTRUCTIONS THE ACTUATOR INSTALLATION CAN BE PERFORMED EXCLUSIVELY BY COMPETENT AND QUALIFIED TECHNICAL PERSONNEL SATISFYING THE PROFESSIONAL AND TECHNICAL REQUIREMENTS FORESEEN BY THE LAWS IN FORCE IN THE COUNTRY OF INSTALLATION. THE ACTUATOR PERFORMANCE MUST BE SUFFICIENT TO ASSURE THE CORRECT MOVEMENT OF THE WINDOW.
  • Page 16 5- INSTALLATION C40S Fig. 6a TOP HUNG OPENING WINDOW MIN STROKE (mm) POS. HEIGHT (mm) DISTANCE "D" VARIABLE BETWEEN 0 TO 50 mm WING 69,2 117,2 FRAME OVERLAPPED PART “D” MUST BE LOWER 50mm THE FASTENING POSITION HAS TO BE VERIFIED AND EVALUATED ACCORDING TO THE PROFILE/LENGTH OF THE WING/FRAME AND OF THE WINDOW LIGHT.
  • Page 17 C40S INSTALLATION -5 Fig. 6b BOTTOM HUNG OPENING WINDOW MIN STROKE (mm) POS. HEIGHT (mm) 1000 DISTANCE "D" VARIABLE BETWEEN 0 TO 50 mm 128.4 69.2 FRAME OVERLAPPED PART “D” WING MUST BE LOWER 50mm THE FASTENING POSITION HAS TO BE VERIFIED AND EVALUATED ACCORDING TO THE PROFILE/LENGTH OF THE WING/FRAME AND OF THE WINDOW LIGHT.
  • Page 18 5- INSTALLATION C40S 5.2- TOP HUNG WINDOWS Fig. 7 (Fig. 7 and Fig. 13 ÷ 20) 1) Open the package (par. 3.7) and extract the various components; 2) Fig. 13- With a pencil draw the centre line “X” of the window frame;...

  • Page 19: Bottom Hung Windows

    C40S INSTALLATION -5 8) Fig. 19- Connect the actuator to the semi-automatic coupling inserting the chain adjustment end first of all in the left connection point (Ref. 1) and then in the right connection point (Ref. 2); 9) Fig. 20- Using the two supplied screws (Ref. 1) tighten the actuator to the window frame connection bracket in the most suitable position according to the value of the overlapped part “D”...
  • Page 20 5- INSTALLATION C40S 6) Fig. 26- Adjust the opening stroke by the switch (Ref. 1) located on the right side of the actuator according to the opening of the wing and tighten the chain end adjustment screw; CAUTION: VERIFY THAT THE SELECTED STROKE IS SOME CENTIMETRES LOWER THAN THE STROKE EFFECTIVELY ALLOWED BY MECHANICAL LOCKS, COMPASS LIMIT DEVICES OR WING OPENING HINDRANCES.
  • Page 21 INTO A SUITABLE AND APPROPRIATE JUNCTION BOX. THE COMMUNICATION CABLES HAVE TO BE PLACED INTO THE SAME JUNCTION BOX WHERE ELECTRICAL CABLES THE CONNECTION OF MODEL C40S/24V HAS TO BE CARRIED OUT WITH VERY LOW VOLTAGE SAFETY FEEDER PROTECTED AGAINST SHORT CIRCUIT.

  • Page 22: Control Devices

    To these control units, it is possible to connect the rain sensors (RDC - 12V) , the wind sensor (RW) and the brightness sensor; THE EVENTUALLY USED UNITS MUST SUPPLY A VOLTAGE TO C40S FOR MAX. 120 SECONDS. INSTALLATION AND USE ISTRUCTIONS...

  • Page 23: Emergency Procedures

    C40S INSTALLATION -5 5.6- EMERGENCY PROCEDURES Should it be necessary to open the window manually due to power supply failure or mechanism block, follow these instructions: BEFORE PERFORMING ANY TYPE OF INTERVENTION ON THE ACTUATOR AND ON THE WINDOW, IT IS COMPULSORY TO DISCONNECT THE POWER SUPPLY OF THE ACTUATOR AND TO PUT ON "0"...

  • Page 24: Use And Operation

    CARRYING OUT PERIODICAL MAINTENANCE ON IT, AS INDICATED IN PAR. 7.1 OF THIS MANUAL. TOPP INFORMS THE USER THAT, IN ACCORDANCE WITH ART. 8 OF MINISTERIAL DECREE NO. 38 OF 22.1.2008, THE OWNER OF THE SYSTEM IS RESPONSIBLE FOR ADOPTING ALL NECESSARY MEASURES TO MAINTAIN THE SAFETY FEATURES SET...

  • Page 25: Smart Reset System (Sai)

    The Smart Reset System (SAI) is integrated into the software of the electronic control board of C40S actuator. This system adjusts the closure of the window in a highly efficient fashion so as not to damage the window in any way. If you were to put an obstacle in the way while the window is closing, the SAI would block the actuator(s) attached to the window to avoid damaging it.

  • Page 26: Maintenance

    The maintenance activity may be carried out either by TOPP, in accordance with a specific agreement made with the user, or by the installation technician or by other competent and qualified technical personnel in possession of all legal requirements.
  • Page 27 C40S FIGURES Fig. 12 DOME ASSEMBLY BRACKET WING FRAME MAX. OVERLAPPED WINDOW MUST BE LOWER 50mm INSTALLATION AND USE ISTRUCTIONS...
  • Page 28 INSTALLATION ON TOP HUNG WINDOWS C40S Fig. 13 Fig. 14 Fig. 15 Fig. 16 Fig. 17 Fig. 18 CAUTION: both must have the same stroke in tandem installations INSTALLATION AND USE ISTRUCTIONS...
  • Page 29 C40S INSTALLATION ON TOP HUNG WINDOWS Fig. 19 Fig. 20 INSTALLATION AND USE ISTRUCTIONS...
  • Page 30 INSTALLATION ON BOTTOM HUNG WINDOWS C40S Fig. 21 Fig. 22 Fig. 23 Fig. 24 Fig. 25 Fig. 26 CAUTION: both must have the same stroke in tandem installations INSTALLATION AND USE ISTRUCTIONS...
  • Page 31 C40S INSTALLATION ON BOTTOM HUNG WINDOWS Fig. 27 Fig. 28 Frame INSTALLATION AND USE ISTRUCTIONS...
  • Page 32 DRAWINGS FOR INSTALLATION C40S Wiring diagram INSTALLATION AND USE ISTRUCTIONS...
  • Page 33 C40S REMARKS INSTALLATION AND USE ISTRUCTIONS...
  • Page 34 REMARKS C40S INSTALLATION AND USE ISTRUCTIONS...
  • Page 35 C40S REMARKS INSTALLATION AND USE ISTRUCTIONS...
  • Page 36 TOPP S.r.l. Società a Socio Unico soggetta a direzione e coordinamento di 2 Plus 3 Holding S.p.a. Via Galvani, 59 - 36066 Sandrigo (VI) - Italia Tel. +39 0444 656700 - Fax +39 0444 656701 Info@topp.it - www.topp.it...
