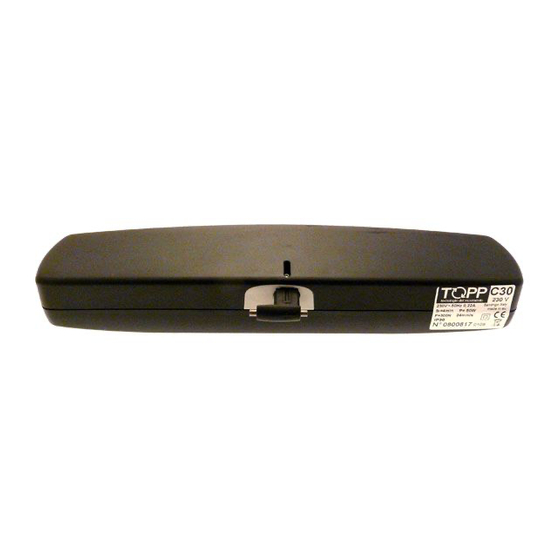

Chain actuator for window automation
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION AND USE INSTRUCTIONS
PATENTED
BEFORE INSTALLING AND USING THE ACTUATOR, IT IS
COMPULSORY FOR THE INSTALLER AND THE USER TO READ
AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS.
THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR
AND MUST BE PRESERVED FOR FUTURE REFERENCE
CHAIN ACTUATOR FOR
WINDOW AUTOMATION
UNTIL DEMOLITION OF THE SAME.
original instructions
C30S
P/N 0P5311
VER.0.0
REV.02.18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C30S/230V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TOPP C30S/230V

Summary of Contents for TOPP C30S/230V

  • Page 1 original instructions INSTALLATION AND USE INSTRUCTIONS CHAIN ACTUATOR FOR C30S WINDOW AUTOMATION PATENTED P/N 0P5311 VER.0.0 REV.02.18 BEFORE INSTALLING AND USING THE ACTUATOR, IT IS COMPULSORY FOR THE INSTALLER AND THE USER TO READ AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS. THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR AND MUST BE PRESERVED FOR FUTURE REFERENCE UNTIL DEMOLITION OF THE SAME.

  • Page 3: Table Of Contents

    C30S INDEX 1- EC DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY ........................page 04 2- GENERAL REMARKS 2.1- General instructions..................page 05 2.2- Installer and user ....................page 05 2.3- Technical assistance..................page 05 2.4- Reserved rights ....................page 06 2.5- Description of personnel...................page 06 3- TECHNICAL DESCRIPTION 3.1- Rating plate and "CE"...
  • Page 4 36066 Sandrigo (VI) Italia herewith declares that the person authorised to compile the technical file is Name: Bettiati Roberto - Topp S.r.l. Address: via Galvani,59 36066 Sandrigo (VI) and that to the partly completed machinery CHAIN ACTUATOR FOR WINDOW AUTOMATION...

  • Page 5: General Instructions

    C30S GENERAL REMARKS -2 2.1- GENERAL INSTRUCTIONS BEFORE INSTALLING AND USING THE ACTUATOR, IT IS COMPULSORY THAT THE INSTALLER AND THE USER CAREFULLY READ AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS. THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR AND MUST COMPULSORILY BE PRESERVED FOR FUTURE REFERENCE.

  • Page 6: 2- General Remarks

    2- GENERAL REMARKS C30S 2.4- RESERVED RIGHTS The reserved rights on this manual "Installation and use instructions" remain property of the Manufacturer. Each information herein contained (text, drawings, diagrams, etc.) is reserved. None part of this manual can be reproduced and disclosed (totally or partially) by any reproduction means (photocopies, microfilms or other) without written authorization of the Manufacturer.

  • Page 7: Rating Plate And "Ce" Marking

    • absorbed electric power P (W) • thrust and tractive force F (N) • idle translation speed (mm/s) • protection degree (IP) • symbol of double insulation (only for mod. C30S/230V) • "CE" marking • symbol of “WEEE” Directive 2002/96/CE • serial number...

  • Page 8: 3- Technical Description

    3- TECHNICAL DESCRIPTION C30S 3.2- DENOMINATION OF THE COMPONENTS AND DIMENSIONS Fig. 1 Dimensions in mm LEGEND: 1) Quick coupling 2) Slot side indicator 3) Bracket for bottom hung opening 4) Opening stroke adjustment switch I= 200 mm; II= 380 mm 5) Connection bracket to the frame 6) Actuator 7) Chain adjustment end...

  • Page 9: Technical Data

    C30S TECHNICAL DESCRIPTION -3 3.3- TECHNICAL DATA Tab. 1 contains the technical data characterising the actuators. Tab. 1 C30S/230V C30S/24V POWER SUPPLY VOLTAGE 230 V ~ 50 Hz 24 V ± 10% ABSORBED CURRENT 0,15 A 0,55 A ABSORBED POWER WITH LOAD...

  • Page 10: Destination Of Use

    MEANS OF A CONTROL DEVICE, THE OPENING AND CLOSING OF TOP HUNG WINDOWS, BOTTOM HUNG WINDOWS, PIVOT WINDOWS, AND SKYLIGHTS. The C30S Chain actuator is equipped with the latest TOPP system for the coordinated synchronization of the chain movement. The electronic speed control is fully automatic and requires no external control unit;...

  • Page 11: Use Limits

    C30S TECHNICAL DESCRIPTION -3 3.6- USE LIMITS The actuator has been designed and manufactured exclusively for the destination of use given in par. 3.5, therefore, any other type of use is strictly forbidden in order to assure in any moment the safety of the installer and of the user, as well as the efficiency of the actuator itself.
  • Page 12 3- TECHNICAL DESCRIPTION C30S Fig. 4 INSTALLATION AND USE ISTRUCTIONS...

  • Page 13: General Instructions

    C30S SAFETY -4 4.1- GENERAL INSTRUCTIONS OPERATORS MUST BE INFORMED OF ACCIDENT RISKS, SAFETY DEVICES AND THE GENERAL ACCIDENT PREVENTION REGULATIONS ESTABLISHED BY INTERNATIONAL DIRECTIVES AND BY THE LAW IN FORCE IN THE COUNTRY OF U S E. A L L O P E R ATO R S M U S T S T R I C T LY C O M P LY W I T H T H E A C C I D E N T PREVENTION REGULATIONS IN FORCE IN THE COUNTRY OF USE.

  • Page 14: Safety Plates

    1) Insulation of live parts by means of a plastic material body; 2) Enclosure with suitable protection degree; 3) Only for the mod. C30S/230V provided with protection against electric shocks: Protection of passive type given by the use of components with double insulation, also called components of class II or with equivalent insulation.

  • Page 15: General Instructions

    C30S INSTALLATION -5 5.1- GENERAL INSTRUCTIONS THE ACTUATOR INSTALLATION CAN BE PERFORMED EXCLUSIVELY BY COMPETENT AND QUALIFIED TECHNICAL PERSONNEL SATISFYING THE PROFESSIONAL AND TECHNICAL REQUIREMENTS FORESEEN BY THE LAWS IN FORCE IN THE COUNTRY OF INSTALLATION. THE ACTUATOR PERFORMANCE MUST BE SUFFICIENT TO ASSURE THE CORRECT MOVEMENT OF THE WINDOW.
  • Page 16 5- INSTALLATION C30S Fig. 6a Dimensions in mm THE POSITIONS 1 - 2 - 3 - 0 ARE TO BE USED ACCORDING TO THE OVERLAPPED PART OF THE WINDOW OVERLAPPED ACTUATOR TYPE OF PART POSITION APPLICATION ÷ 15 mm ÷ 22,5 mm TOP HUNG 22,5...
  • Page 17 C30S INSTALLATION -5 Fig. 6b Dimensions in mm THE POSITIONS 1 - 2 - 3 - 0 ARE TO BE USED ACCORDING TO THE OVERLAPPED PART OF THE WINDOW 0 ÷ 15 mm TOP HUNG (see Fig.28) 15 ÷ 50 mm THE DIMENSION IS INCLUDED BETWEEN 96,6 mm AND 119,1 mm.

  • Page 18: Top Hung Windows

    5- INSTALLATION C30S 5.2- TOP HUNG WINDOWS Fig. 7 (Fig. 7 and Fig. 14 ÷ 21) 1) Open the package (par. 3.7) and extract the various components; 2) Fig. 14- With a pencil draw the centre line “X” of the window frame;...

  • Page 19: Bottom Hung Windows

    C30S INSTALLATION -5 9) Fig. 20- Connect the actuator to the semi-automatic coupling inserting the chain adjustment end first of all in the left connection point (Ref. 1) and then in the right connection point (Ref. 2); 10) Fig. 21- Using the two supplied screws (Ref. 1) tighten the actuator to the window frame connection bracket in the most suitable position according to the value of the overlapped part “D”...
  • Page 20 5- INSTALLATION C30S and the bottom hung opening bracket; 6) Fig. 27- Adjust the opening stroke by the switch (Ref. 1) located on the right side of the actuator according to the opening of the wing and tighten the chain end adjustment screw;...

  • Page 21: Control Devices

    2) OPTIONAL: CONTROL AND FEEDING UNIT: TOPP Microprocessor control units (e.g.: Mod. TF44, etc.) controlling the single actuator (C30S/230V) or more than one actuator simultaneously (C30S/230V) or by means of one or more manual pushbuttons, an infrared remote control or a 433 Mhz radio control.

  • Page 22: Emergency Procedures

    5- INSTALLATION C30S THE EVENTUALLY USED UNITS MUST SUPPLY A VOLTAGE TO C30S FOR MAX. 120 s. 5.6- EMERGENCY PROCEDURES Should it be necessary to open the window manually due to power supply failure or mechanism block, follow these instructions: BEFORE PERFORMING ANY TYPE OF INTERVENTION ON THE ACTUATOR AND ON THE WINDOW, IT IS COMPULSORY TO DISCONNECT THE POWER SUPPLY OF THE ACTUATOR AND TO PUT ON "0"...

  • Page 23: Use Of The Actuator

    C30S INSTALLATION -5 Fig. 11 Fig. 10 C30S USE AND OPERATION -6 6.1- USE OF THE ACTUATOR THE ACTUATOR CAN BE USED ONLY BY A USER ACTING IN COMPLIANCE WITH THE INSTRUCTIONS GIVEN IN THIS MANUAL AND/OR IN THE MANUAL OF THE ACTUATOR COMMAND DEVICE (e.g.: WIND AND RAIN CONTROL UNIT).

  • Page 24: 6- Use And Operation

    RECOMMEND CARRYING OUT PERIODICAL MAINTENANCE ON IT, AS INDICATED IN PAR. 7.1 OF THIS MANUAL. TOPP INFORMS THE USER THAT, IN ACCORDANCE WITH ART. 8 OF MINISTERIAL DECREE NO. 38 OF 22.1.2008, THE OWNER OF THE SYSTEM IS RESPONSIBLE FOR...

  • Page 25: General Instructions

    (brackets and screws) are tight, the window frame is not deformed and the seals are tight, and check the cables and connectors. The maintenance activity may be carried out either by TOPP, in accordance with a specific agreement made with the user, or by the installation technician or by other competent and qualified technical personnel in possession of all legal requirements.

  • Page 26: 9- Spare Parts And Accessories Upon Request

    9- SPARE PARTS AND ACCESSORIES UPON REQUEST C30S Fig. 13 DOME ASSEMBLY BRACKET WING FRAME OVERLAPPED PART “D” MUST BE LOWER 50mm FOR A CORRECT OPERATION OF THE ACTUATOR, “D” MUST HAVE A VALUE INCLUDED BETWEEN 0 mm AND 50 mm. INSTALLATION AND USE ISTRUCTIONS...
  • Page 27 C30S INSTALLATION ON TOP HUNG WINDOWS Fig. 14 Fig. 15 Fig. 16 Fig. 17 Fig. 18 Fig. 19 I= 200 mm II= 380 mm CAUTION: both must have the same stroke in tandem installations INSTALLATION AND USE ISTRUCTIONS...
  • Page 28 INSTALLATION ON TOP HUNG WINDOWS C30S Fig. 20 Fig. 21 INSTALLATION AND USE ISTRUCTIONS...
  • Page 29 C30S INSTALLATION ON BOTTOM HUNG WINDOWS Fig. 22 Fig. 23 Fig. 24 Fig. 25 Fig. 26 Fig. 27 I= 200 mm II= 380 mm CAUTION: both must have the same stroke in tandem installations INSTALLATION AND USE ISTRUCTIONS...
  • Page 30 INSTALLATION ON BOTTOM HUNG WINDOWS C30S Fig. 29 Fig. 28 DIMENSION "D" VARIABLE BETWEEN 0 TO 50 mm Frame Wing INSTALLATION AND USE ISTRUCTIONS...
  • Page 31 C30S DRAWINGS FOR INSTALLATION Wiring diagram INSTALLATION AND USE ISTRUCTIONS...
  • Page 32 TOPP S.r.l. Società a Socio Unico soggetta a direzione e coordinamento di 2 Plus 3 Holding S.p.a. Via Galvani, 59 - 36066 Sandrigo (VI) - Italia Tel. +39 0444 656700 - Fax +39 0444 656701 Info@topp.it - www.topp.it...

This manual is also suitable for:

C30s/24v
