TOPP C160 RWA Installation And Use Instructions Manual

Chain actuator for window automation, dual push points chain
Hide thumbs Also See for C160 RWA:

Advertisement

Quick Links

Download this manual
EN
INSTALLATION AND USE INSTRUCTIONS
CHAIN ACTUATOR FOR
C160 RWA
WINDOW AUTOMATION
Dual push points chain
COD. 0P5376
VER. 00
REV.11.20
BEFORE INSTALLING AND USING THE ACTUATOR, IT IS
COMPULSORY FOR THE INSTALLER AND THE USER TO READ
AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS.
THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR
AND MUST BE PRESERVED FOR FUTURE REFERENCE
UNTIL DEMOLITION OF THE SAME.

Advertisement

loading
Need help?

Need help?

Do you have a question about the C160 RWA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TOPP C160 RWA

Summary of Contents for TOPP C160 RWA

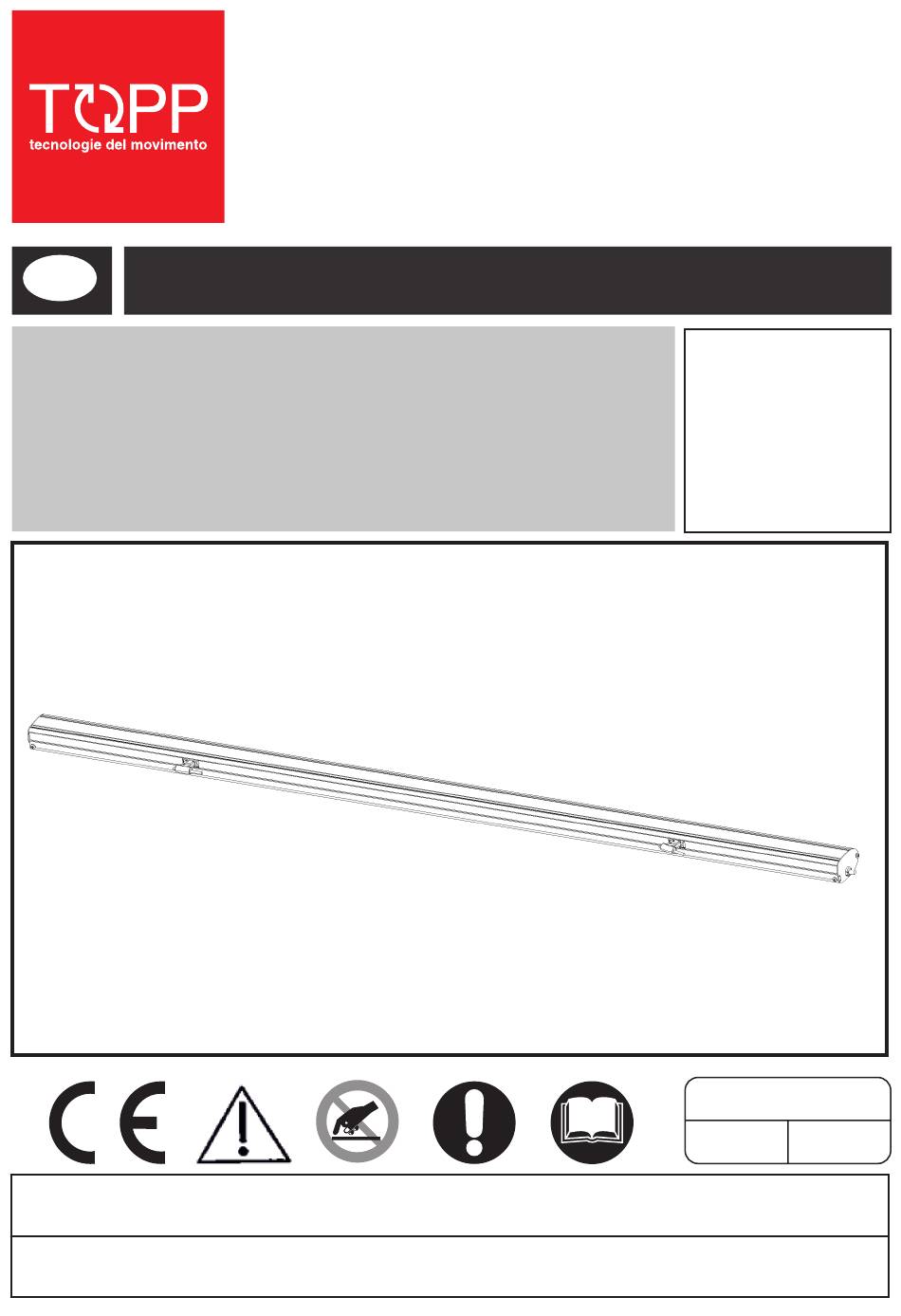

  • Page 1 INSTALLATION AND USE INSTRUCTIONS CHAIN ACTUATOR FOR C160 RWA WINDOW AUTOMATION Dual push points chain COD. 0P5376 VER. 00 REV.11.20 BEFORE INSTALLING AND USING THE ACTUATOR, IT IS COMPULSORY FOR THE INSTALLER AND THE USER TO READ AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS.
  • Page 3 C160 INDEX EC DECLARATION GENERAL REMARKS AND SAFETY OF INCORPORATION PAG 4 WARNINGS PAG 5 TECHNICAL DESCRIPTION COMPONENTS TECHNICAL DATA PAG 7 PAG 9 APPLICATIONS TOP HUNG outward opening PAG 11 application PAG 14 BOTTOM HUNG outward opening BOTTOM HUNG inward opening application PAG 20 application PAG 24 VERTICAL outward opening application...
  • Page 4 C160 EC DECLARATION OF INCORPORATION INSTALLATION AND USE INSTRUCTIONS...
  • Page 5 C160 GENERAL REMARKS AND SAFETY WARNINGS GENERAL INSTRUCTIONS • Before installing and using the actuator, it is compulsory that the installer and the user carefully read and understand this manual in all its parts. • This manual is integral part of the actuator and must compulsorily be preserved for future reference. •...
  • Page 6 This maintenance activity may be carried out either by TOPP, in accordance with a specifi c agreement made with the user, or by the installation technician or by other competent and qualifi ed technical personnel in possession of all legal requirements.

  • Page 7: Technical Description

    • Topp informs the user that, in accordance with art. 8 of ministerial decree no. 38 of 22.1.2008, the owner of the system is responsible for adopting all necessary measures to maintain the safety features set out in applicable legislation, observing the instructions for maintenance and use provided by the manufacturer of the device and by the company that carried out the installation.
  • Page 8 C160 3- TECHNICAL DESCRIPTION FORMULAS FOR THE CALCULATION OF THRUST AND TRACTIVE FORCE DESTINATION OF USE • The actuator has been designed and manufactured to perform, by means of a command device, the opening and closing of top hinged windows, bottom hinged windows, vertical and side hinged windows. •...
  • Page 9 C160 TECHNICAL DESCRIPTION -3 COMPONENTS INSTALLATION AND USE INSTRUCTIONS...
  • Page 10 C160 3- TECHNICAL DESCRIPTION COMPONENTS DIMENSIONING INSTALLATION AND USE INSTRUCTIONS...
  • Page 11 C160 TECHNICAL DESCRIPTION -3 Min. window Applications Window Brackets stroke height H(mm)(*) SC 700 SD 400 TOP HUNG out- S1,S2 SE 500 ward opening SC,SD,SE application S1,S2 BOTTOM HUNG outward ope- ning application BOTTOM HUNG inward opening application 1000 VERTICAL outward ope- ning application SIDE HUNG...

  • Page 12: Installation

    2) OPTIONAL: CONTROL AND FEEDING UNIT: TOPP microprocessor control units (e.g.: Mod. TF, etc.) controlling the single actuator or more than one actuator simultaneously by means of one or more manual pushbuttons, an infrared remote control or a 433 Mhz radio control. To these control units, it is possible to connect rain sensors (RDC - 12V), wind sensor (RW) and brightness sensor.
  • Page 13 S3- Bottom hung – inward opening: with a 3 mm Allen key and 7 mm hex wrench unscrew the nut , remove the pin until the chain end is released. C160 RWA - stroke 600 - RESTORATION OF THE STROKE The Smart Reset System is integrated into the software of the electronic control board of actuator. This system adjusts the closure of the window in a highly effi...
  • Page 14 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE Stroke 360 TOP HUNG outward opening application Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 15 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various components; 1)2)With a pencil draw the centre line X of the window frame. Measure the distance L between the two chain terminals of the actua- tor and mark it on the window, symmetrically to the midline X marked previously, trace axis X1 and X2;...
  • Page 16 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE TOP HUNG Stroke 360 outward opening application Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 17 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various components; 1)2)With a pencil draw the centre line X of the window frame. Measure the distance L between the two chain terminals of the actua- tor and mark it on the window, symmetrically to the midline X marked previously, trace axis X1 and X2;...
  • Page 18 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE Stroke 600 TOP HUNG outward opening application Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 19 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various components; 1)With a pencil draw the centre line X of the window frame. Measure the distance D betwe- en the two chain terminals of the actuator and mark it on the window, symmetrically to the mi- dline X marked previously, trace axis X1 and 2)Trace axis X1’...
  • Page 20 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE BOTTOM HUNG Stroke 360 outward opening application Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 21 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various components; 1)2)With a pencil draw the centre line X of the window frame. Measure the distance L between the two chain terminals of the actua- tor and mark it on the window, symmetrically to the midline X marked previously, trace axis X1 and X2;...
  • Page 22 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE Stroke 600 BOTTOM HUNG outward opening application Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 23 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various components; 1)With a pencil draw the centre line X of the window frame. Measure the distance D betwe- en the two chain terminals of the actuator and mark it on the window, symmetrically to the mi- dline X marked previously, trace axis X1 and 2)Trace axis X1’...
  • Page 24 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE BOTTOM HUNG Stroke 360 Inward opening Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 25 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various com- ponents; 1)2)With a pencil draw the centre line Y of the window frame. Measure he distance L between the two chain terminals of the actuator and mark it on the window, symmetrically to the midline Y marked previously, trace axis Y1 and Y2;...
  • Page 26 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE Stroke 600 BOTTOM HUNG Inward opening Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 27 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various com- ponents; 1)With a pencil draw the centre line Y of the win- dow frame. Measure he distance D between the two chain terminals of the actuator and mark it on the window, symmetrically to the midline Y mar- ked previously, trace axis Y1 and Y2;...
  • Page 28 C160 5- INSTALLATION INSTRUCTIONS / FIGURES Stroke 600 VERTICAL outward opening application Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 29 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various com- ponents; 1)With a pencil draw the centre line X of the window frame. Measure the distance D between the two chain terminals of the actuator and mark it on the window, symmetrically to the midline X marked previously, trace axis X1 and X2;...
  • Page 30 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE Stroke 360 ON LEAF inward opening application Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 31 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various com- ponents; 1)2)the window frame. Measure the distance L between the two chain terminals of the actuator and mark it on the window, symmetrically to the midline X marked previously, trace axis X1 and 3)Trace axis X1’...
  • Page 32 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE Stroke 600 ON LEAF inward opening application Double push point INSTALLATION AND USE INSTRUCTIONS...
  • Page 33 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various com- ponents; 1)With a pencil draw the centre line X of the window frame. Measure the distance D between the two chain terminals of the actuator and mark it on the window, symmetrically to the midline X marked previously, trace axis X1 and X2;...
  • Page 34 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE SIDE HUNG SIDE HUNG Stroke 360 outward opening outward opening application application INSTALLATION AND USE INSTRUCTIONS...
  • Page 35 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION AND USE INSTRUCTIONS...
  • Page 36 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE INSTALLATION Open the package and remove the various com- ponents; 1)The window frame. Measure the distance L between the two chain terminals of the actuator and mark it on the window, symmetrically to the midline X marked previously, trace axis X1 and 2)Trace axis X1’...
  • Page 37 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 SIDE HUNG SIDE HUNG Stroke 600 outward opening outward opening application application INSTALLATION AND USE INSTRUCTIONS...
  • Page 38 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE INSTALLATION AND USE INSTRUCTIONS...
  • Page 39 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION Open the package and remove the various com- ponents; 1)With a pencil draw the center line X of the win- dow frame. Measure the distance D between the two chain terminals of the actuator and mark it on the window, symmetrically to the midline X marked previously, trace axis X1 and X2;...
  • Page 40 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE BATTENTE BATTENTE Stroke 600 Apertura verso l’interno DX Apertura verso l’interno SX Doppio punto di spinta Doppio punto di spinta INSTALLATION AND USE INSTRUCTIONS...
  • Page 41 C160 INSTALLATION INSTRUCTIONS / FIGURES -5 INSTALLATION AND USE INSTRUCTIONS...
  • Page 42 C160 5- INSTALLATION INSTRUCTIONS / FIGURESE INSTALLATION Open the package and remove the various com- ponents; 1)With a pencil draw the centre line Y of the win- dow frame. Measure he distance D between the two chain terminals of the actuator and mark it on the window, symmetrically to the midline Y mar- ked previously, trace axis Y1 and Y2;...

  • Page 43: Collegamento Elettrico

    C160 COLLEGAMENTO ELETTRICO - 6 INSTALLATION AND USE INSTRUCTIONS...
  • Page 44 TOPP S.r.l. Società a Socio Unico soggetta a direzione e coordinamento di 2 Plus 3 Holding S.p.a. Via Galvani, 59 - 36066 Sandrigo (VI) - Italia Tel. +39 0444 656700 - Fax +39 0444 656701 Info@topp.it - www.topp.it...
